Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

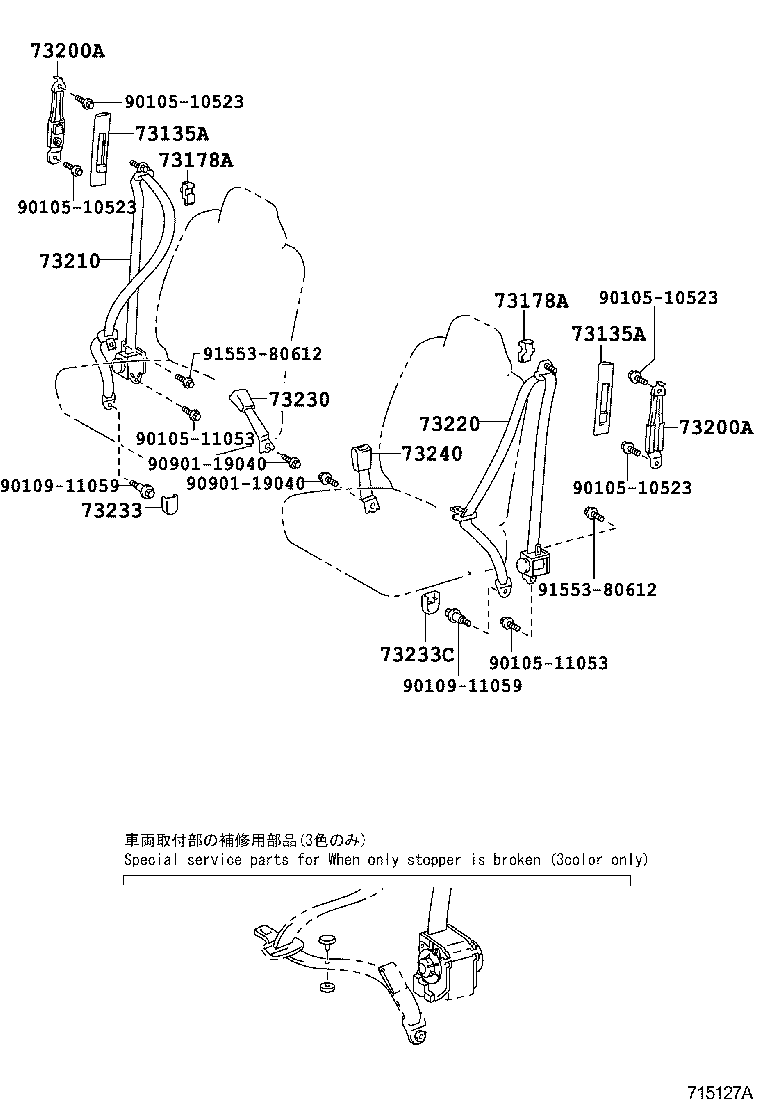

Exploded illustration 715127A 73233C — COVER, LAP BELT OUTER ANCHOR, LH (2 parts) 9010911059 — not listed in this catalogue 73233 — COVER, LAP BELT OUTER ANCHOR (2 parts) 9010911059 — not listed in this catalogue 9010510523 — not listed in this catalogue 9010510523 — not listed in this catalogue 9155380612 — not listed in this catalogue 9155380612 — not listed in this catalogue 9010511053 — not listed in this catalogue 9010511053 — not listed in this catalogue 9090119040 — not listed in this catalogue 9090119040 — not listed in this catalogue 9010510523 — not listed in this catalogue 9010510523 — not listed in this catalogue 73200A — ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR (1 parts) 73210 — BELT ASSY, FRONT SEAT OUTER, RH (4 parts) 73230 — BELT ASSY, FRONT SEAT INNER, RH (3 parts) 73240 — BELT ASSY, FRONT SEAT INNER, LH (3 parts) 73220 — BELT ASSY, FRONT SEAT OUTER, LH (5 parts) 73178A — CAP, SEAT BELT ANCHOR COVER (1 parts) 73135A — COVER, SHOULDER BELT ANCHOR, RH (1 parts) 73200A — ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR (1 parts) 73135A — COVER, SHOULDER BELT ANCHOR, RH (1 parts) 73178A — CAP, SEAT BELT ANCHOR COVER (1 parts)
715127A · 12 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
22 parts on this figure
Part number Description Fitment Price
73135A — Cover, Shoulder Belt Anchor, RH
73135-52020-B2 note Cover, Shoulder Belt Anchor, RH
2007-06 → 2014-07 ended
ZSP110 —
73178A — Cap, Seat Belt Anchor Cover
73178-52020-B2 note Cap, Seat Belt Anchor Cover
2007-06 → 2014-07 ended
ZSP110 —
73200A — Adjuster Assy, Front Shoulder Belt Anchor
73200-52050-B2 note Adjuster Assy, Front Shoulder Belt Anchor
2007-06 → 2014-07 ended
ZSP110 —
73210 — Belt Assy, Front Seat Outer, RH
73210-52670-B0 note Belt Assy, Front Seat Outer, RH
2007-06 → 2010-08 ended
ZSP110 —
73210-52800-B0 note Belt Assy, Front Seat Outer, RH
2010-08 → 2012-08 ended
ZSP110 —
73210-52860-B0 note Belt Assy, Front Seat Outer, RH
2012-08 → 2014-07 ended
ZSP110 —
73210-52870-B0 note Belt Assy, Front Seat Outer, RH
2013-05 → 2013-07 ended
ZSP110 —
73220 — Belt Assy, Front Seat Outer, LH
73220-52710-B0 note Belt Assy, Front Seat Outer, LH
2007-06 → 2010-08 ended
ZSP110 —
73220-52710-B1 note Belt Assy, Front Seat Outer, LH
2010-08 → 2011-08 ended
ZSP110 —
73220-52860-B0 note Belt Assy, Front Seat Outer, LH
2011-08 → 2012-08 ended
ZSP110 —
73220-52870-B0 note Belt Assy, Front Seat Outer, LH
2012-08 → 2014-07 ended
ZSP110 —
73220-52890-B0 note Belt Assy, Front Seat Outer, LH
2013-05 → 2013-07 ended
ZSP110 —
73230 — Belt Assy, Front Seat Inner, RH
73230-52751-B0 note Belt Assy, Front Seat Inner, RH
2007-06 → 2010-08 ended
ZSP110 —
73230-52751-C0 note Belt Assy, Front Seat Inner, RH
2010-08 → 2012-07 ended
ZSP110 —
73230-52752-C0 note Belt Assy, Front Seat Inner, RH
2012-08 → 2014-07 ended
ZSP110 —
73233 — Cover, Lap Belt Outer Anchor
73233-52010-B1 note Cover, Lap Belt Outer Anchor
2007-06 → 2010-08 ended
ZSP110 —
73233-52010-C0 note Cover, Lap Belt Outer Anchor
2010-08 → 2014-07 ended
ZSP110 —
73233C — Cover, Lap Belt Outer Anchor, LH
73233-52010-B1 note Cover, Lap Belt Outer Anchor, LH
2007-06 → 2010-08 ended
ZSP110 —
73233-52010-C0 note Cover, Lap Belt Outer Anchor, LH
2010-08 → 2014-07 ended
ZSP110 —
73240 — Belt Assy, Front Seat Inner, LH
73230-52741-B0 note Belt Assy, Front Seat Inner, LH
2007-06 → 2010-08 ended
ZSP110 —
73230-52741-C0 note Belt Assy, Front Seat Inner, LH
2010-08 → 2012-07 ended
ZSP110 —
73230-52742-C0 note Belt Assy, Front Seat Inner, LH
2012-08 → 2014-07 ended
ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
