Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

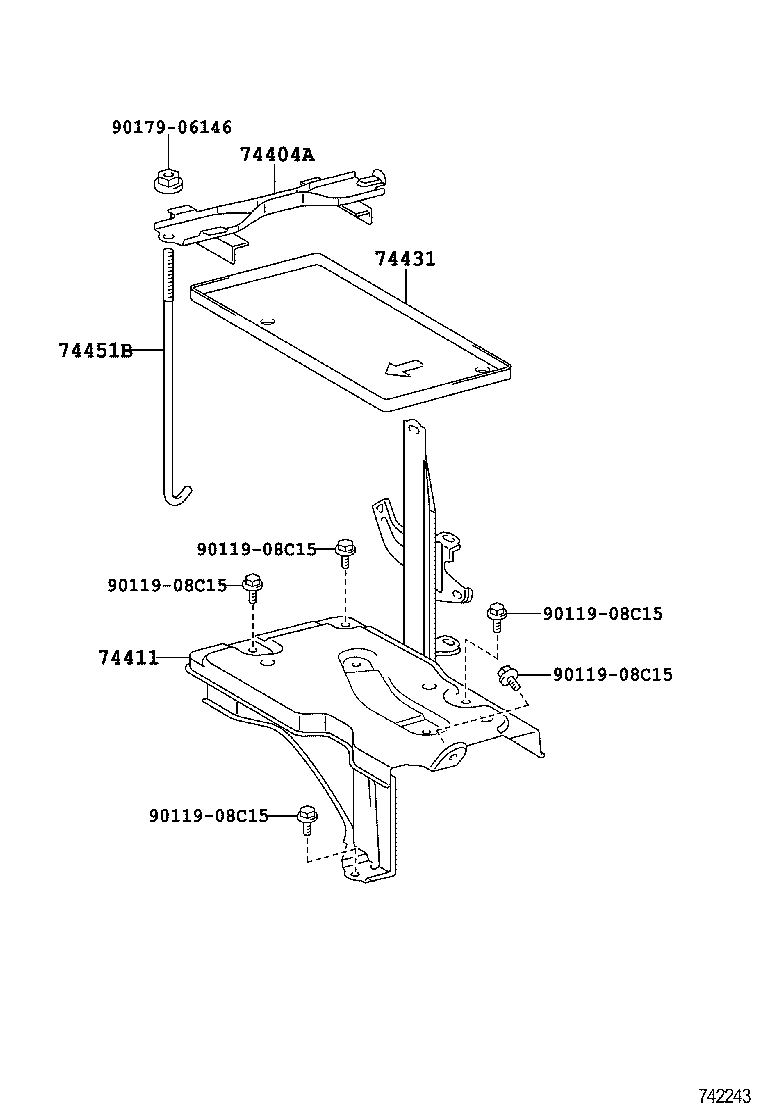

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 74404A — Clamp Sub-assy, Battery | ||||
| 74404-52080 |
Clamp Sub-assy, Battery
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 74411 — Carrier, Battery | ||||
| 74410-52020 |
Carrier, Battery
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 74431 — Tray, Battery | ||||
| 74431-52110 |
Tray, Battery
2007-06 → 2010-09
ended
|
ZSP110 | — | |
| 74431-52111 |
Tray, Battery
2010-10 → 2014-07
ended
|
ZSP110 | — | |
| 74451B — Bolt, Battery Clamp | ||||
| 74451-52070 |
Bolt, Battery Clamp
2007-06 → 2012-04
ended
|
ZSP110 | — | |
| 74451-52071 |
Bolt, Battery Clamp
2012-05 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
