Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

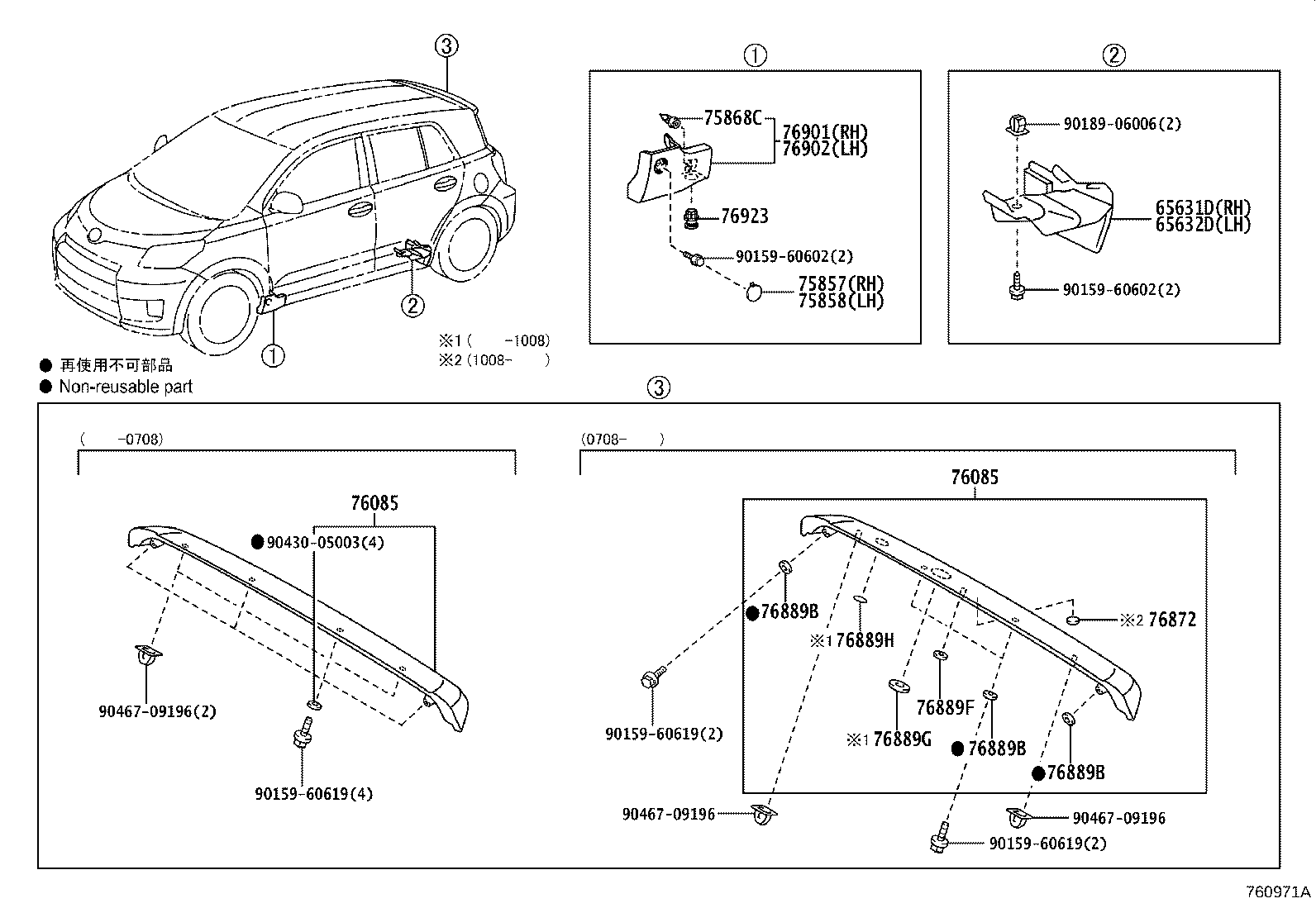

Exploded illustration 760971A 9043005003 — not listed in this catalogue 9046709196 — not listed in this catalogue 9015960619 — not listed in this catalogue 9046709196 — not listed in this catalogue 9015960619 — not listed in this catalogue 76085 — SPOILER SUB-ASSY, REAR (21 parts) 76085 — SPOILER SUB-ASSY, REAR (21 parts) 76889B — SEAL, REAR SPOILER, NO.1 (1 parts) 76889B — SEAL, REAR SPOILER, NO.1 (1 parts) 76889B — SEAL, REAR SPOILER, NO.1 (1 parts) 76889F — SEAL, REAR SPOILER, NO.1 (1 parts) 76872 — PROTECTOR, REAR SPOILER, NO.1 (1 parts) 76889G — SEAL, REAR SPOILER, NO.1 (1 parts) 76889H — SEAL, REAR SPOILER, NO.1 (1 parts) 9046709196 — not listed in this catalogue 9015960619 — not listed in this catalogue 65631D — PLATE, REAR WHEEL HOUSE, FRONT RH (1 parts) 65632D — PLATE, REAR WHEEL HOUSE, FRONT LH (1 parts) 9015960602 — not listed in this catalogue 9018906006 — not listed in this catalogue 76923 — RETAINER, SIDE MUDGUARD (1 parts) 76901 — MUDGUARD SUB-ASSY, SIDE, RH (16 parts) 76902 — MUDGUARD SUB-ASSY, SIDE, LH (16 parts) 75857 — COVER, ROCKER PANEL MOULDING, RH (16 parts) 75858 — COVER, ROCKER PANEL MOULDING, LH (16 parts) 9015960602 — not listed in this catalogue 75868C — CLIP, REAR SPOILER, NO.2 (1 parts)
760971A · 17 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
94 parts on this figure
Part number Description Fitment Price
65631D — Plate, Rear Wheel House, Front RH
65631-52090 Plate, Rear Wheel House, Front RH
2007-06 → 2014-07 ended
ZSP110 —
65632D — Plate, Rear Wheel House, Front LH
65632-52090 Plate, Rear Wheel House, Front LH
2007-06 → 2014-07 ended
ZSP110 —
75857 — Cover, Rocker Panel Moulding, RH
75857-52040-A0 note Cover, Rocker Panel Moulding, RH
2007-06 → 2014-07 ended
ZSP110 —
75857-52040-A1 note Cover, Rocker Panel Moulding, RH
2011-08 → 2011-10 ended
ZSP110 —
75857-52040-B0 note Cover, Rocker Panel Moulding, RH
2007-06 → 2010-08 ended
ZSP110 —
75857-52040-B1 note Cover, Rocker Panel Moulding, RH
2007-06 → 2014-07 ended
ZSP110 —
75857-52040-B2 note Cover, Rocker Panel Moulding, RH
2010-08 → 2014-07 ended
ZSP110 —
75857-52040-B3 note Cover, Rocker Panel Moulding, RH
2013-05 → 2013-07 ended
ZSP110 —
75857-52040-C0 note Cover, Rocker Panel Moulding, RH
2007-06 → 2014-07 ended
ZSP110 —
75857-52040-D0 note Cover, Rocker Panel Moulding, RH
2007-06 → 2014-07 ended
ZSP110 —
75857-52040-E1 note Cover, Rocker Panel Moulding, RH
2008-05 → 2008-06 ended
ZSP110 USA —
75857-52040-E2 note Cover, Rocker Panel Moulding, RH
2010-09 → 2010-11 ended
ZSP110 USA —
75857-52040-G0 note Cover, Rocker Panel Moulding, RH
2009-05 → 2009-06 ended
ZSP110 USA —
75857-52040-G1 note Cover, Rocker Panel Moulding, RH
2010-08 → 2012-06 ended
ZSP110 —
75857-52040-J0 note Cover, Rocker Panel Moulding, RH
2007-06 → 2014-07 ended
ZSP110 —
75857-52040-J1 note Cover, Rocker Panel Moulding, RH
2012-06 → 2014-07 ended
ZSP110 —
75857-52040-J2 note Cover, Rocker Panel Moulding, RH
2013-08 → 2014-07 ended
ZSP110 —
75857-52040-K0 note Cover, Rocker Panel Moulding, RH
2007-07 → 2014-07 ended
ZSP110 —
75858 — Cover, Rocker Panel Moulding, LH
75858-52030-A0 note Cover, Rocker Panel Moulding, LH
2007-06 → 2014-07 ended
ZSP110 —
75858-52030-A1 note Cover, Rocker Panel Moulding, LH
2011-08 → 2011-10 ended
ZSP110 —
75858-52030-B0 note Cover, Rocker Panel Moulding, LH
2007-06 → 2010-08 ended
ZSP110 —
75858-52030-B1 note Cover, Rocker Panel Moulding, LH
2007-06 → 2014-07 ended
ZSP110 —
75858-52030-B2 note Cover, Rocker Panel Moulding, LH
2010-08 → 2014-07 ended
ZSP110 —
75858-52030-B3 note Cover, Rocker Panel Moulding, LH
2013-05 → 2013-07 ended
ZSP110 —
75858-52030-C0 note Cover, Rocker Panel Moulding, LH
2007-06 → 2014-07 ended
ZSP110 —
75858-52030-D0 note Cover, Rocker Panel Moulding, LH
2007-06 → 2014-07 ended
ZSP110 —
75858-52030-E1 note Cover, Rocker Panel Moulding, LH
2008-05 → 2008-06 ended
ZSP110 USA —
75858-52030-E2 note Cover, Rocker Panel Moulding, LH
2010-09 → 2010-11 ended
ZSP110 USA —
75858-52030-G0 note Cover, Rocker Panel Moulding, LH
2009-05 → 2009-06 ended
ZSP110 USA —
75858-52030-G1 note Cover, Rocker Panel Moulding, LH
2010-08 → 2012-06 ended
ZSP110 —
75858-52030-J0 note Cover, Rocker Panel Moulding, LH
2007-06 → 2014-07 ended
ZSP110 —
75858-52030-J1 note Cover, Rocker Panel Moulding, LH
2012-06 → 2014-07 ended
ZSP110 —
75858-52030-J2 note Cover, Rocker Panel Moulding, LH
2013-08 → 2014-07 ended
ZSP110 —
75858-52030-K0 note Cover, Rocker Panel Moulding, LH
2007-07 → 2014-07 ended
ZSP110 —
75868C — Clip, Rear Spoiler, NO.2
75868-33020 Clip, Rear Spoiler, NO.2
2007-06 → 2014-07 ended
ZSP110 —
76085 — Spoiler Sub-assy, Rear
76085-52150-A0 note Spoiler Sub-assy, Rear
2007-06 → 2010-08 ended
ZSP110 —
76085-52150-B0 note Spoiler Sub-assy, Rear
2007-06 → 2010-08 ended
ZSP110 —
76085-52150-B1 note Spoiler Sub-assy, Rear
2007-06 → 2010-08 ended
ZSP110 —
76085-52150-C0 note Spoiler Sub-assy, Rear
2007-06 → 2010-08 ended
ZSP110 —
76085-52150-D0 note Spoiler Sub-assy, Rear
2007-06 → 2010-08 ended
ZSP110 —
76085-52150-E1 note Spoiler Sub-assy, Rear
2008-05 → 2008-06 ended
ZSP110 USA —
76085-52150-G0 note Spoiler Sub-assy, Rear
2009-05 → 2009-06 ended
ZSP110 USA —
76085-52150-J0 note Spoiler Sub-assy, Rear
2007-06 → 2010-08 ended
ZSP110 —
76085-52150-K0 note Spoiler Sub-assy, Rear
2007-07 → 2010-08 ended
ZSP110 —
76085-52160-A0 note Spoiler Sub-assy, Rear
2010-08 → 2014-07 ended
ZSP110 —
76085-52160-A1 note Spoiler Sub-assy, Rear
2011-08 → 2011-10 ended
ZSP110 —
76085-52160-B1 note Spoiler Sub-assy, Rear
2010-08 → 2014-07 ended
ZSP110 —
76085-52160-B2 note Spoiler Sub-assy, Rear
2010-08 → 2014-07 ended
ZSP110 —
76085-52160-B3 note Spoiler Sub-assy, Rear
2013-05 → 2013-07 ended
ZSP110 —
76085-52160-C0 note Spoiler Sub-assy, Rear
2010-08 → 2014-07 ended
ZSP110 —
76085-52160-D1 note Spoiler Sub-assy, Rear
2010-08 → 2014-07 ended
ZSP110 —
76085-52160-E1 note Spoiler Sub-assy, Rear
2010-09 → 2010-11 ended
ZSP110 USA —
76085-52160-G0 note Spoiler Sub-assy, Rear
2010-08 → 2012-06 ended
ZSP110 —
76085-52160-J0 note Spoiler Sub-assy, Rear
2010-08 → 2014-07 ended
ZSP110 —
76085-52160-J1 note Spoiler Sub-assy, Rear
2012-06 → 2014-07 ended
ZSP110 —
76085-52160-K0 note Spoiler Sub-assy, Rear
2010-08 → 2014-07 ended
ZSP110 —
76872 — Protector, Rear Spoiler, NO.1
76872-13020 Protector, Rear Spoiler, NO.1
2010-08 → 2014-07 ended
ZSP110 —
76889B — Seal, Rear Spoiler, NO.1
76889-21040 Seal, Rear Spoiler, NO.1
2007-08 → 2014-07 ended
ZSP110 —
76889F — Seal, Rear Spoiler, NO.1
76889-21050 Seal, Rear Spoiler, NO.1
2007-08 → 2014-07 ended
ZSP110 —
76889G — Seal, Rear Spoiler, NO.1
76889-21060 Seal, Rear Spoiler, NO.1
2007-08 → 2010-08 ended
ZSP110 —
76889H — Seal, Rear Spoiler, NO.1
76889-21070 Seal, Rear Spoiler, NO.1
2007-08 → 2010-08 ended
ZSP110 —
76901 — Mudguard Sub-assy, Side, RH
75601-52030-A0 note Mudguard Sub-assy, Side, RH
2007-06 → 2014-07 ended
ZSP110 —
75601-52030-A1 note Mudguard Sub-assy, Side, RH
2011-08 → 2011-10 ended
ZSP110 —
75601-52030-B0 note Mudguard Sub-assy, Side, RH
2007-06 → 2010-08 ended
ZSP110 —
75601-52030-B1 note Mudguard Sub-assy, Side, RH
2007-06 → 2014-07 ended
ZSP110 —
75601-52030-B2 note Mudguard Sub-assy, Side, RH
2010-08 → 2014-07 ended
ZSP110 —
75601-52030-B3 note Mudguard Sub-assy, Side, RH
2013-05 → 2013-07 ended
ZSP110 —
75601-52030-C0 note Mudguard Sub-assy, Side, RH
2007-06 → 2014-07 ended
ZSP110 —
75601-52030-D0 note Mudguard Sub-assy, Side, RH
2007-06 → 2014-07 ended
ZSP110 —
75601-52030-E1 note Mudguard Sub-assy, Side, RH
2008-05 → 2008-06 ended
ZSP110 USA —
75601-52030-E2 note Mudguard Sub-assy, Side, RH
2010-09 → 2010-11 ended
ZSP110 USA —
75601-52030-G0 note Mudguard Sub-assy, Side, RH
2009-05 → 2009-06 ended
ZSP110 USA —
75601-52030-G1 note Mudguard Sub-assy, Side, RH
2010-08 → 2012-06 ended
ZSP110 —
75601-52030-J0 note Mudguard Sub-assy, Side, RH
2007-06 → 2014-07 ended
ZSP110 —
75601-52030-J1 note Mudguard Sub-assy, Side, RH
2012-06 → 2014-07 ended
ZSP110 —
75601-52030-J2 note Mudguard Sub-assy, Side, RH
2013-08 → 2014-07 ended
ZSP110 —
75601-52030-K0 note Mudguard Sub-assy, Side, RH
2007-07 → 2014-07 ended
ZSP110 —
76902 — Mudguard Sub-assy, Side, LH
75602-52030-A0 note Mudguard Sub-assy, Side, LH
2007-06 → 2014-07 ended
ZSP110 —
75602-52030-A1 note Mudguard Sub-assy, Side, LH
2011-08 → 2011-10 ended
ZSP110 —
75602-52030-B0 note Mudguard Sub-assy, Side, LH
2007-06 → 2010-08 ended
ZSP110 —
75602-52030-B1 note Mudguard Sub-assy, Side, LH
2007-06 → 2014-07 ended
ZSP110 —
75602-52030-B2 note Mudguard Sub-assy, Side, LH
2010-08 → 2014-07 ended
ZSP110 —
75602-52030-B3 note Mudguard Sub-assy, Side, LH
2013-05 → 2013-07 ended
ZSP110 —
75602-52030-C0 note Mudguard Sub-assy, Side, LH
2007-06 → 2014-07 ended
ZSP110 —
75602-52030-D0 note Mudguard Sub-assy, Side, LH
2007-06 → 2014-07 ended
ZSP110 —
75602-52030-E1 note Mudguard Sub-assy, Side, LH
2008-05 → 2008-06 ended
ZSP110 USA —
75602-52030-E2 note Mudguard Sub-assy, Side, LH
2010-09 → 2010-11 ended
ZSP110 USA —
75602-52030-G0 note Mudguard Sub-assy, Side, LH
2009-05 → 2009-06 ended
ZSP110 USA —
75602-52030-G1 note Mudguard Sub-assy, Side, LH
2010-08 → 2012-06 ended
ZSP110 —
75602-52030-J0 note Mudguard Sub-assy, Side, LH
2007-06 → 2014-07 ended
ZSP110 —
75602-52030-J1 note Mudguard Sub-assy, Side, LH
2012-06 → 2014-07 ended
ZSP110 —
75602-52030-J2 note Mudguard Sub-assy, Side, LH
2013-08 → 2014-07 ended
ZSP110 —
75602-52030-K0 note Mudguard Sub-assy, Side, LH
2007-07 → 2014-07 ended
ZSP110 —
76923 — Retainer, Side Mudguard
76923-52021 Retainer, Side Mudguard
2007-06 → 2014-07 ended
ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
