Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

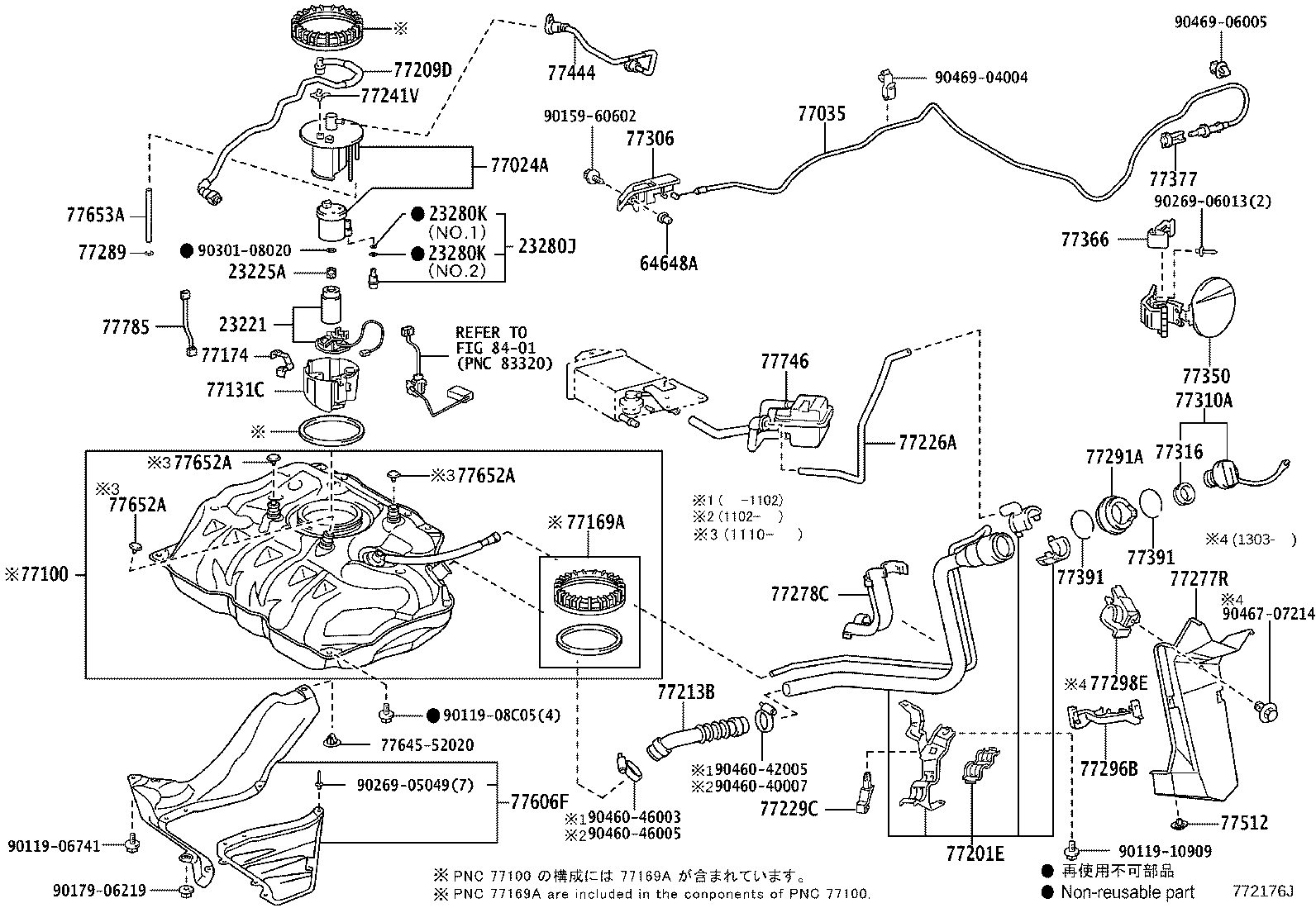

Exploded illustration 772176J 77606F — CASE SUB-ASSY, FUEL TANK COVER VENT (2 parts) 77241V — CLIP, TUBE JOINT (2 parts) 77444 — HOSE, FUEL TANK VENT (1 parts) 77306 — LEVER SUB-ASSY, FUEL LID LOCK OPEN (2 parts) 77035 — CABLE SUB-ASSY, FUEL LID LOCK CONTROL (1 parts) 77377 — RETAINER, FUEL FILLER OPENING LID LOCK (1 parts) 64648A — GROMMET, LUGGAGE DOOR LOCK OPENER (1 parts) 77209D — TUBE SUB-ASSY, FUEL TANK MAIN (2 parts) 23280K — RING, O(FOR FUEL PRESSURE REGULATOR) (2 parts) 23280J — REGULATOR ASSY, FUEL PRESSURE (1 parts) 77366 — SPRING, FUEL FILLER OPENING LID HINGE (2 parts) 77350 — LID ASSY, FUEL FILLER OPENING (1 parts) 77391 — RING, FUEL INLET BOX (1 parts) 77201E — PIPE SUB-ASSY, FUEL TANK FILLER (3 parts) 77213B — HOSE, FUEL TANK TO FILLER PIPE (1 parts) 77391 — RING, FUEL INLET BOX (1 parts) 77226A — TUBE, FUEL TANK BREATHER, NO.6 (2 parts) 77278C — PROTECTOR, FUEL TANK FILLER PIPE, NO.2 (1 parts) 77746 — FILTER, CHARCOAL CANISTER, NO.2 (1 parts) 77291A — SHIELD, FUEL TANK FILLER PIPE (3 parts) 77229C — CLAMP, BREATHER TUBE (1 parts) 23280K — RING, O(FOR FUEL PRESSURE REGULATOR) (2 parts) 77131C — SUB-TANK, FUEL, NO.1 (2 parts) 9015960602 — not listed in this catalogue 9046904004 — not listed in this catalogue 9030108020 — not listed in this catalogue 9011908C05 — not listed in this catalogue 7764552020 — not listed in this catalogue 9011910909 — not listed in this catalogue 9011906741 — not listed in this catalogue 9026905049 — not listed in this catalogue 9026906013 — not listed in this catalogue 9017906219 — not listed in this catalogue 8401 — not listed in this catalogue 9046042005 — not listed in this catalogue 9046040007 — not listed in this catalogue 9046046003 — not listed in this catalogue 9046046005 — not listed in this catalogue 77024A — PLATE SUB-ASSY, FUEL SUCTION (1 parts) 77653A — CUSHION, FUEL TANK, NO.3 (1 parts) 77289 — HOLDER, FUEL TANK PIPE SETTING (1 parts) 23221 — PUMP, FUEL (2 parts) 77174 — SUPPORT, FUEL SUCTION, NO.1 (1 parts) 77785 — HARNESS, FUEL PUMP (2 parts) 23225A — SPACER, FUEL PUMP (1 parts) 9046906005 — not listed in this catalogue 77310A — CAP ASSY, FUEL TANK (2 parts) 77316 — GASKET, FUEL TANK CAP (1 parts) 77100 — TANK ASSY, FUEL (3 parts) 77652A — CUSHION, FUEL TANK, NO.2 (1 parts) 77652A — CUSHION, FUEL TANK, NO.2 (1 parts) 77652A — CUSHION, FUEL TANK, NO.2 (1 parts) 77169A — GASKET, FUEL SUCTION TUBE SET (1 parts) 77296B — SUPPORT, FUEL TUBE PROTECTOR, NO.1 (1 parts) 77298E — SUPPORT, FUEL TUBE PROTECTOR, NO.3 (1 parts) 77277R — PROTECTOR, FUEL TANK FILLER PIPE (3 parts) 77512 — BRACKET, FUEL TANK, REAR (1 parts) 9046707214 — not listed in this catalogue
772176J · 41 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
56 parts on this figure
Part number Description Fitment Price
23221 — Pump, Fuel
23220-37100 Pump, Fuel
2007-06 → 2012-01 ended
2ZRFE ZSP110 —
23220-37101 Pump, Fuel
2012-01 → 2014-07 ended
2ZRFE ZSP110 —
23225A — Spacer, Fuel Pump
23225-21020 Spacer, Fuel Pump
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
23280J — Regulator Assy, Fuel Pressure
23280-21010 Regulator Assy, Fuel Pressure
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
23280K — Ring, O(FOR FUEL PRESSURE REGULATOR)
90301-04013 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
90301-15024 note Ring, O(FOR FUEL PRESSURE REGULATOR)
2007-06 → 2014-07 ended
2ZRFE ZSP110 —
64648A — Grommet, Luggage Door Lock Opener
64648-32020 Grommet, Luggage Door Lock Opener
2007-06 → 2014-07 ended
ZSP110 —
77024A — Plate Sub-assy, Fuel Suction
77024-52180 Plate Sub-assy, Fuel Suction
2007-06 → 2014-07 ended
ZSP110 —
77035 — Cable Sub-assy, Fuel Lid Lock Control
77035-52270 Cable Sub-assy, Fuel Lid Lock Control
2007-06 → 2014-07 ended
ZSP110 —
77100 — Tank Assy, Fuel
77001-52210 Tank Assy, Fuel
2007-06 → 2007-10 ended
ZSP110 —
77001-52211 Tank Assy, Fuel
2007-10 → 2011-03 ended
ZSP110 —
77001-52212 Tank Assy, Fuel
2011-04 → 2014-07 ended
ZSP110 —
77131C — Sub-tank, Fuel, NO.1
77131-52071 Sub-tank, Fuel, NO.1
2007-06 → 2013-07 ended
ZSP110 —
77131-52110 Sub-tank, Fuel, NO.1
2013-08 → 2014-07 ended
ZSP110 —
77169A — Gasket, Fuel Suction Tube Set
77169-52040 Gasket, Fuel Suction Tube Set
2007-06 → 2014-07 ended
ZSP110 —
77174 — Support, Fuel Suction, NO.1
77174-52070 Support, Fuel Suction, NO.1
2007-06 → 2014-07 ended
ZSP110 —
77201E — Pipe Sub-assy, Fuel Tank Filler
77201-52330 Pipe Sub-assy, Fuel Tank Filler
2007-06 → 2007-08 ended
ZSP110 —
77201-52331 Pipe Sub-assy, Fuel Tank Filler
2007-09 → 2012-08 ended
ZSP110 —
77201-52332 Pipe Sub-assy, Fuel Tank Filler
2012-08 → 2014-07 ended
ZSP110 —
77209D — Tube Sub-assy, Fuel Tank Main
77209-52100 Tube Sub-assy, Fuel Tank Main
2007-06 → 2008-01 ended
ZSP110 —
77209-52101 Tube Sub-assy, Fuel Tank Main
2008-02 → 2014-07 ended
ZSP110 —
77213B — Hose, Fuel Tank TO Filler Pipe
77213-52140 Hose, Fuel Tank TO Filler Pipe
2007-06 → 2014-07 ended
ZSP110 —
77226A — Tube, Fuel Tank Breather, NO.6
77226-52150 Tube, Fuel Tank Breather, NO.6
2007-06 → 2013-10 ended
ZSP110 —
77226-52151 Tube, Fuel Tank Breather, NO.6
2013-11 → 2014-07 ended
ZSP110 —
77229C — Clamp, Breather Tube
77229-52050 Clamp, Breather Tube
2007-06 → 2014-07 ended
ZSP110 —
77241V — Clip, Tube Joint
77241-33011 Clip, Tube Joint
2010-05 → 2014-07 ended
ZSP110 —
77241-60320 Clip, Tube Joint
2007-06 → 2010-04 ended
ZSP110 —
77277R — Protector, Fuel Tank Filler Pipe
77277-52040 Protector, Fuel Tank Filler Pipe
2007-06 → 2013-02 ended
ZSP110 —
77277-52140 Protector, Fuel Tank Filler Pipe
2013-03 → 2013-06 ended
ZSP110 —
77277-52150 Protector, Fuel Tank Filler Pipe
2013-06 → 2014-07 ended
ZSP110 —
77278C — Protector, Fuel Tank Filler Pipe, NO.2
77278-52030 Protector, Fuel Tank Filler Pipe, NO.2
2007-06 → 2014-07 ended
ZSP110 —
77289 — Holder, Fuel Tank Pipe Setting
77289-52110 Holder, Fuel Tank Pipe Setting
2007-06 → 2014-07 ended
ZSP110 —
77291A — Shield, Fuel Tank Filler Pipe
77291-52010 Shield, Fuel Tank Filler Pipe
2007-06 → 2010-02 ended
ZSP110 —
77291-52010 Shield, Fuel Tank Filler Pipe
2007-06 → 2014-07 ended
ZSP110 CND —
77291-52150 Shield, Fuel Tank Filler Pipe
2010-02 → 2014-07 ended
ZSP110 USA —
77296B — Support, Fuel Tube Protector, NO.1
77296-52020 Support, Fuel Tube Protector, NO.1
2007-06 → 2014-07 ended
ZSP110 —
77298E — Support, Fuel Tube Protector, NO.3
77297-52060 Support, Fuel Tube Protector, NO.3
2013-03 → 2014-07 ended
ZSP110 —
77306 — Lever Sub-assy, Fuel Lid Lock Open
77306-52040 Lever Sub-assy, Fuel Lid Lock Open
2007-06 → 2010-10 ended
ZSP110 —
77306-52060 Lever Sub-assy, Fuel Lid Lock Open
2010-10 → 2014-07 ended
ZSP110 —
77310A — Cap Assy, Fuel Tank
77300-52040 Cap Assy, Fuel Tank
2007-06 → 2012-08 ended
ZSP110 —
77300-74010 Cap Assy, Fuel Tank
2012-08 → 2014-07 ended
ZSP110 —
77316 — Gasket, Fuel Tank Cap
77316-52040 Gasket, Fuel Tank Cap
2007-06 → 2014-07 ended
ZSP110 —
77350 — Lid Assy, Fuel Filler Opening
77350-52160 Lid Assy, Fuel Filler Opening
2007-06 → 2014-07 ended
ZSP110 —
77366 — Spring, Fuel Filler Opening Lid Hinge
77366-52010 Spring, Fuel Filler Opening Lid Hinge
2007-06 → 2007-11 ended
ZSP110 —
77366-52011 Spring, Fuel Filler Opening Lid Hinge
2007-12 → 2014-07 ended
ZSP110 —
77377 — Retainer, Fuel Filler Opening Lid Lock
77377-52020 Retainer, Fuel Filler Opening Lid Lock
2007-06 → 2014-07 ended
ZSP110 —
77391 — Ring, Fuel Inlet Box
77391-12020 Ring, Fuel Inlet Box
2007-06 → 2014-07 ended
ZSP110 —
77444 — Hose, Fuel Tank Vent
77404-52050 Hose, Fuel Tank Vent
2007-06 → 2014-07 ended
ZSP110 —
77512 — Bracket, Fuel Tank, Rear
77512-35140 Bracket, Fuel Tank, Rear
2007-06 → 2014-07 ended
ZSP110 —
77606F — Case Sub-assy, Fuel Tank Cover Vent
77606-52070 Case Sub-assy, Fuel Tank Cover Vent
2007-06 → 2007-09 ended
ZSP110 —
77606-52071 Case Sub-assy, Fuel Tank Cover Vent
2007-10 → 2014-07 ended
ZSP110 —
77652A — Cushion, Fuel Tank, NO.2
77652-52070 Cushion, Fuel Tank, NO.2
2011-10 → 2014-07 ended
ZSP110 —
77653A — Cushion, Fuel Tank, NO.3
77652-52040 Cushion, Fuel Tank, NO.3
2007-06 → 2014-07 ended
ZSP110 —
77746 — Filter, Charcoal Canister, NO.2
77706-52020 Filter, Charcoal Canister, NO.2
2007-06 → 2014-07 ended
ZSP110 —
77785 — Harness, Fuel Pump
77785-52060 Harness, Fuel Pump
2007-06 → 2012-01 ended
ZSP110 —
77785-52110 Harness, Fuel Pump
2012-01 → 2014-07 ended
ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
