Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

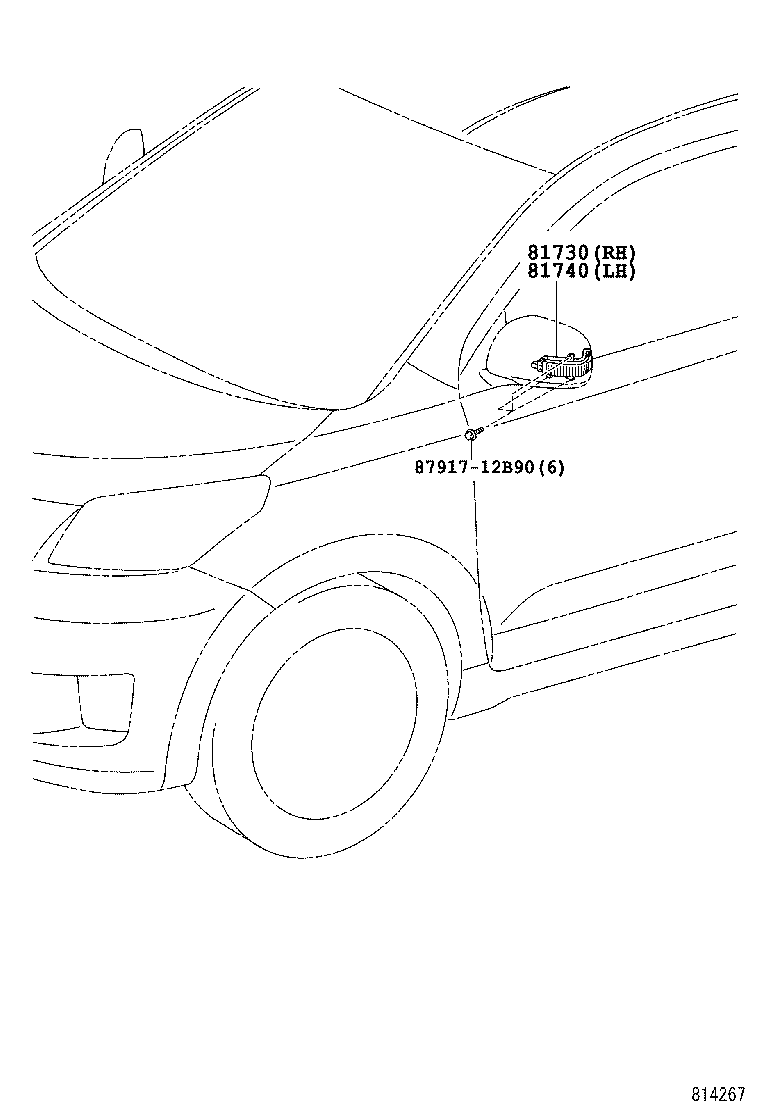

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81730 — Lamp Assy, Side Turn Signal, RH | ||||
| 81730-12230 |
Lamp Assy, Side Turn Signal, RH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 81740 — Lamp Assy, Side Turn Signal, LH | ||||
| 81740-12150 |
Lamp Assy, Side Turn Signal, LH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
