Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

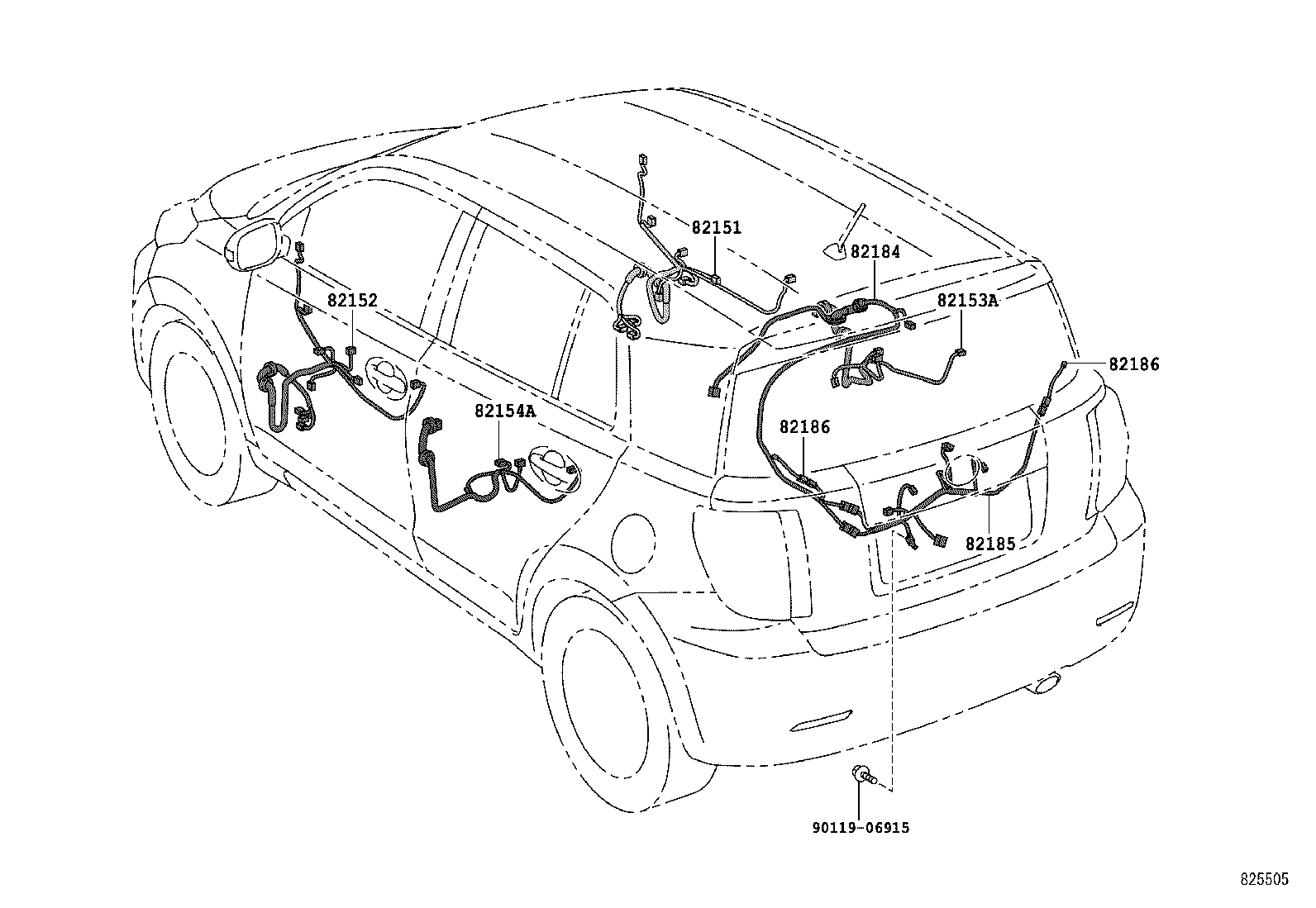

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82151 — Wire, Front Door, RH | ||||
| 82151-52G60 |
Wire, Front Door, RH
2007-06 → 2014-07
ended
|
ZSP110 USA | — | |
| 82151-52S10 |
Wire, Front Door, RH
2010-08 → 2014-07
ended
|
ZSP110 CND | — | |
| 82152 — Wire, Front Door, LH | ||||
| 82152-52D40 |
Wire, Front Door, LH
2007-06 → 2014-07
ended
|
ZSP110 USA | — | |
| 82152-52P10 |
Wire, Front Door, LH
2010-08 → 2014-07
ended
|
ZSP110 CND | — | |
| 82153A — Wire, Rear Door, RH | ||||
| 82153-52400 |
Wire, Rear Door, RH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 82154A — Wire, Rear Door, LH | ||||
| 82153-52400 |
Wire, Rear Door, LH
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 82184 — Wire, Back Door, NO.1 | ||||
| 82184-52450 |
Wire, Back Door, NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 82185 — Wire, Back Door, NO.2 | ||||
| 82185-52490 |
Wire, Back Door, NO.2
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 82186 — Wire, Rear Window, NO.1 | ||||
| 82186-52130 |
Wire, Rear Window, NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
