Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

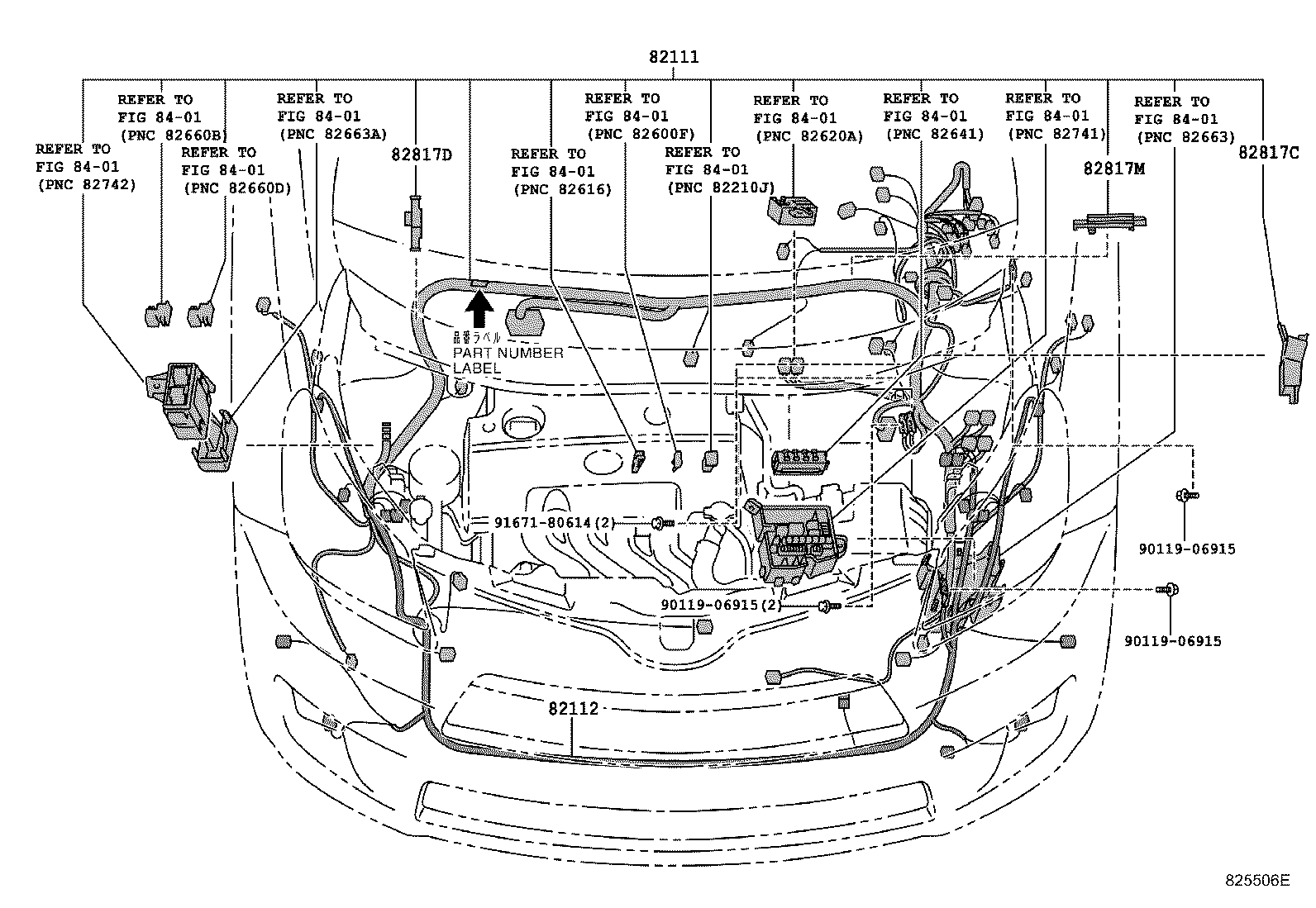

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82111 — Wire, Engine Room Main | ||||
| 82111-52N80 |
Wire, Engine Room Main
2007-06 → 2007-07
ended
|
ZSP110 | — | |
| 82111-52N81 |
Wire, Engine Room Main
2007-07 → 2009-07
ended
|
ZSP110 | — | |
| 82111-52N90 note |
Wire, Engine Room Main
2007-06 → 2007-07
ended
|
ZSP110 | — | |
| 82111-52N91 note |
Wire, Engine Room Main
2007-07 → 2009-06
ended
|
ZSP110 | — | |
| 82111-52N92 |
Wire, Engine Room Main
2009-07 → 2010-08
ended
|
ZSP110 | — | |
| 82111-52N93 |
Wire, Engine Room Main
2010-08 → 2012-08
ended
|
ZSP110 USA | — | |
| 82111-52N94 |
Wire, Engine Room Main
2012-08 → 2014-07
ended
|
ZSP110 USA | — | |
| 82111-5CK50 |
Wire, Engine Room Main
2010-08 → 2012-06
ended
|
ZSP110 CND | — | |
| 82111-5CK51 |
Wire, Engine Room Main
2012-06 → 2014-07
ended
|
ZSP110 CND | — | |
| 82112 — Wire, Engine Room, NO.2 | ||||
| 82112-52330 |
Wire, Engine Room, NO.2
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 82817C — Protector, Wiring Harness, NO.4 | ||||
| 82817-52511 |
Protector, Wiring Harness, NO.4
2007-06 → 2007-07
ended
|
ZSP110 | — | |
| 82817-52580 |
Protector, Wiring Harness, NO.4
2007-07 → 2009-07
ended
|
ZSP110 | — | |
| 82817-52830 |
Protector, Wiring Harness, NO.4
2009-07 → 2014-07
ended
|
ZSP110 | — | |
| 82817D — Protector, Wiring Harness, NO.5 | ||||
| 82817-52750 |
Protector, Wiring Harness, NO.5
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 82817M — Protector, Wiring Harness, NO.12 | ||||
| 82817-52820 |
Protector, Wiring Harness, NO.12
2009-07 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
