Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

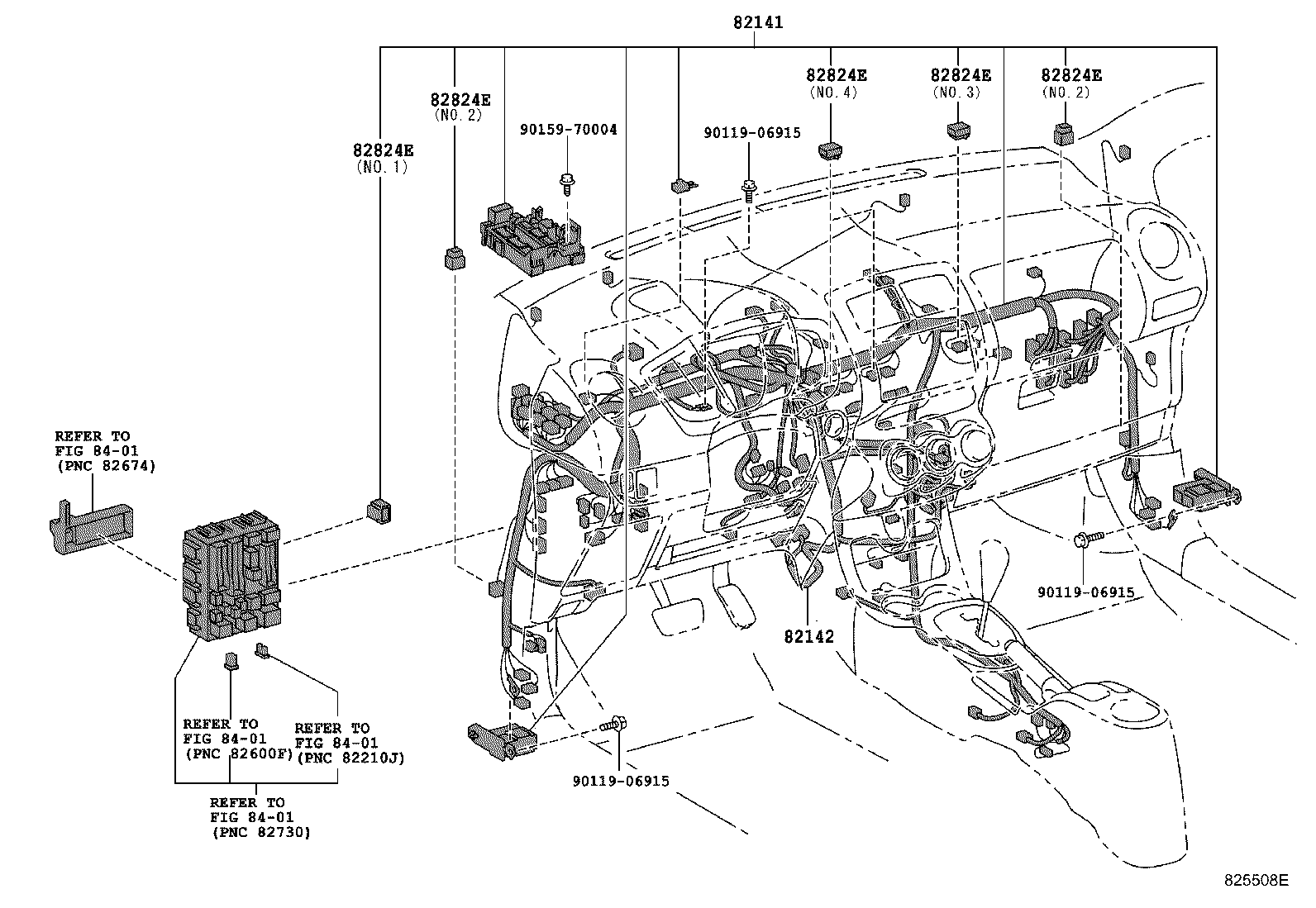

Exploded illustration 825508E 8401 — not listed in this catalogue 8401 — not listed in this catalogue 82824E — CONNECTOR, WIRING HARNESS (8 parts) 82824E — CONNECTOR, WIRING HARNESS (8 parts) 82824E — CONNECTOR, WIRING HARNESS (8 parts) 82824E — CONNECTOR, WIRING HARNESS (8 parts) 82824E — CONNECTOR, WIRING HARNESS (8 parts) 9011906915 — not listed in this catalogue 82142 — WIRE, INSTRUMENT PANEL, NO.2 (2 parts) 9011906915 — not listed in this catalogue 9015970004 — not listed in this catalogue 8401 — not listed in this catalogue 9011906915 — not listed in this catalogue 82141 — WIRE, INSTRUMENT PANEL (9 parts) 8401 — not listed in this catalogue
825508E · 7 callouts, 8 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
19 parts on this figure
Part number Description Fitment Price
82141 — Wire, Instrument Panel
82141-5CM60 Wire, Instrument Panel
2007-06 → 2009-07 ended
ZSP110 —
82141-5CM70 note Wire, Instrument Panel
2007-06 → 2009-07 ended
ZSP110 —
82141-5DN70 Wire, Instrument Panel
2009-07 → 2010-08 ended
ZSP110 —
82141-5DN71 Wire, Instrument Panel
2010-08 → 2011-08 ended
ZSP110 USA —
82141-5DN72 Wire, Instrument Panel
2011-08 → 2012-06 ended
ZSP110 USA —
82141-5DN73 Wire, Instrument Panel
2012-06 → 2014-07 ended
ZSP110 USA —
82141-5DW80 Wire, Instrument Panel
2010-08 → 2011-08 ended
ZSP110 CND —
82141-5DW81 Wire, Instrument Panel
2011-08 → 2012-08 ended
ZSP110 CND —
82141-5DW82 Wire, Instrument Panel
2012-08 → 2014-07 ended
ZSP110 CND —
82142 — Wire, Instrument Panel, NO.2
82142-52350 Wire, Instrument Panel, NO.2
2007-06 → 2009-02 ended
ZSP110 —
82142-52530 Wire, Instrument Panel, NO.2
2009-02 → 2012-08 ended
ZSP110 —
82824E — Connector, Wiring Harness
82824-22070 note Connector, Wiring Harness
2007-06 → 2011-08 ended
ZSP110 USA —
82824-22070 note Connector, Wiring Harness
2007-06 → 2012-08 ended
ZSP110 CND —
82824-47210 note Connector, Wiring Harness
2007-06 → 2011-08 ended
ZSP110 USA —
82824-47210 note Connector, Wiring Harness
2007-06 → 2012-08 ended
ZSP110 CND —
82824-52280 note Connector, Wiring Harness
2007-06 → 2011-08 ended
ZSP110 USA —
82824-52280 note Connector, Wiring Harness
2007-06 → 2012-08 ended
ZSP110 CND —
82824-52290 note Connector, Wiring Harness
2007-06 → 2011-08 ended
ZSP110 USA —
82824-52290 note Connector, Wiring Harness
2007-06 → 2012-08 ended
ZSP110 CND —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
