Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

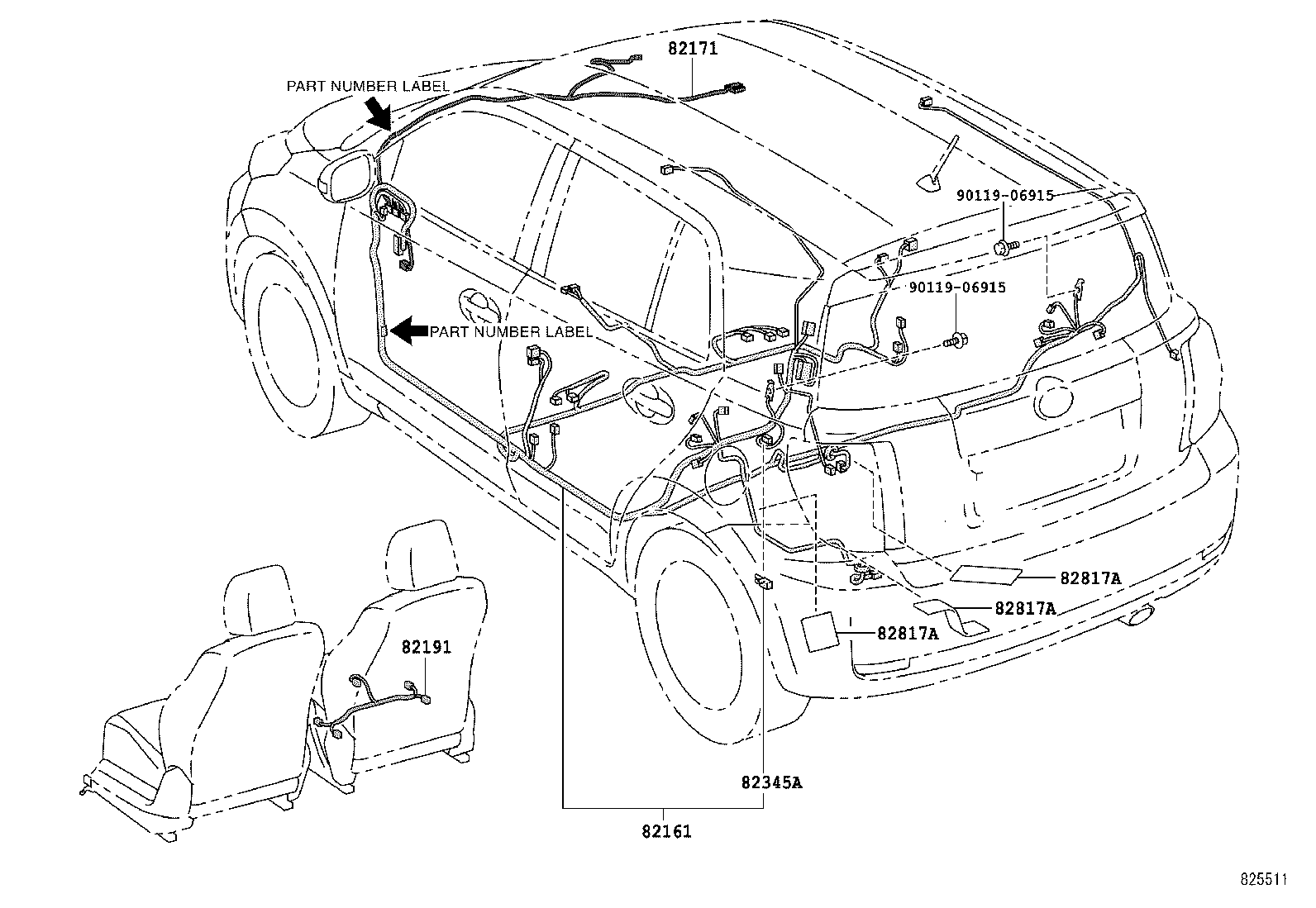

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82161 — Wire, Floor | ||||
| 82161-52R30 |
Wire, Floor
2007-06 → 2010-08
ended
|
ZSP110 | — | |
| 82161-5CG70 |
Wire, Floor
2010-08 → 2012-08
ended
|
ZSP110 | — | |
| 82161-5CG71 |
Wire, Floor
2012-08 → 2014-07
ended
|
ZSP110 | — | |
| 82171 — Wire, Roof, NO.1 | ||||
| 82171-52370 |
Wire, Roof, NO.1
2007-06 → 2011-08
ended
|
ZSP110 | — | |
| 82171-52431 |
Wire, Roof, NO.1
2011-08 → 2014-07
ended
|
ZSP110 | — | |
| 82191 — Wire, Front Seat, RH | ||||
| 82191-33140 |
Wire, Front Seat, RH
2007-06 → 2010-04
ended
|
ZSP110 | — | |
| 82191-33140 |
Wire, Front Seat, RH
2007-06 → 2014-07
ended
|
ZSP110 CND | — | |
| 82191-33140 |
Wire, Front Seat, RH
2010-08 → 2014-07
ended
|
ZSP110 USA | — | |
| 82345A — Diode | ||||
| 82345-32010 |
Diode
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 82817A — Protector, Wiring Harness, NO.2 | ||||
| 82817-52710 |
Protector, Wiring Harness, NO.2
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
