Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

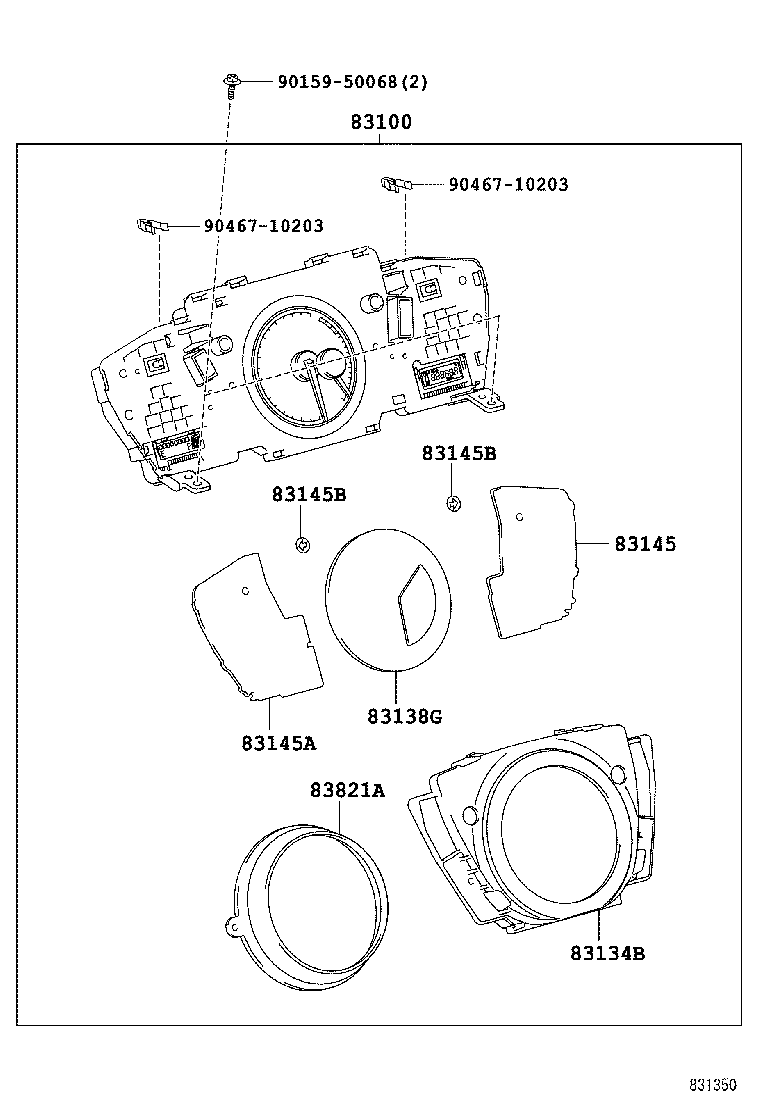

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83100 — Meter Assy, Combination | ||||
| 83800-52N10 |
Meter Assy, Combination
2007-06 → 2009-07
ended
|
ZSP110 | — | |
| 83800-52X10 |
Meter Assy, Combination
2012-08 → 2014-07
ended
|
ZSP110 USA | — | |
| 83800-52X20 |
Meter Assy, Combination
2012-08 → 2014-07
ended
|
ZSP110 CND | — | |
| 83800-52Z10 |
Meter Assy, Combination
2009-07 → 2010-08
ended
|
ZSP110 | — | |
| 83800-52Z11 |
Meter Assy, Combination
2010-08 → 2012-08
ended
|
ZSP110 USA | — | |
| 83800-5CC50 |
Meter Assy, Combination
2010-08 → 2011-07
ended
|
ZSP110 CND | — | |
| 83800-5CC51 |
Meter Assy, Combination
2011-08 → 2012-08
ended
|
ZSP110 CND | — | |
| 83134B — Cover, Combination Meter, NO.2 | ||||
| 83821-52Z11 |
Cover, Combination Meter, NO.2
2010-08 → 2014-07
ended
|
ZSP110 | — | |
| 83822-52M90 |
Cover, Combination Meter, NO.2
2007-06 → 2010-08
ended
|
ZSP110 | — | |
| 83138G — Glass, Combination Meter | ||||
| 83852-52M90 |
Glass, Combination Meter
2007-06 → 2010-08
ended
|
ZSP110 | — | |
| 83852-52M91 |
Glass, Combination Meter
2010-08 → 2014-07
ended
|
ZSP110 | — | |
| 83145 — Lens, Meter, NO.1 | ||||
| 83831-52N10 |
Lens, Meter, NO.1
2007-06 → 2009-07
ended
|
ZSP110 | — | |
| 83831-52Z10 |
Lens, Meter, NO.1
2009-07 → 2010-08
ended
|
ZSP110 | — | |
| 83831-52Z11 |
Lens, Meter, NO.1
2010-08 → 2014-07
ended
|
ZSP110 USA | — | |
| 83831-5CC50 |
Lens, Meter, NO.1
2010-08 → 2014-07
ended
|
ZSP110 CND | — | |
| 83145A — Lens, Meter, NO.2 | ||||
| 83831-5CC51 |
Lens, Meter, NO.2
2011-08 → 2014-07
ended
|
ZSP110 CND | — | |
| 83832-52N10 |
Lens, Meter, NO.2
2007-06 → 2010-08
ended
|
ZSP110 | — | |
| 83832-52Z11 |
Lens, Meter, NO.2
2010-08 → 2014-07
ended
|
ZSP110 USA | — | |
| 83832-5CC50 |
Lens, Meter, NO.2
2010-08 → 2011-08
ended
|
ZSP110 CND | — | |
| 83145B — Lens, Meter, NO.3 | ||||
| 83833-52M90 |
Lens, Meter, NO.3
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 83821A — Cover, Combination Meter, NO.1 | ||||
| 83821-52M90 |
Cover, Combination Meter, NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
