Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

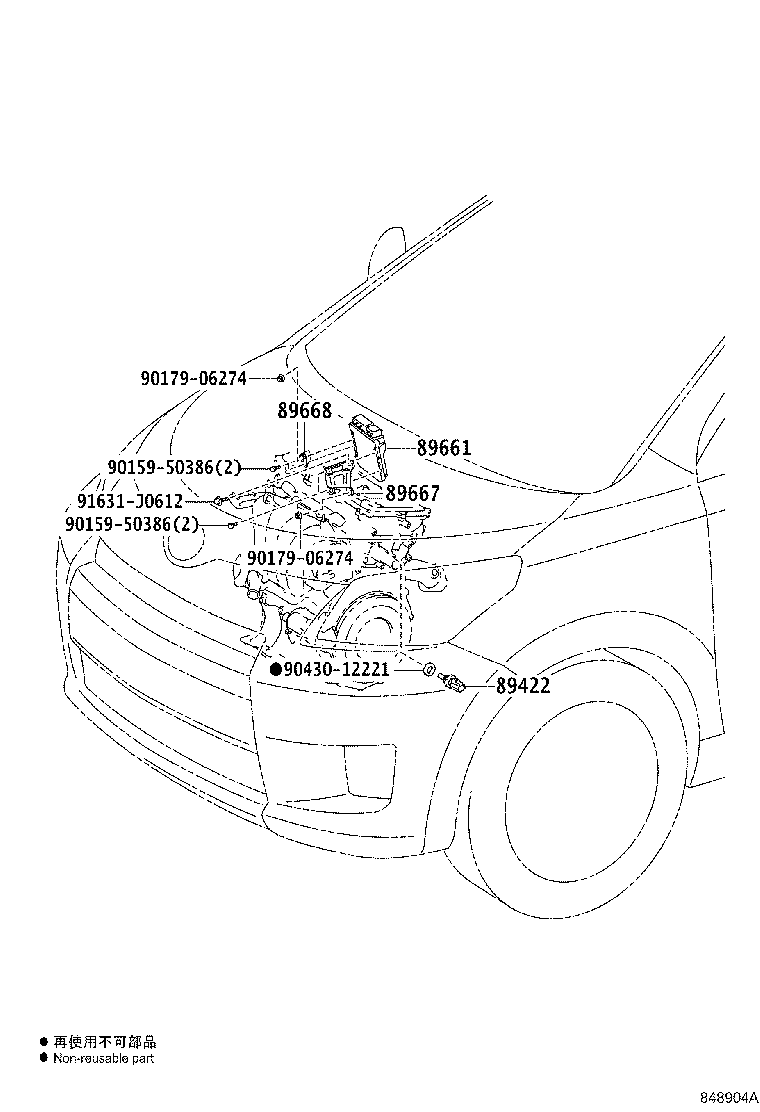

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89422 — Sensor, Water Temperature (FOR E.F.I.) | ||||
| 89422-33030 |
Sensor, Water Temperature (FOR E.F.I.)
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 89661 — Computer, Engine Control | ||||
| 89661-52F71 |
Computer, Engine Control
2007-06 → 2009-04
ended
|
ZSP110 4FC | — | |
| 89661-52F72 |
Computer, Engine Control
2009-04 → 2009-07
ended
|
ZSP110 4FC | — | |
| 89661-52F81 |
Computer, Engine Control
2007-06 → 2008-08
ended
|
ZSP110 5F | — | |
| 89661-52F82 |
Computer, Engine Control
2008-09 → 2009-04
ended
|
ZSP110 5F | — | |
| 89661-52F83 |
Computer, Engine Control
2009-04 → 2009-07
ended
|
ZSP110 5F | — | |
| 89661-52M10 |
Computer, Engine Control
2009-07 → 2010-08
ended
|
ZSP110 5F | — | |
| 89661-52M20 |
Computer, Engine Control
2009-07 → 2010-08
ended
|
ZSP110 4FC | — | |
| 89661-52T90 |
Computer, Engine Control
2010-08 → 2012-08
ended
|
ZSP110 5F | — | |
| 89661-52U00 |
Computer, Engine Control
2010-08 → 2012-08
ended
|
ZSP110 4FC | — | |
| 89661-52Y50 |
Computer, Engine Control
2012-08 → 2014-07
ended
|
ZSP110 5F | — | |
| 89661-52Y60 |
Computer, Engine Control
2012-08 → 2014-07
ended
|
ZSP110 4FC | — | |
| 89667 — Bracket, Engine Control Computer | ||||
| 89667-52200 |
Bracket, Engine Control Computer
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 89668 — Bracket, Engine Control Computer, NO.2 | ||||
| 89668-52220 |
Bracket, Engine Control Computer, NO.2
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
