Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

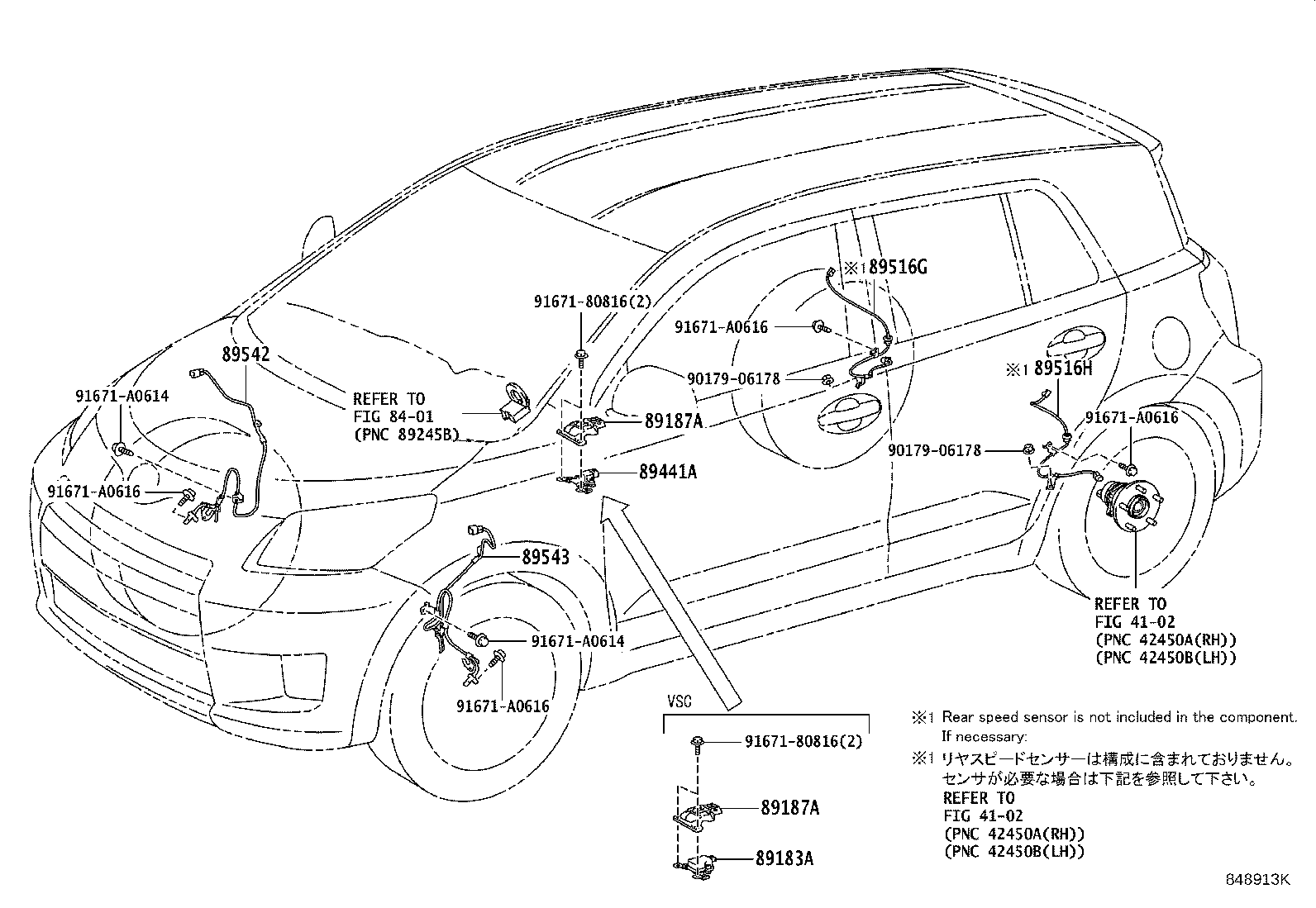

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 89183A — Sensor, Yawrate | ||||
| 89180-52010 note |
Sensor, Yawrate
2007-06 → 2009-06
ended
|
ZSP110 | — | |
| 89180-52050 note |
Sensor, Yawrate
2009-06 → 2009-07
ended
|
ZSP110 | — | |
| 89180-52050 |
Sensor, Yawrate
2009-07 → 2014-07
ended
|
ZSP110 | — | |
| 89187A — Protector, Yawrate Sensor | ||||
| 89187-52010 |
Protector, Yawrate Sensor
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 89441A — Sensor, Deceleration | ||||
| 89440-52060 |
Sensor, Deceleration
2007-06 → 2009-07
ended
|
ZSP110 | — | |
| 89516G — Wire, Skid Control Sensor, Rear RH NO.1 | ||||
| 89516-52090 |
Wire, Skid Control Sensor, Rear RH NO.1
2007-06 → 2009-04
ended
|
ZSP110 | — | |
| 89516-52110 |
Wire, Skid Control Sensor, Rear RH NO.1
2009-05 → 2014-07
ended
|
ZSP110 | — | |
| 89516H — Wire, Skid Control Sensor, Rear LH NO.1 | ||||
| 89516-52100 |
Wire, Skid Control Sensor, Rear LH NO.1
2007-06 → 2009-04
ended
|
ZSP110 | — | |
| 89516-52120 |
Wire, Skid Control Sensor, Rear LH NO.1
2009-05 → 2014-07
ended
|
ZSP110 | — | |
| 89542 — Sensor, Speed, Front RH | ||||
| 89542-52030 |
Sensor, Speed, Front RH
2007-06 → 2008-12
ended
|
ZSP110 | — | |
| 89542-52060 |
Sensor, Speed, Front RH
2009-01 → 2011-07
ended
|
ZSP110 | — | |
| 89542-52120 |
Sensor, Speed, Front RH
2011-08 → 2014-07
ended
|
ZSP110 | — | |
| 89543 — Sensor, Speed, Front LH | ||||
| 89543-52030 |
Sensor, Speed, Front LH
2007-06 → 2008-10
ended
|
ZSP110 | — | |
| 89543-52060 |
Sensor, Speed, Front LH
2008-10 → 2011-07
ended
|
ZSP110 | — | |
| 89543-52120 |
Sensor, Speed, Front LH
2011-08 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
