Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

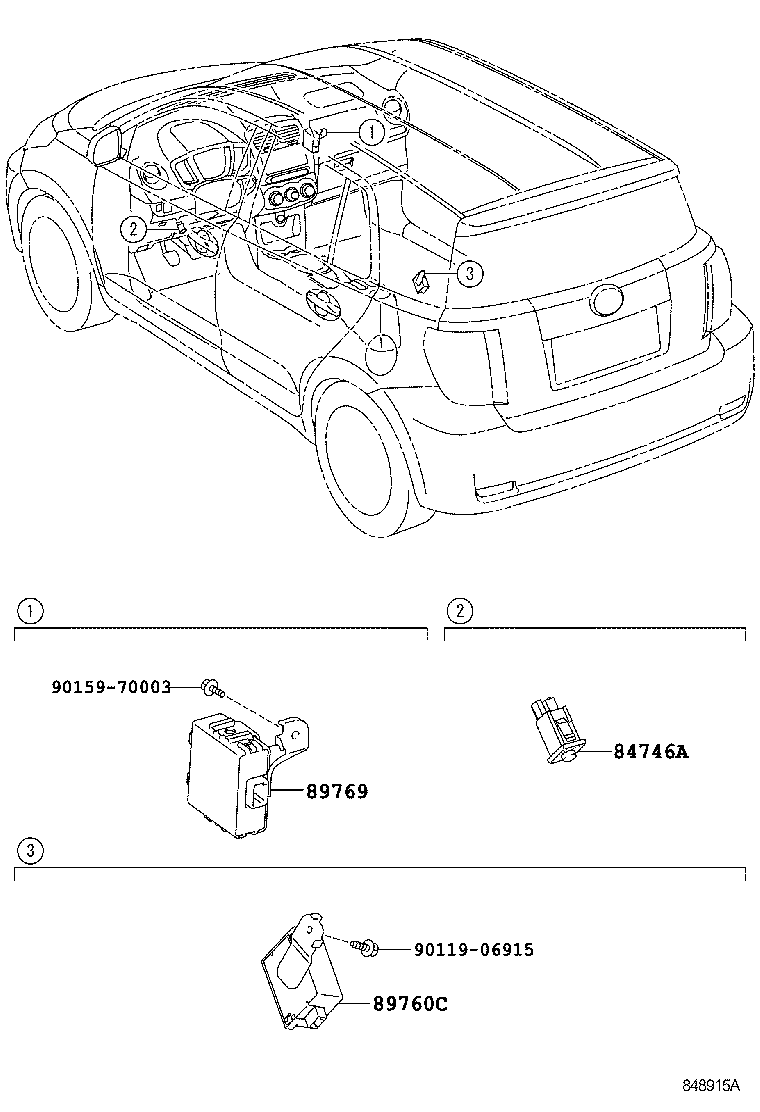

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 84746A — Switch, Tire Pressure Warning, NO.1 | ||||
| 84746-48010 |
Switch, Tire Pressure Warning, NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 89760C — Receiver Assy, Tire Pressure Monitor | ||||
| 89760-52010 |
Receiver Assy, Tire Pressure Monitor
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 89769 — Computer, Tire Pressure Monitor | ||||
| 89769-52010 |
Computer, Tire Pressure Monitor
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
