Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

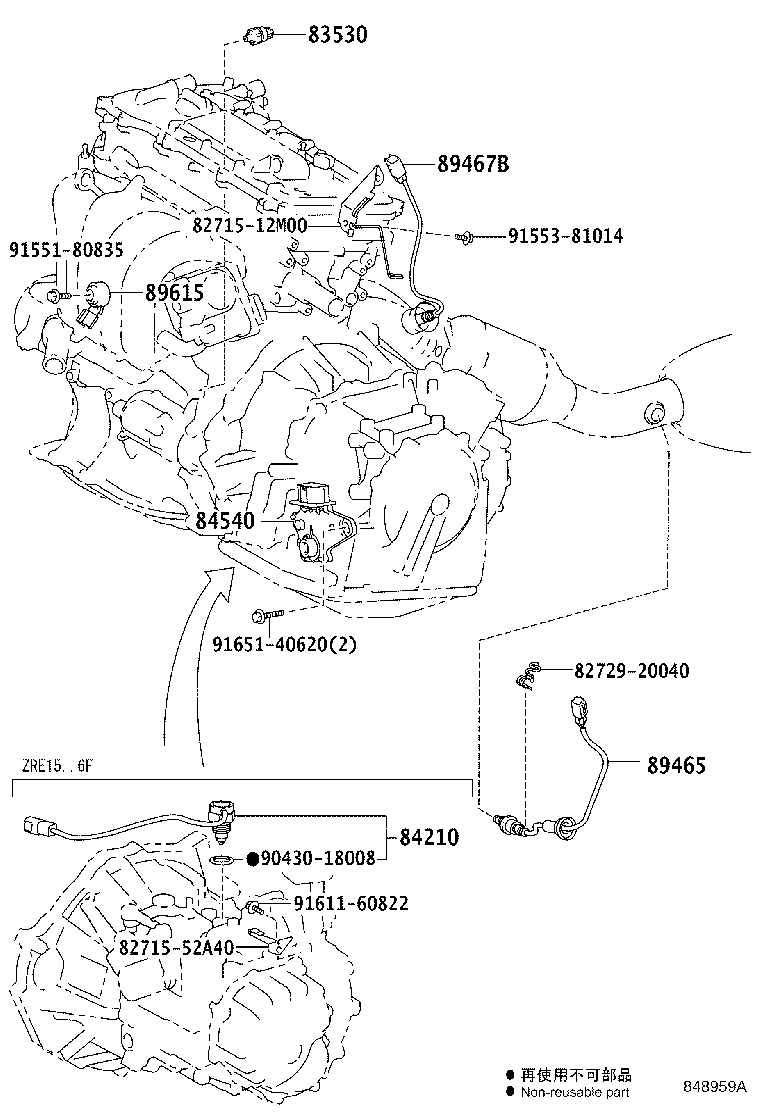

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83530 — Switch Assy, Oil Pressure (FOR ENGINE) | ||||
| 83530-12050 |
Switch Assy, Oil Pressure (FOR ENGINE)
2013-10 → 2014-02
ended
|
ZSP110 | — | |
| 83530-28020 |
Switch Assy, Oil Pressure (FOR ENGINE)
2007-06 → 2013-10
ended
|
ZSP110 | — | |
| 83530-28020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2014-02 → 2014-07
ended
|
ZSP110 | — | |
| 83530-60020 note |
Switch Assy, Oil Pressure (FOR ENGINE)
2014-02 → 2014-07
ended
|
ZSP110 | — | |
| 84210 — Switch Assy, Back-up Lamp | ||||
| 84210-52010 |
Switch Assy, Back-up Lamp
2007-06 → 2014-07
ended
|
ZSP110 5F | — | |
| 84540 — Switch Assy, Neutral Start | ||||
| 84540-52080 |
Switch Assy, Neutral Start
2007-06 → 2014-07
ended
|
ZSP110 4FC | — | |
| 89465 — Sensor, Oxygen | ||||
| 89465-52500 |
Sensor, Oxygen
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 89467B — Sensor, Air Fuel Ratio | ||||
| 89467-12030 |
Sensor, Air Fuel Ratio
2007-06 → 2009-07
ended
|
ZSP110 | — | |
| 89467-52060 |
Sensor, Air Fuel Ratio
2009-07 → 2014-07
ended
|
ZSP110 | — | |
| 89615 — Sensor, Knock Control | ||||
| 89615-20090 |
Sensor, Knock Control
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
