Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

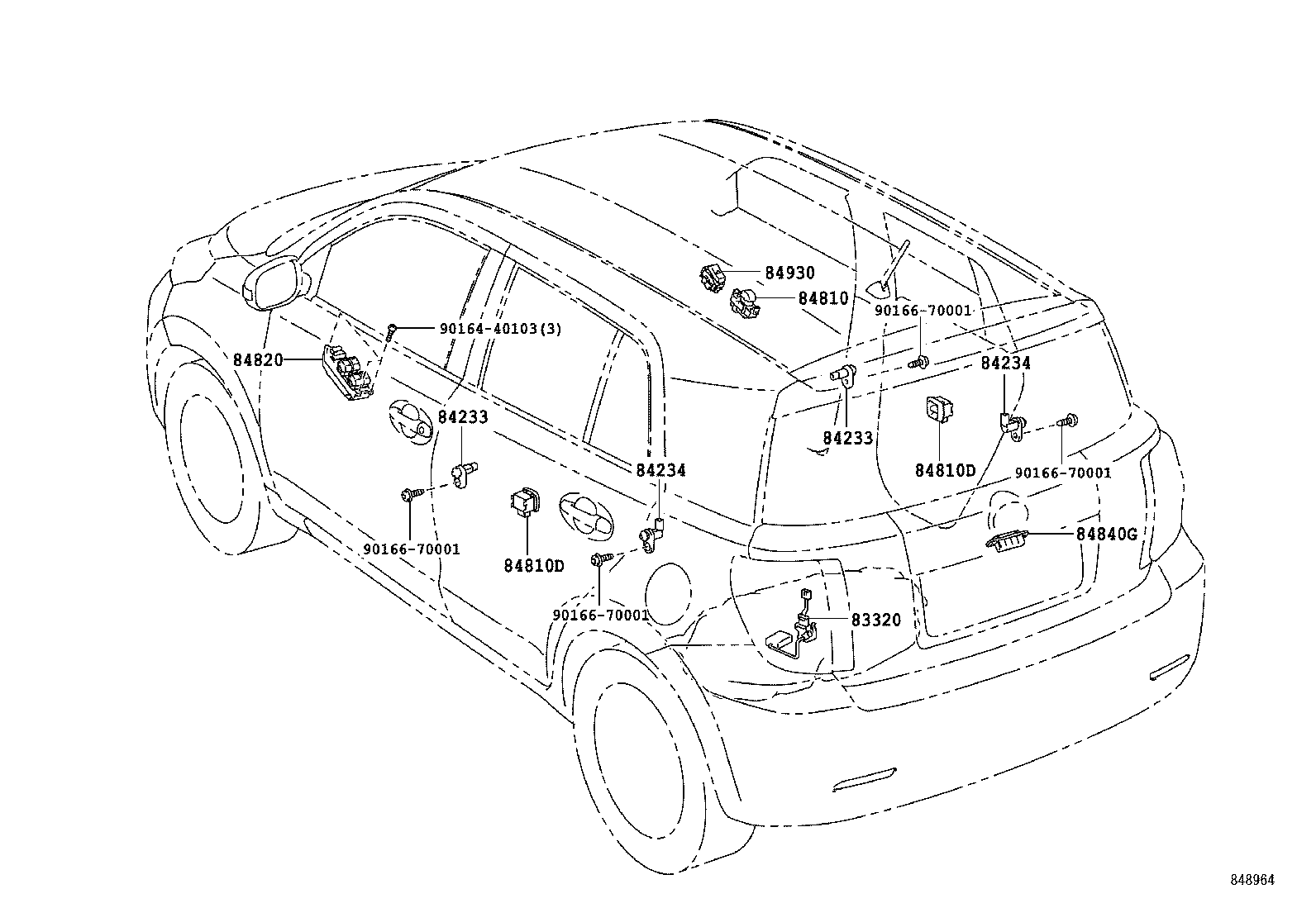

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83320 — Gage Assy, Fuel Sender | ||||
| 83320-52181 |
Gage Assy, Fuel Sender
2007-06 → 2010-11
ended
|
ZSP110 | — | |
| 83320-52260 |
Gage Assy, Fuel Sender
2010-11 → 2014-02
ended
|
ZSP110 | — | |
| 83320-52261 |
Gage Assy, Fuel Sender
2014-03 → 2014-07
ended
|
ZSP110 | — | |
| 84233 — Switch Assy, Courtesy Lamp (FOR FRONT DOOR) | ||||
| 84231-52010 |
Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 84234 — Switch Assy, Courtesy Lamp (FOR REAR DOOR) | ||||
| 84231-52020 |
Switch Assy, Courtesy Lamp (FOR REAR DOOR)
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 84810 — Switch Assy, Power Window Regulator | ||||
| 84810-52030 |
Switch Assy, Power Window Regulator
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 84810D — Switch Assy, Power Window Regulator, Rear | ||||
| 84810-52030 |
Switch Assy, Power Window Regulator, Rear
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 84820 — Master Switch Assy, Power Window Regulator | ||||
| 84820-12540 |
Master Switch Assy, Power Window Regulator
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 84840G — Switch Assy, Back Door Opener | ||||
| 84840-28030 |
Switch Assy, Back Door Opener
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 84930 — Switch Assy, Door Control | ||||
| 84930-52080 |
Switch Assy, Door Control
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
