Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

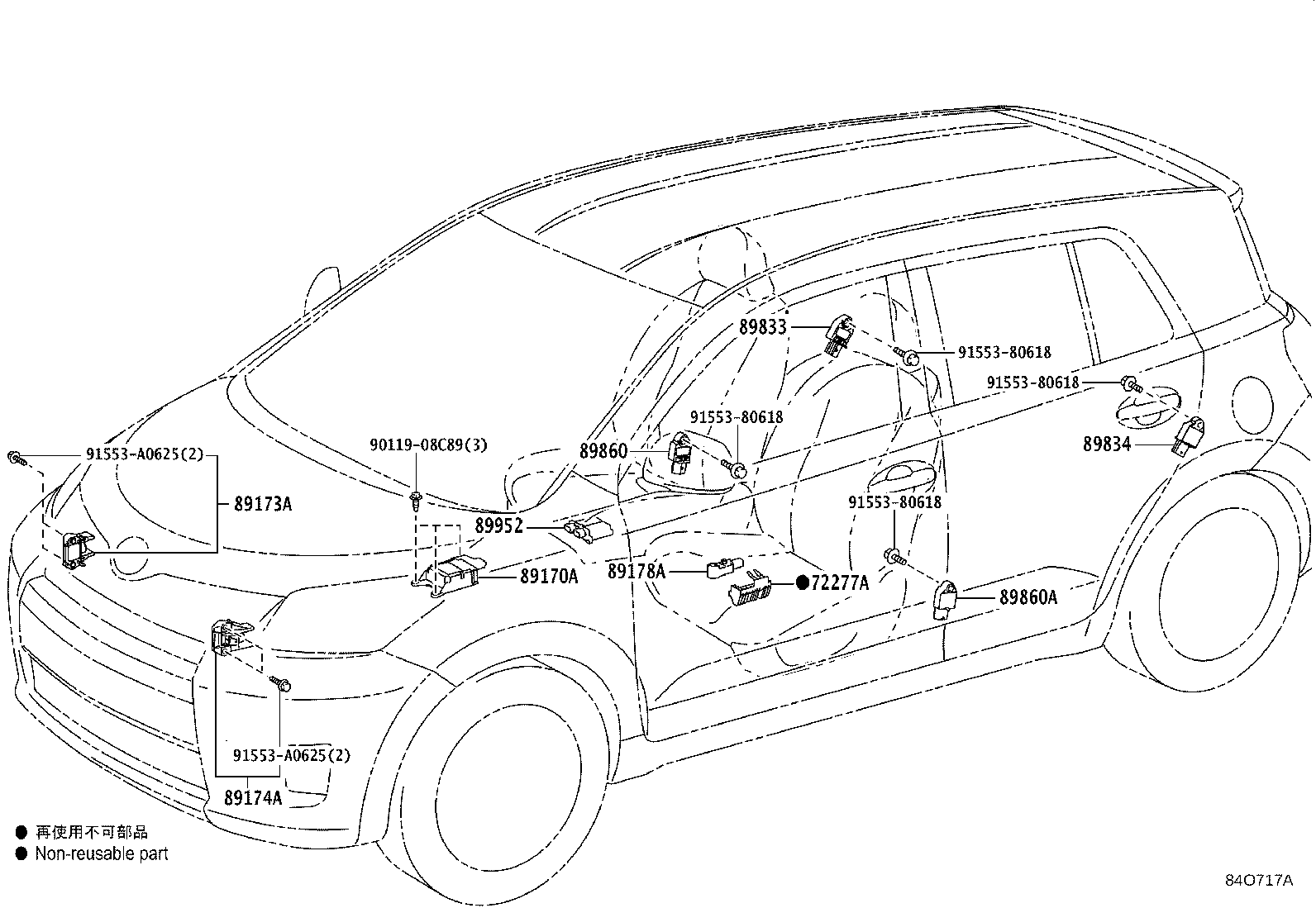

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 72277A — Protector, Seat Slide Position Sensor | ||||
| 72277-34010 |
Protector, Seat Slide Position Sensor
2007-06 → 2014-07
ended
|
ZSP110 CND | — | |
| 72277-34010 |
Protector, Seat Slide Position Sensor
2010-08 → 2014-07
ended
|
ZSP110 USA | — | |
| 72277-34010 |
Protector, Seat Slide Position Sensor
2007-06 → 2010-04
ended
|
ZSP110 | — | |
| 89170A — Computer Assy, Airbag | ||||
| 89170-52L00 |
Computer Assy, Airbag
2012-08 → 2013-07
ended
|
ZSP110 | — | |
| 89170-52N90 |
Computer Assy, Airbag
2013-08 → 2014-07
ended
|
ZSP110 | — | |
| 89173A — Sensor, Airbag, Front RH | ||||
| 89173-39375 |
Sensor, Airbag, Front RH
2007-06 → 2012-08
ended
|
ZSP110 | — | |
| 89173-59275 |
Sensor, Airbag, Front RH
2012-08 → 2014-07
ended
|
ZSP110 | — | |
| 89174A — Sensor, Airbag, Front LH | ||||
| 89173-39375 |
Sensor, Airbag, Front LH
2007-06 → 2012-08
ended
|
ZSP110 | — | |
| 89173-59275 |
Sensor, Airbag, Front LH
2012-08 → 2014-07
ended
|
ZSP110 | — | |
| 89178A — Sensor, Seat Position Airbag | ||||
| 89178-33040 |
Sensor, Seat Position Airbag
2007-06 → 2014-07
ended
|
ZSP110 CND | — | |
| 89178-33040 |
Sensor, Seat Position Airbag
2010-08 → 2014-07
ended
|
ZSP110 USA | — | |
| 89178-33040 |
Sensor, Seat Position Airbag
2007-06 → 2010-04
ended
|
ZSP110 | — | |
| 89833 — Sensor, Airbag, Rear RH | ||||
| 89831-33020 |
Sensor, Airbag, Rear RH
2007-06 → 2012-08
ended
|
ZSP110 | — | |
| 89831-52020 |
Sensor, Airbag, Rear RH
2012-08 → 2014-07
ended
|
ZSP110 | — | |
| 89834 — Sensor, Airbag, Rear LH | ||||
| 89831-33020 |
Sensor, Airbag, Rear LH
2007-06 → 2012-08
ended
|
ZSP110 | — | |
| 89831-52020 |
Sensor, Airbag, Rear LH
2012-08 → 2014-07
ended
|
ZSP110 | — | |
| 89860 — Sensor Assy, Side Airbag, RH | ||||
| 89831-28020 |
Sensor Assy, Side Airbag, RH
2007-06 → 2012-08
ended
|
ZSP110 | — | |
| 89831-52020 |
Sensor Assy, Side Airbag, RH
2012-08 → 2014-07
ended
|
ZSP110 | — | |
| 89860A — Sensor Assy, Side Airbag, LH | ||||
| 89831-28020 |
Sensor Assy, Side Airbag, LH
2007-06 → 2012-08
ended
|
ZSP110 | — | |
| 89831-52020 |
Sensor Assy, Side Airbag, LH
2012-08 → 2014-07
ended
|
ZSP110 | — | |
| 89952 — Computer, Occupant Detection | ||||
| 89952-35011 |
Computer, Occupant Detection
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
