Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

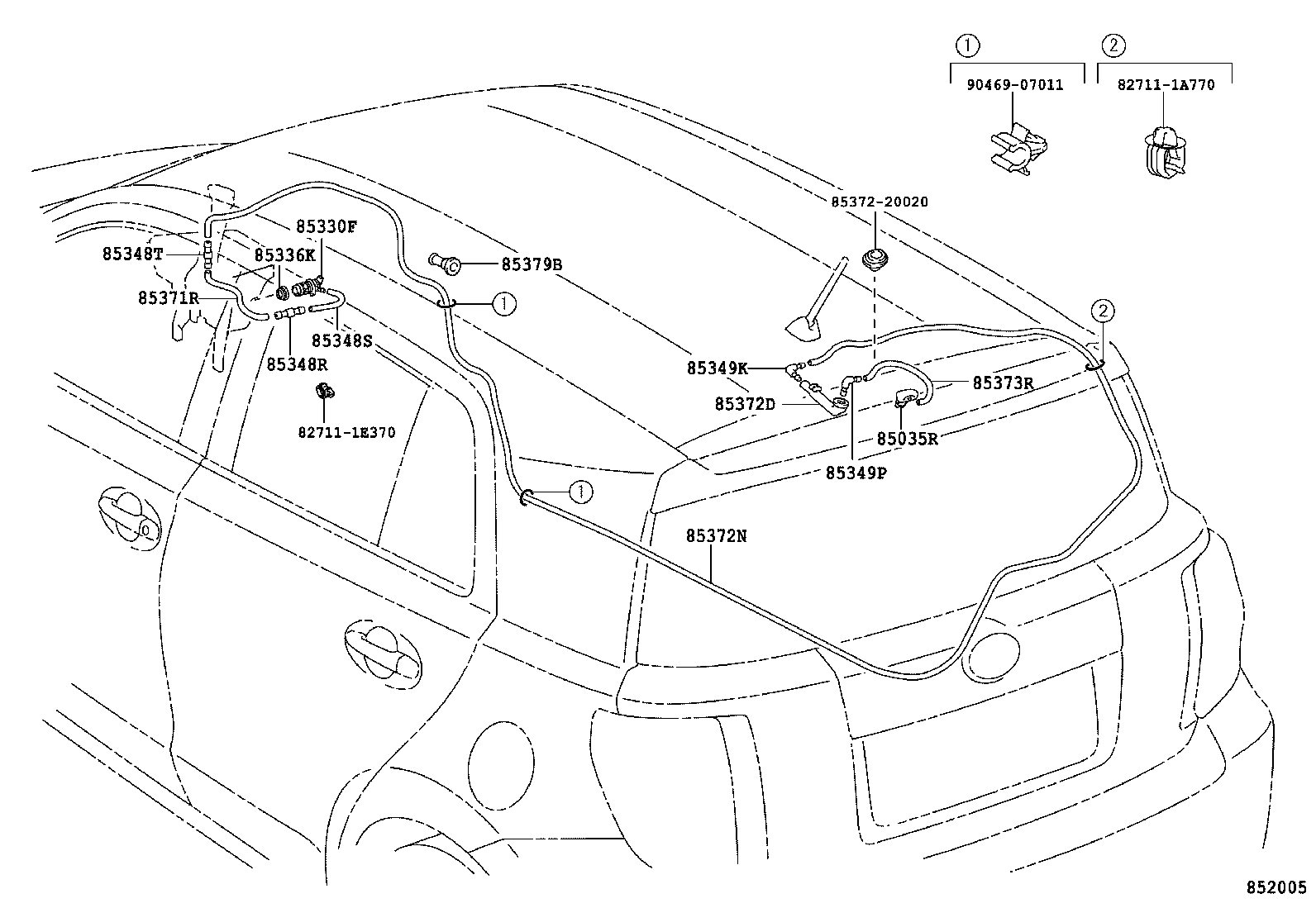

Exploded illustration 852005 827111E370 — not listed in this catalogue 85035R — NOZZLE SUB-ASSY, REAR WASHER (1 parts) 85330F — MOTOR & PUMP ASSY, RR WASHER (1 parts) 85336K — PROTECTOR, WASHER JAR (1 parts) 85348R — JOINT, REAR WASHER HOSE, NO.1 (1 parts) 85348S — JOINT, REAR WASHER ELBOW, NO.1 (1 parts) 85348T — JOINT, REAR WASHER HOSE, NO.2 (1 parts) 85349K — JOINT, REAR WASHER ELBOW, NO.2 (1 parts) 85349P — JOINT, REAR WASHER ELBOW, NO.3 (1 parts) 85371R — HOSE, REAR WASHER (FROM MOTOR TO JOINT) (1 parts) 85372D — GROMMET, REAR WASHER HOSE (1 parts) 85372N — HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1 (1 parts) 85373R — HOSE, REAR WASHER (FROM JOINT TO NOZZLE) (1 parts) 85379B — GROMMET, WASHER, A (1 parts) 9046907011 — not listed in this catalogue 827111A770 — not listed in this catalogue 8537220020 — not listed in this catalogue
852005 · 13 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
13 parts on this figure
Part number Description Fitment Price
85035R — Nozzle Sub-assy, Rear Washer
85391-52140 Nozzle Sub-assy, Rear Washer
2007-06 → 2014-07 ended
ZSP110 —
85330F — Motor & Pump Assy, RR Washer
85330-60180 Motor & Pump Assy, RR Washer
2007-06 → 2014-07 ended
ZSP110 —
85336K — Protector, Washer Jar
85336-60300 Protector, Washer Jar
2007-06 → 2014-07 ended
ZSP110 —
85348R — Joint, Rear Washer Hose, NO.1
85349-89122 Joint, Rear Washer Hose, NO.1
2007-06 → 2014-07 ended
ZSP110 —
85348S — Joint, Rear Washer Elbow, NO.1
85336-12230 Joint, Rear Washer Elbow, NO.1
2007-06 → 2014-07 ended
ZSP110 —
85348T — Joint, Rear Washer Hose, NO.2
85349-89122 Joint, Rear Washer Hose, NO.2
2007-06 → 2014-07 ended
ZSP110 —
85349K — Joint, Rear Washer Elbow, NO.2
85355-20200 Joint, Rear Washer Elbow, NO.2
2007-06 → 2014-07 ended
ZSP110 —
85349P — Joint, Rear Washer Elbow, NO.3
85355-20200 Joint, Rear Washer Elbow, NO.3
2007-06 → 2014-07 ended
ZSP110 —
85371R — Hose, Rear Washer (FROM MOTOR TO JOINT)
90099-33080 note Hose, Rear Washer (FROM MOTOR TO JOINT)
2007-06 → 2014-07 ended
ZSP110 —
85372D — Grommet, Rear Washer Hose
85372-20040 Grommet, Rear Washer Hose
2007-06 → 2014-07 ended
ZSP110 —
85372N — Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
90446-07001 note Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
2007-06 → 2014-07 ended
ZSP110 —
85373R — Hose, Rear Washer (FROM JOINT TO NOZZLE)
90099-33080 note Hose, Rear Washer (FROM JOINT TO NOZZLE)
2007-06 → 2014-07 ended
ZSP110 —
85379B — Grommet, Washer, A
85379-52351 Grommet, Washer, A
2007-06 → 2014-07 ended
ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
