Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

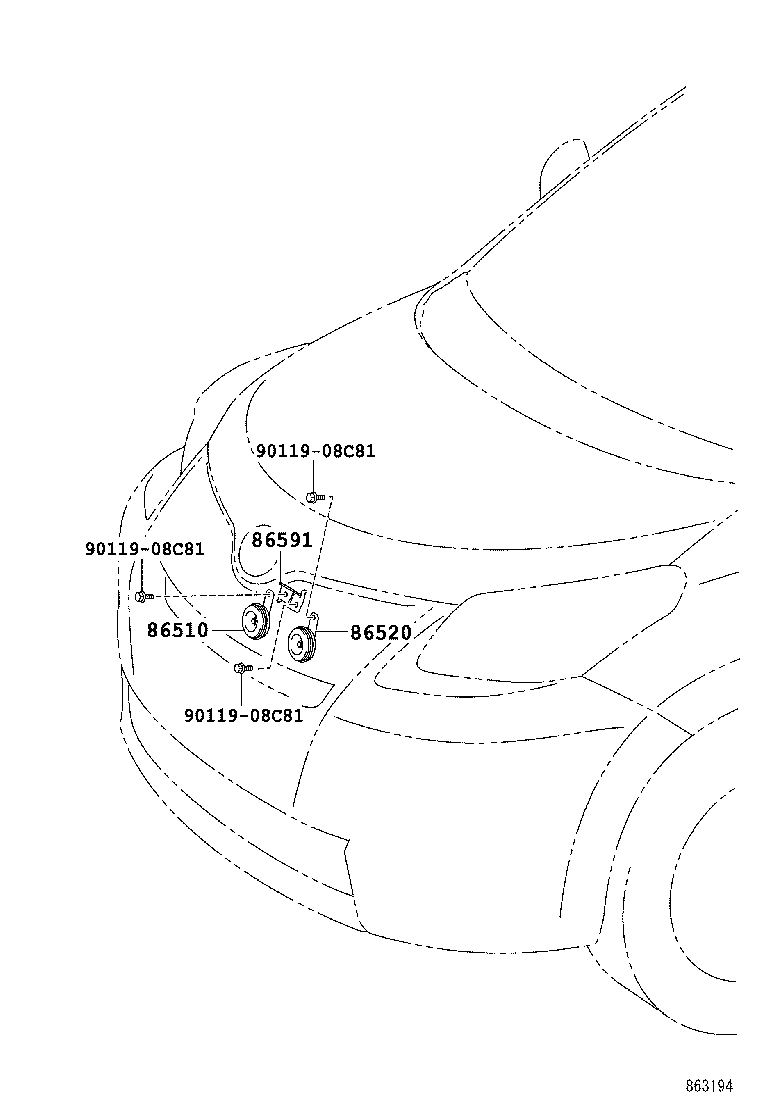

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86510 — Horn Assy, High Pitched | ||||
| 86510-20280 |
Horn Assy, High Pitched
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 86520 — Horn Assy, Low Pitched | ||||
| 86520-20300 |
Horn Assy, Low Pitched
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 86591 — Bracket, Horn | ||||
| 86591-52050 |
Bracket, Horn
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
