Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

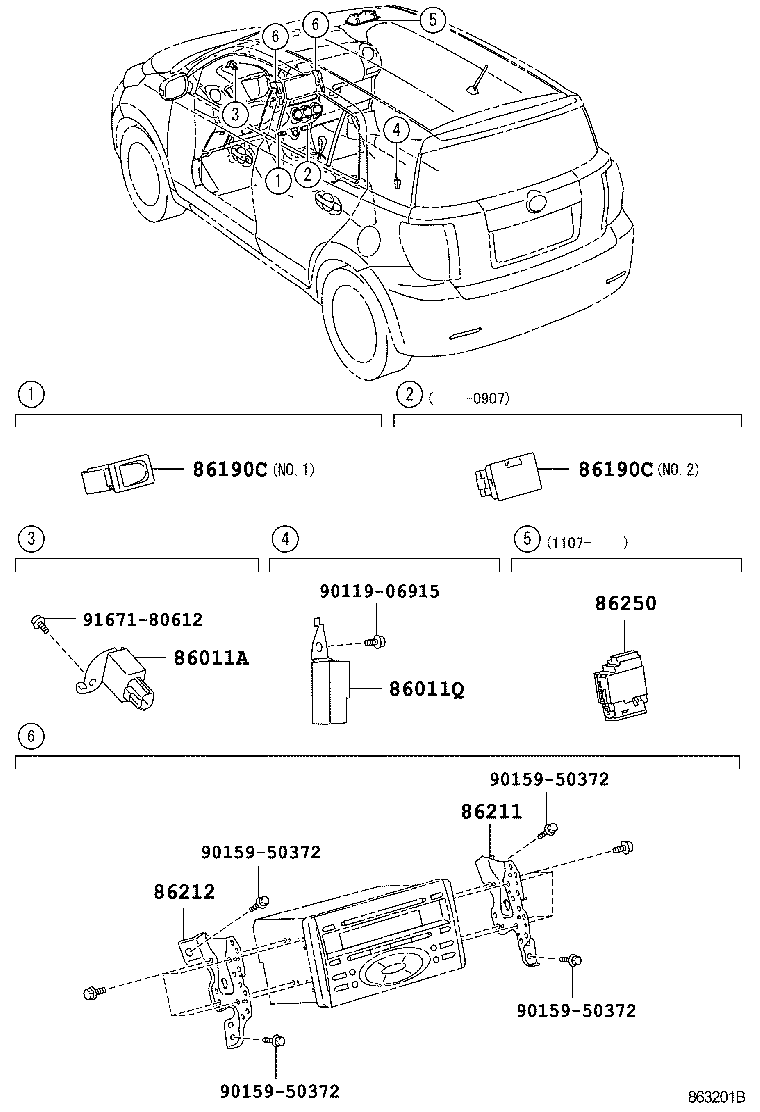

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86011A — Condenser, Radio Setting | ||||
| 90980-04194 |
Condenser, Radio Setting
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 86011Q — Condenser, Radio Setting | ||||
| 90980-04148 |
Condenser, Radio Setting
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 86190C — Adapter Assy, Stereo Jack, NO.1 | ||||
| 86190-48010 note |
Adapter Assy, Stereo Jack, NO.1
2007-06 → 2009-07
ended
|
ZSP110 | — | |
| 86190-48030 note |
Adapter Assy, Stereo Jack, NO.1
2009-07 → 2014-07
ended
|
ZSP110 | — | |
| 86190-52030 note |
Adapter Assy, Stereo Jack, NO.1
2007-06 → 2009-07
ended
|
ZSP110 | — | |
| 86211 — Bracket, Radio, NO.1 | ||||
| 86211-52240 |
Bracket, Radio, NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 86212 — Bracket, Radio, NO.2 | ||||
| 86212-52250 |
Bracket, Radio, NO.2
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 86250 — Microphone Assy, Amplifier | ||||
| 86250-52050 |
Microphone Assy, Amplifier
2011-08 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
