Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

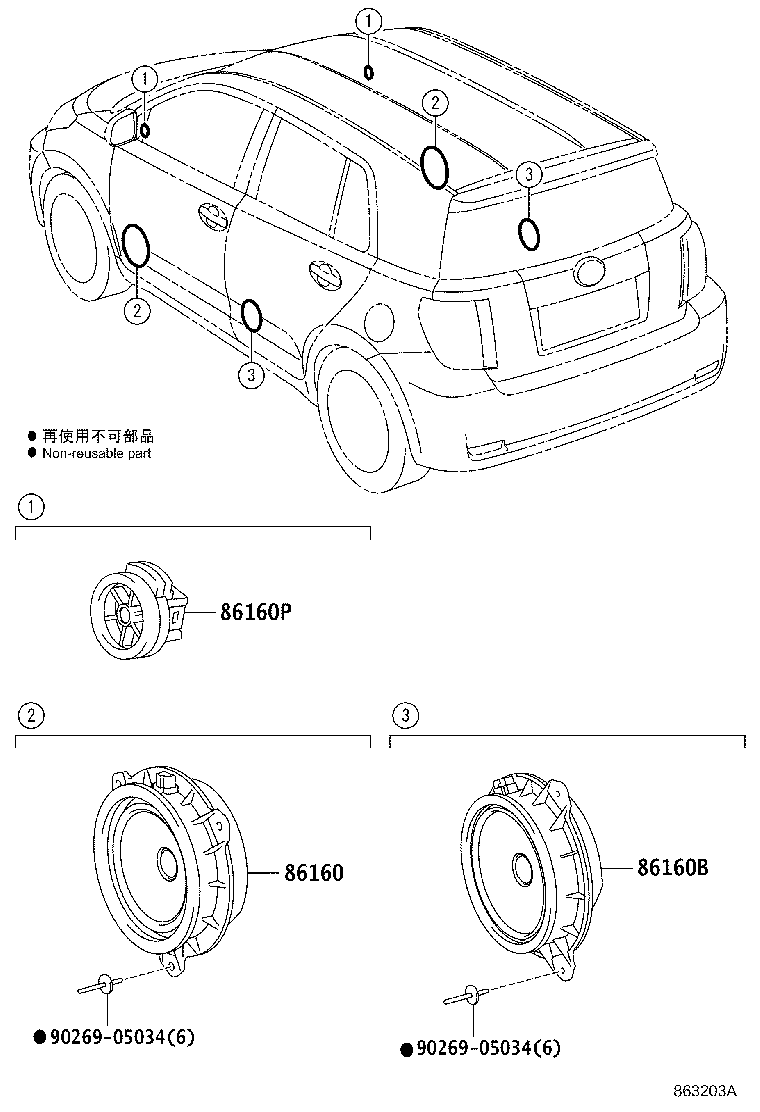

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86160 — Speaker Assy, Front NO.1 | ||||
| 86160-33620 |
Speaker Assy, Front NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 86160B — Speaker Assy, Rear | ||||
| 86160-13080 |
Speaker Assy, Rear
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 86160P — Speaker Assy, Front NO.2 | ||||
| 86160-68010 |
Speaker Assy, Front NO.2
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
