Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

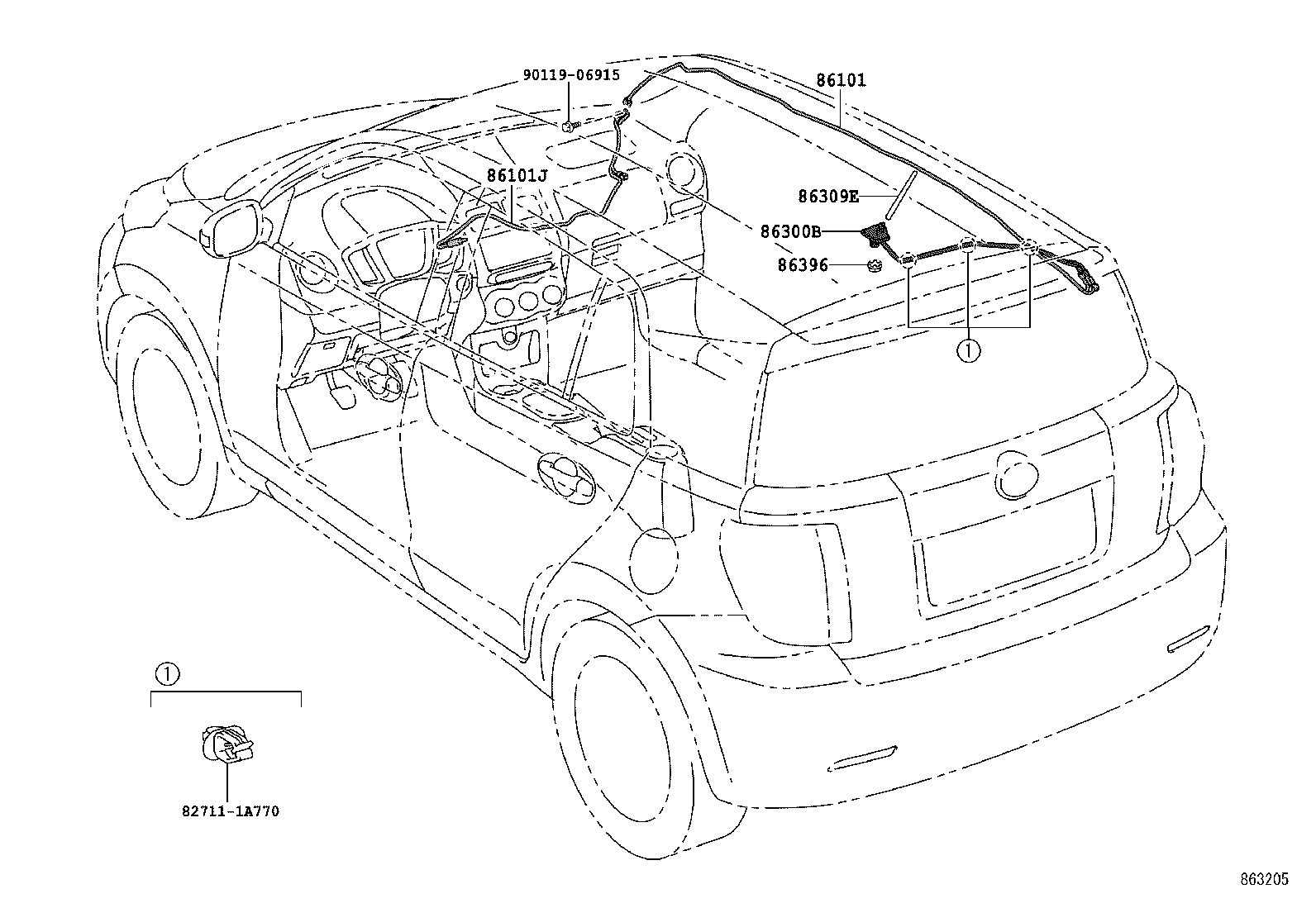

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 86101 — Cord Sub-assy, Antenna | ||||
| 86101-52620 |
Cord Sub-assy, Antenna
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 86101J — Cord Sub-assy, Antenna, NO.2 | ||||
| 86101-52640 |
Cord Sub-assy, Antenna, NO.2
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 86300B — Antenna Assy, Amplifier, NO.1 | ||||
| 86300-52400 |
Antenna Assy, Amplifier, NO.1
2007-06 → 2011-08
ended
|
ZSP110 | — | |
| 86300-52401 |
Antenna Assy, Amplifier, NO.1
2011-08 → 2014-07
ended
|
ZSP110 | — | |
| 86309E — Pole Sub-assy, Roof Antenna | ||||
| 86309-48040 |
Pole Sub-assy, Roof Antenna
2007-06 → 2011-08
ended
|
ZSP110 | — | |
| 86309-68020 |
Pole Sub-assy, Roof Antenna
2011-08 → 2014-07
ended
|
ZSP110 | — | |
| 86396 — Nut, Antenna | ||||
| 86396-20040 |
Nut, Antenna
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
