Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

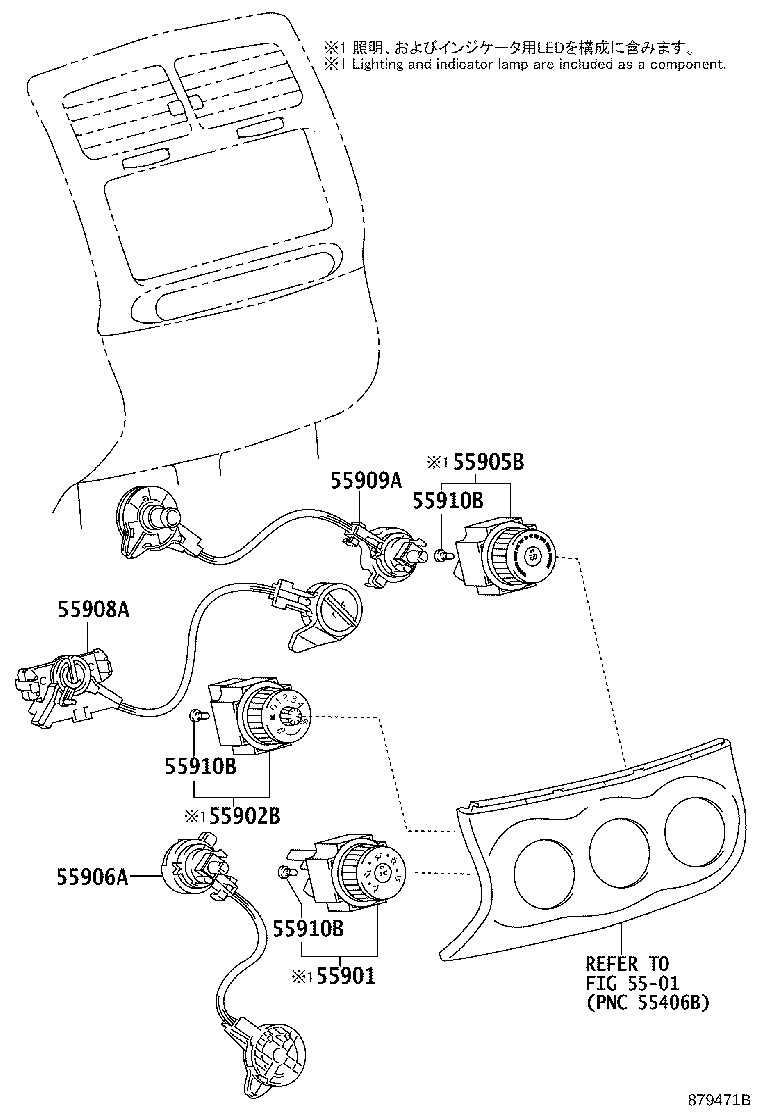

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55901 — Base Sub-assy, Heater Control | ||||
| 55901-52240 |
Base Sub-assy, Heater Control
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55902B — Control Sub-assy, Heater | ||||
| 55902-52090 |
Control Sub-assy, Heater
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55905B — Knob, Heater Control, NO.2 | ||||
| 55903-52250 |
Knob, Heater Control, NO.2
2007-06 → 2010-07
ended
|
ZSP110 | — | |
| 55903-52251 |
Knob, Heater Control, NO.2
2010-08 → 2014-07
ended
|
ZSP110 | — | |
| 55906A — Cable Sub-assy, Defroster Damper Control | ||||
| 55906-52132 |
Cable Sub-assy, Defroster Damper Control
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55908A — Cable Sub-assy, Air Inlet Damper Control | ||||
| 55908-52120 |
Cable Sub-assy, Air Inlet Damper Control
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55909A — Cable Sub-assy, Airmix Damper Control | ||||
| 55909-52120 |
Cable Sub-assy, Airmix Damper Control
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55910B — Bulb, Heater Control | ||||
| 90010-01142 |
Bulb, Heater Control
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
