Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

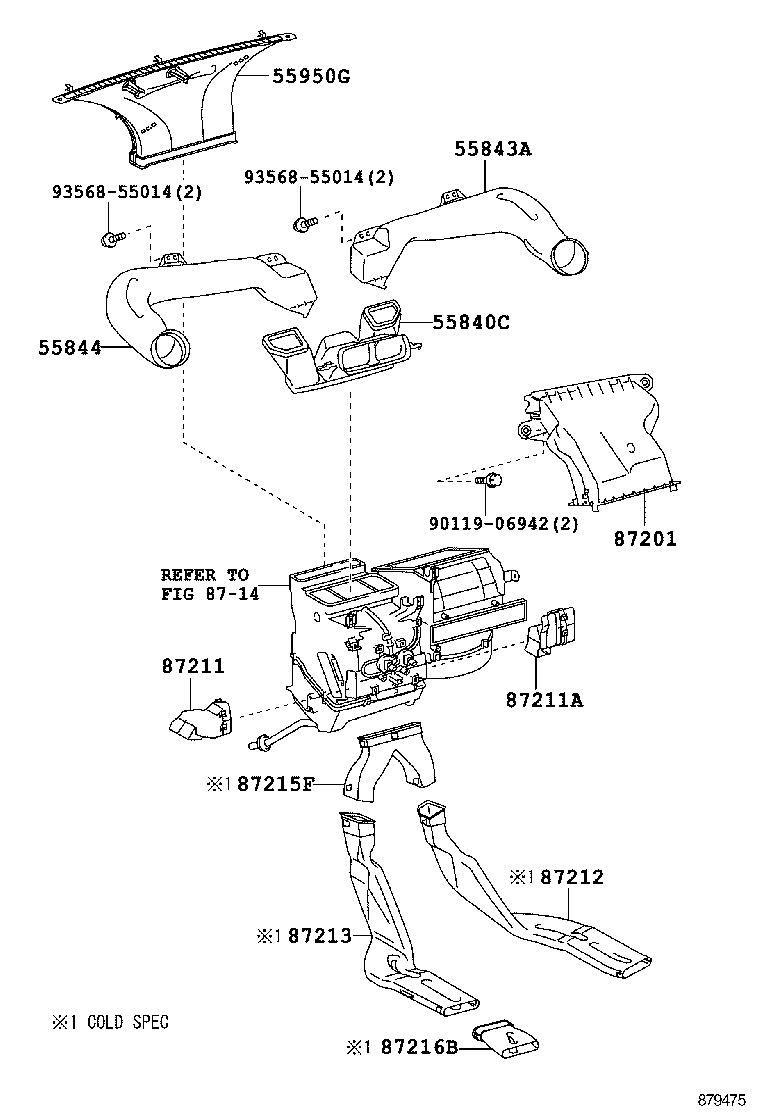

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 55840C — Duct Assy, Heater TO Register, NO.6 | ||||
| 55840-52070 |
Duct Assy, Heater TO Register, NO.6
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55843A — Duct, Heater TO Register, NO.1 | ||||
| 55843-52310 |
Duct, Heater TO Register, NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55844 — Duct, Heater TO Register, NO.2 | ||||
| 55844-52210 |
Duct, Heater TO Register, NO.2
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 55950G — Nozzle Assy, Defroster | ||||
| 55950-52150 |
Nozzle Assy, Defroster
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 87201 — Duct Sub-assy, Air, NO.1 | ||||
| 87201-52080 |
Duct Sub-assy, Air, NO.1
2007-06 → 2011-11
ended
|
ZSP110 | — | |
| 87201-52081 |
Duct Sub-assy, Air, NO.1
2011-12 → 2014-07
ended
|
ZSP110 | — | |
| 87211 — Duct, Air, NO.1 | ||||
| 87211-52030 |
Duct, Air, NO.1
2007-06 → 2012-05
ended
|
ZSP110 | — | |
| 87211-52031 |
Duct, Air, NO.1
2012-06 → 2014-07
ended
|
ZSP110 | — | |
| 87211A — Duct, Air, NO.2 | ||||
| 87211-52040 |
Duct, Air, NO.2
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 87212 — Duct, Air, Rear NO.1 | ||||
| 87212-52100 |
Duct, Air, Rear NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 87213 — Duct, Air, Rear NO.2 | ||||
| 87213-52070 |
Duct, Air, Rear NO.2
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 87215F — Duct, Air, Rear NO.3 | ||||
| 87215-52050 |
Duct, Air, Rear NO.3
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 87216B — Duct, Air, Rear NO.4 | ||||
| 87216-52040 |
Duct, Air, Rear NO.4
2007-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
