Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

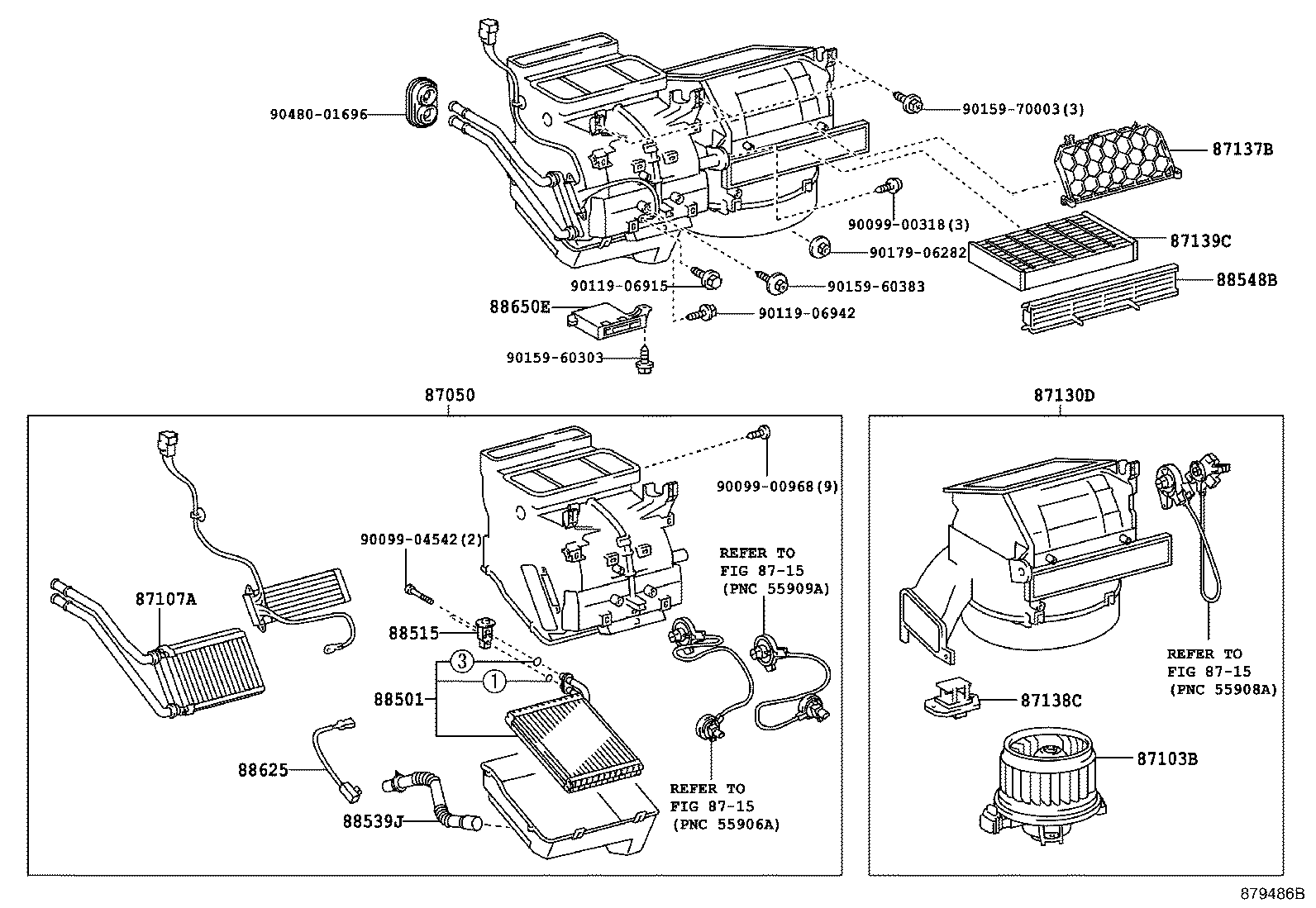

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 87050 — Radiator Assy, Air Conditioner | ||||
| 87050-52083 |
Radiator Assy, Air Conditioner
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 87103B — Motor Sub-assy, Blower W/Fan | ||||
| 87103-52140 |
Motor Sub-assy, Blower W/Fan
2007-06 → 2010-08
ended
|
ZSP110 | — | |
| 87103-52140 |
Motor Sub-assy, Blower W/Fan
2007-06 → 2010-09
ended
|
ZSP110 CND | — | |
| 87103-52141 |
Motor Sub-assy, Blower W/Fan
2010-09 → 2014-07
ended
|
ZSP110 | — | |
| 87107A — Unit Sub-assy, Heater Radiator | ||||
| 87107-52060 |
Unit Sub-assy, Heater Radiator
2007-06 → 2009-02
ended
|
ZSP110 | — | |
| 87107-52061 |
Unit Sub-assy, Heater Radiator
2009-02 → 2014-07
ended
|
ZSP110 | — | |
| 87130D — Blower Assy | ||||
| 87130-52091 |
Blower Assy
2007-06 → 2008-07
ended
|
ZSP110 | — | |
| 87130-52092 |
Blower Assy
2008-08 → 2014-07
ended
|
ZSP110 | — | |
| 87137B — Cover, Heater Blower | ||||
| 87137-52010 |
Cover, Heater Blower
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 87138C — Resistor, Blower | ||||
| 87138-52030 |
Resistor, Blower
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 87139C — Filter, Clean Air | ||||
| 87139-52020 note |
Filter, Clean Air
2007-06 → 2012-06
ended
|
ZSP110 USA | — | |
| 87139-52040 note |
Filter, Clean Air
2012-06 → 2014-07
ended
|
ZSP110 USA | — | |
| 88501 — Evaporator Sub-assy, Cooler, NO.1 | ||||
| 88501-52100 |
Evaporator Sub-assy, Cooler, NO.1
2007-06 → 2008-05
ended
|
ZSP110 | — | |
| 88501-52101 |
Evaporator Sub-assy, Cooler, NO.1
2008-06 → 2010-12
ended
|
ZSP110 | — | |
| 88501-52102 |
Evaporator Sub-assy, Cooler, NO.1
2011-01 → 2011-11
ended
|
ZSP110 | — | |
| 88501-52103 |
Evaporator Sub-assy, Cooler, NO.1
2011-12 → 2014-07
ended
|
ZSP110 | — | |
| 88515 — Valve, Cooler Expansion | ||||
| 88515-26070 |
Valve, Cooler Expansion
2007-06 → 2010-12
ended
|
ZSP110 | — | |
| 88515-68010 |
Valve, Cooler Expansion
2011-01 → 2014-07
ended
|
ZSP110 | — | |
| 88539J — Hose, Drain Cooler | ||||
| 88539-52020 |
Hose, Drain Cooler
2007-06 → 2010-12
ended
|
ZSP110 | — | |
| 88539-52040 |
Hose, Drain Cooler
2011-01 → 2014-07
ended
|
ZSP110 | — | |
| 88548B — Case, Air Filter | ||||
| 88548-52040 |
Case, Air Filter
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 88625 — Thermistor, Cooler, NO.1 | ||||
| 88625-26090 |
Thermistor, Cooler, NO.1
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 88650E — Amplifier Assy, Air Conditioner, NO.1 | ||||
| 88650-52361 |
Amplifier Assy, Air Conditioner, NO.1
2007-06 → 2009-06
ended
|
ZSP110 | — | |
| 88650-52640 |
Amplifier Assy, Air Conditioner, NO.1
2009-06 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
