Toyota Scion XD
2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States
Supported model
Data version 2015-01

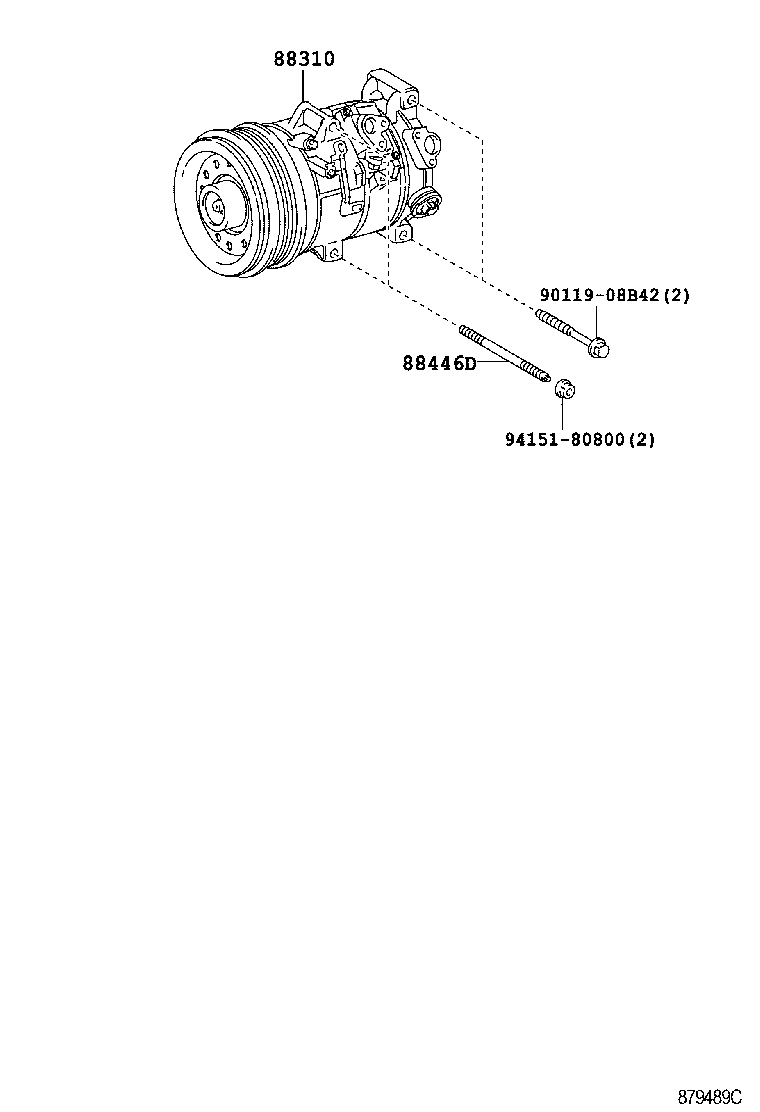

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88310 — Compressor Assy, W/Pulley | ||||
| 88310-1A660 |
Compressor Assy, W/Pulley
2007-06 → 2014-07
ended
|
ZSP110 | — | |
| 88446D — Bolt, Cooler | ||||
| 88446-12060 |
Bolt, Cooler
2007-06 → 2008-08
ended
|
ZSP110 | — | |
| 88446-12061 |
Bolt, Cooler
2008-09 → 2014-07
ended
|
ZSP110 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
