Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

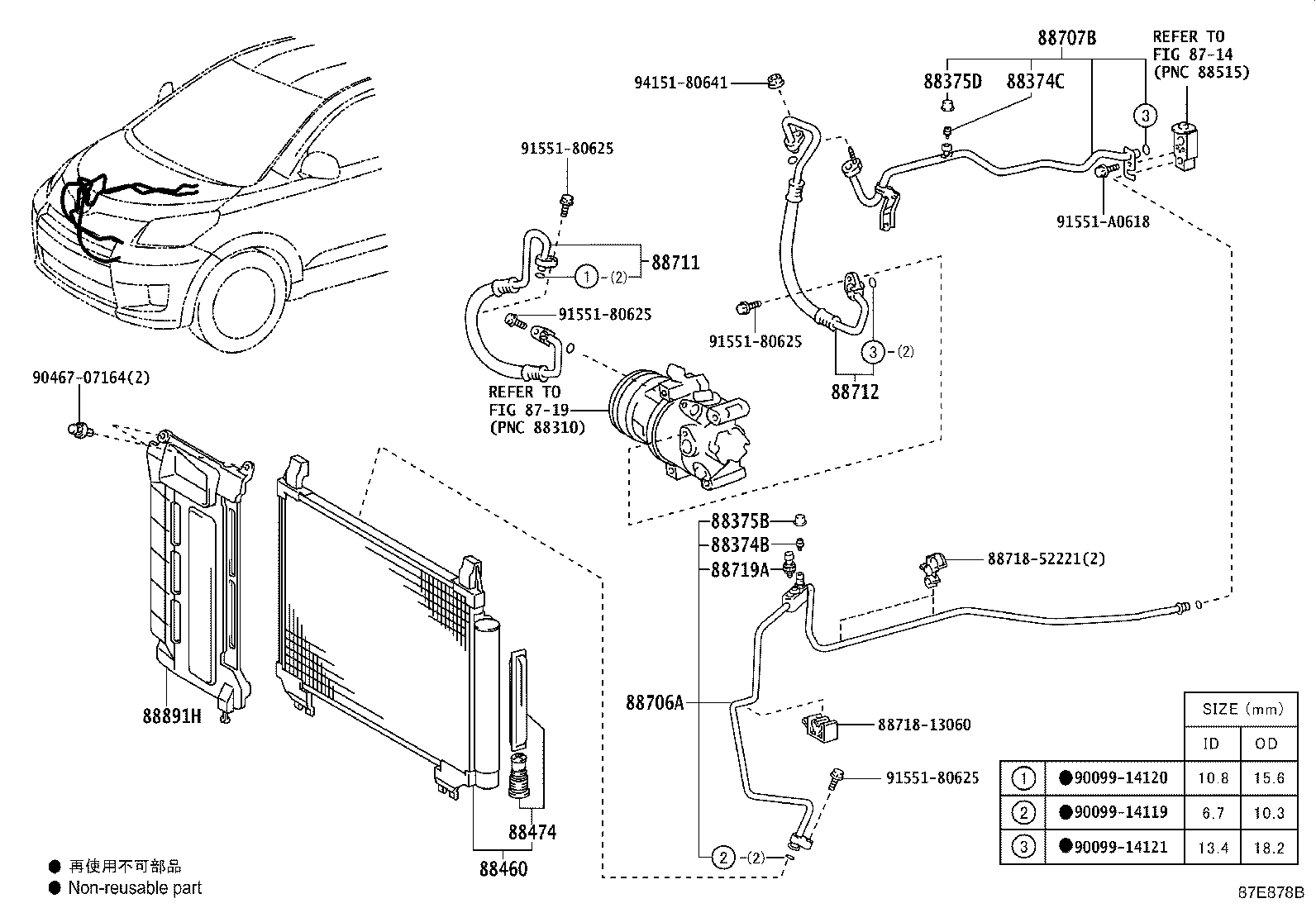

Exploded illustration 87E878B 9155180625 — not listed in this catalogue 8871852221 — not listed in this catalogue 8871813060 — not listed in this catalogue 88706A — TUBE SUB-ASSY, LIQUID, A (2 parts) 88719A — SENSOR, AIR CONDITIONER PRESSURE (1 parts) 88375B — CAP, SERVICE VALVE, NO.1 (1 parts) 88374B — VALVE, SERVICE, NO.1 (1 parts) 88707B — TUBE SUB-ASSY, SUCTION, B (1 parts) 88374C — VALVE, SERVICE, NO.2 (1 parts) 88375D — CAP, SERVICE VALVE, NO.2 (1 parts) 9155180625 — not listed in this catalogue 9046707164 — not listed in this catalogue 9415180641 — not listed in this catalogue 91551A0618 — not listed in this catalogue 88712 — HOSE, COOLER REFRIGERANT SUCTION, NO.1 (2 parts) 88460 — CONDENSER ASSY, COOLER (1 parts) 88474 — DRYER, COOLER (1 parts) 88891H — COVER, COOLER, NO.1 (1 parts) 88711 — HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 (2 parts) 9155180625 — not listed in this catalogue 9155180625 — not listed in this catalogue 8714 — not listed in this catalogue 8719 — not listed in this catalogue 9009914120 — not listed in this catalogue 9009914121 — not listed in this catalogue 9009914119 — not listed in this catalogue
87E878B · 12 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
15 parts on this figure
Part number Description Fitment Price
88374B — Valve, Service, NO.1
88374-30010 Valve, Service, NO.1
2007-06 → 2014-07 ended
ZSP110 —
88374C — Valve, Service, NO.2
88374-30010 Valve, Service, NO.2
2007-06 → 2014-07 ended
ZSP110 —
88375B — Cap, Service Valve, NO.1
88375-30280 Cap, Service Valve, NO.1
2007-06 → 2014-07 ended
ZSP110 —
88375D — Cap, Service Valve, NO.2
88375-30290 Cap, Service Valve, NO.2
2007-06 → 2014-07 ended
ZSP110 —
88460 — Condenser Assy, Cooler
88460-52130 Condenser Assy, Cooler
2007-06 → 2014-07 ended
ZSP110 —
88474 — Dryer, Cooler
88474-12030 Dryer, Cooler
2007-06 → 2014-07 ended
ZSP110 —
88706A — Tube Sub-assy, Liquid, A
88706-52441 Tube Sub-assy, Liquid, A
2007-06 → 2012-03 ended
ZSP110 —
88706-52570 Tube Sub-assy, Liquid, A
2012-03 → 2014-07 ended
ZSP110 —
88707B — Tube Sub-assy, Suction, B
88707-52140 Tube Sub-assy, Suction, B
2007-06 → 2014-07 ended
ZSP110 —
88711 — Hose, Cooler Refrigerant Discharge, NO.1
88711-52310 Hose, Cooler Refrigerant Discharge, NO.1
2007-06 → 2007-10 ended
ZSP110 —
88711-52311 Hose, Cooler Refrigerant Discharge, NO.1
2007-11 → 2014-07 ended
ZSP110 —
88712 — Hose, Cooler Refrigerant Suction, NO.1
88712-52340 Hose, Cooler Refrigerant Suction, NO.1
2007-06 → 2007-10 ended
ZSP110 —
88712-52341 Hose, Cooler Refrigerant Suction, NO.1
2007-11 → 2014-07 ended
ZSP110 —
88719A — Sensor, Air Conditioner Pressure
88719-33020 Sensor, Air Conditioner Pressure
2007-06 → 2014-07 ended
ZSP110 —
88891H — Cover, Cooler, NO.1
88891-52051 Cover, Cooler, NO.1
2007-06 → 2014-07 ended
ZSP110 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
