Toyota Scion XD

2007-06 → 2014-07 · chassis ZSP110 · catalogue 117420 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

27 part groups · 8 illustrations

Illustrations

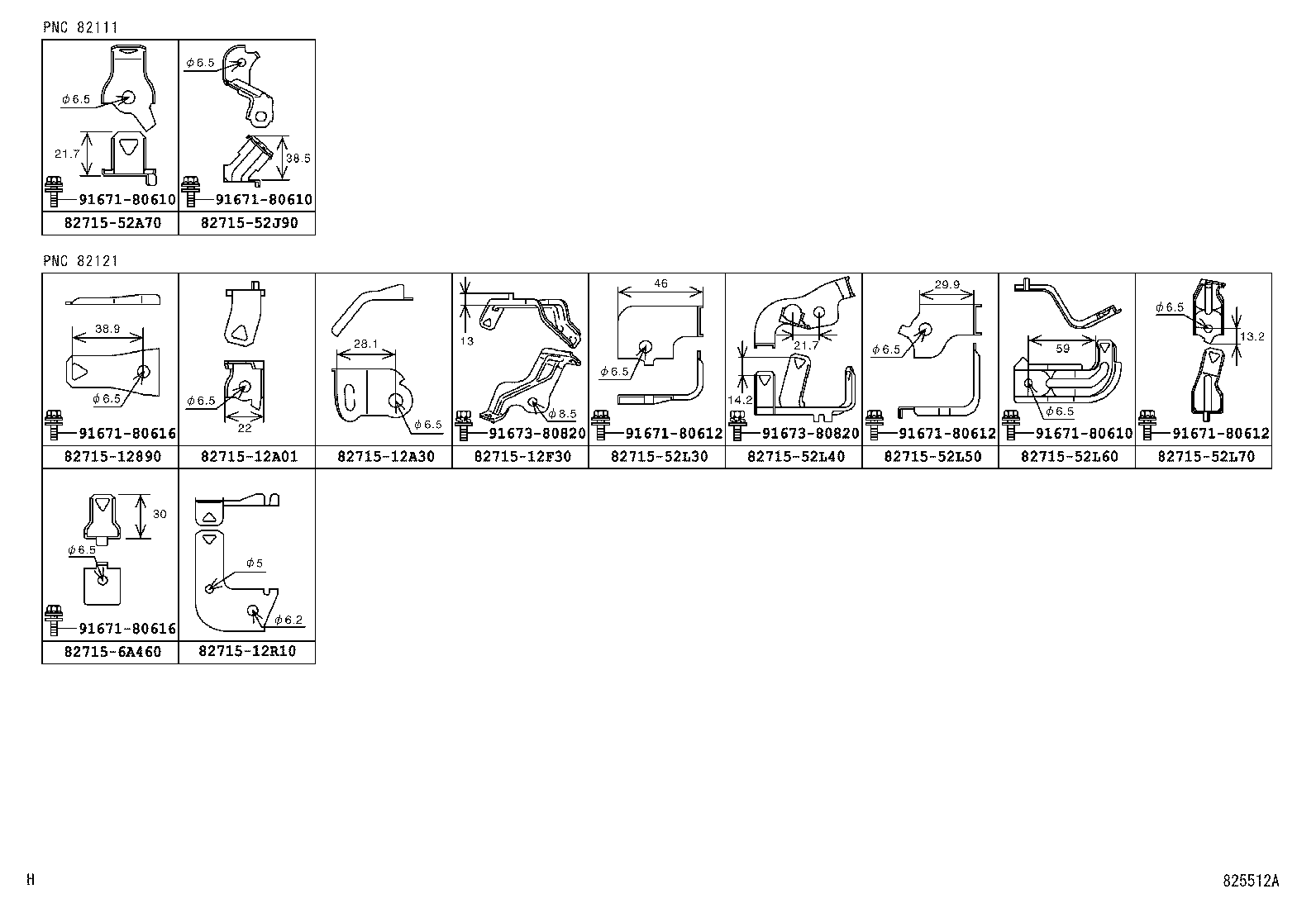

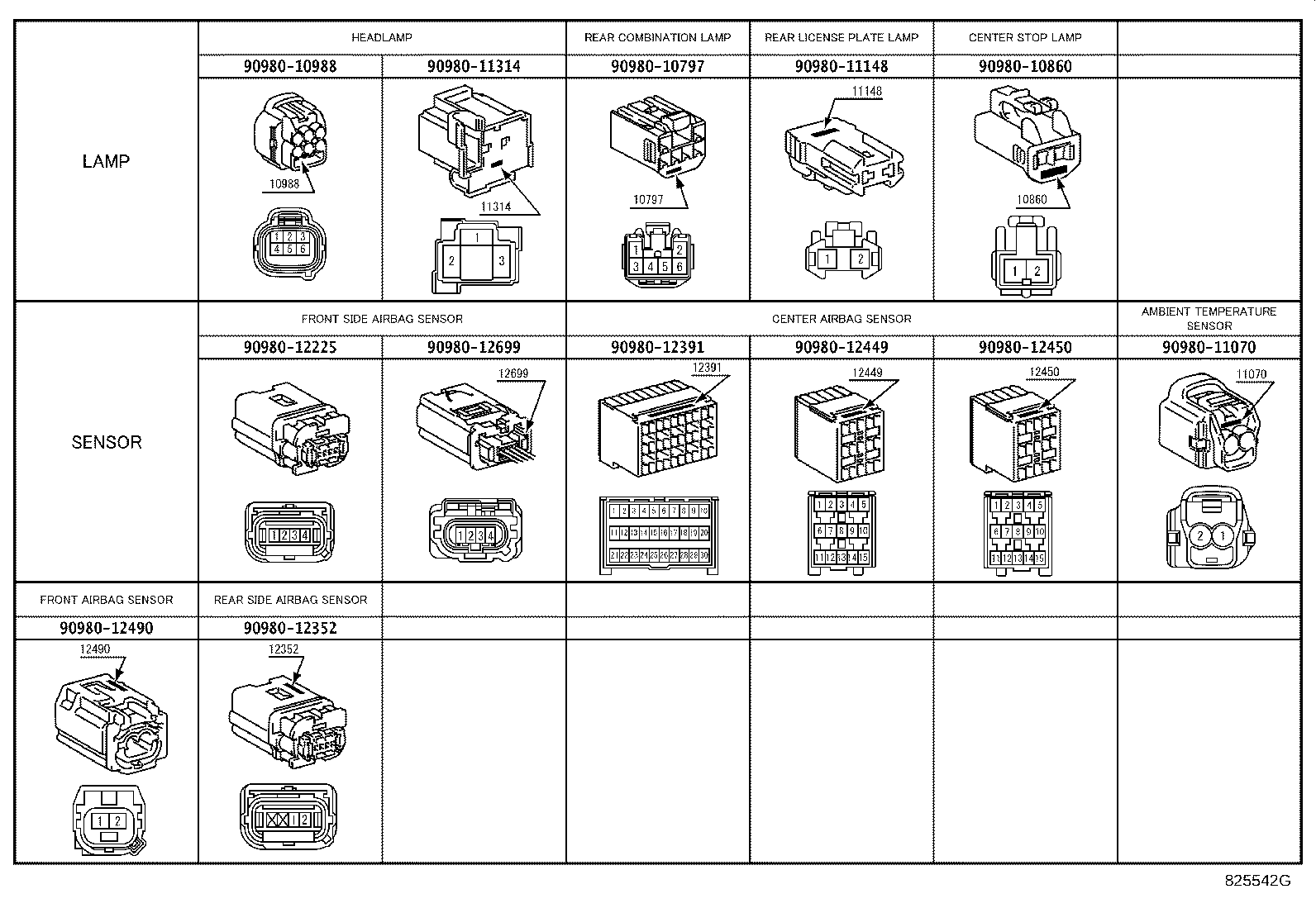

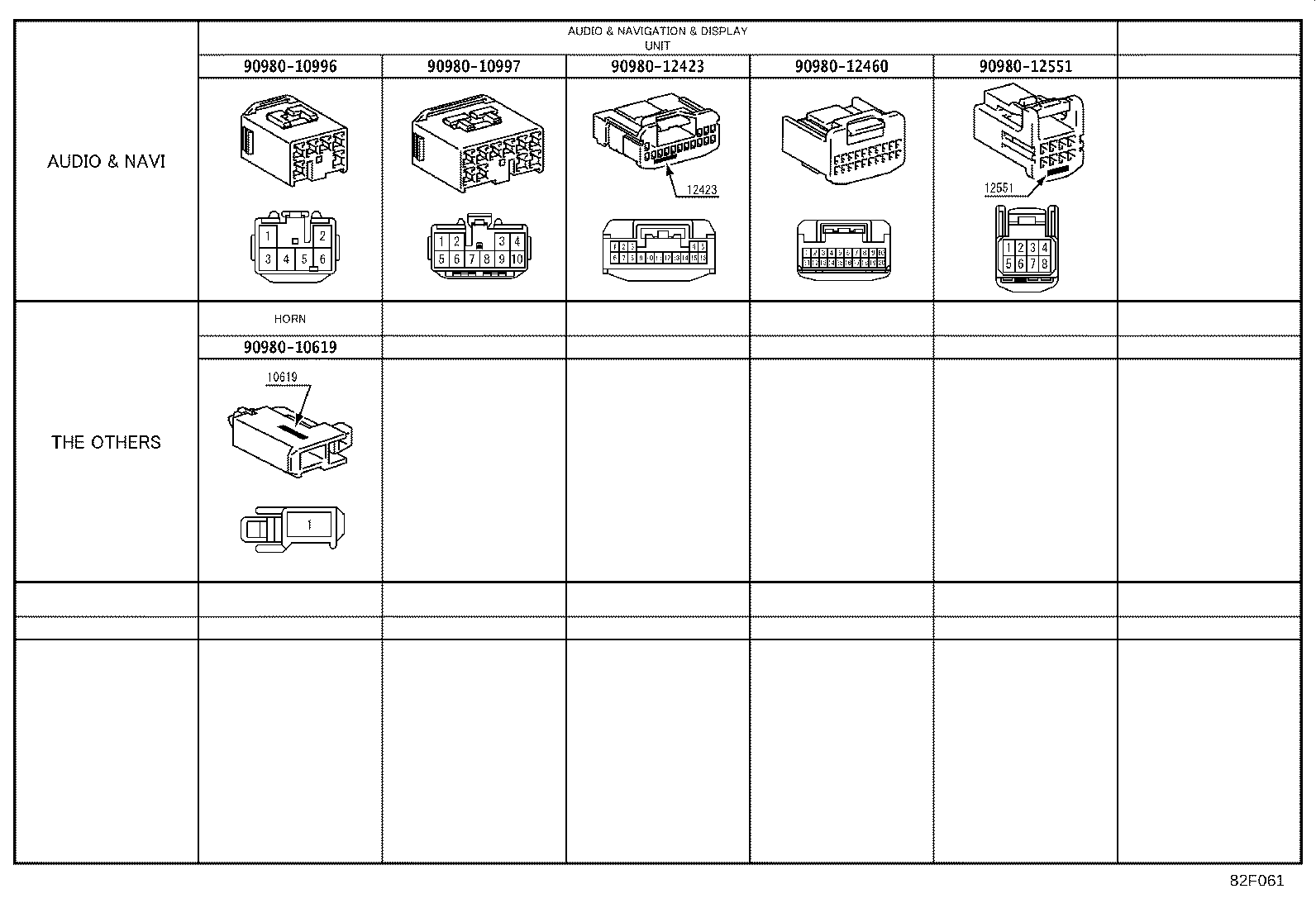

Figure 825506E 825506E 2007-06 → — Figure 825507D 825507D 2007-06 → — Figure 825508E 825508E 2007-06 → — Figure 825505 825505 2007-06 → — Figure 825511 825511 2007-06 → — Figure 825512A 825512A 2007-06 → — Figure 825542G 825542G 2007-06 → — Figure 82F061 82F061 2007-06 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112 Wire, Engine Room, NO.2
82121 Wire, Engine
82123 Wire, Engine, NO.3
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153A Wire, Rear Door, RH
82154A Wire, Rear Door, LH
82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82191 Wire, Front Seat, RH
82345A Diode
82817A Protector, Wiring Harness, NO.2
82817C Protector, Wiring Harness, NO.4
82817D Protector, Wiring Harness, NO.5
82817J Protector, Wiring Harness, NO.9
82817M Protector, Wiring Harness, NO.12
82821E Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824E Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
