Toyota Yaris GR
2020-08 → present · chassis GXPA16 · catalogue 11E210 · United States
Supported model
Data version 2024-10

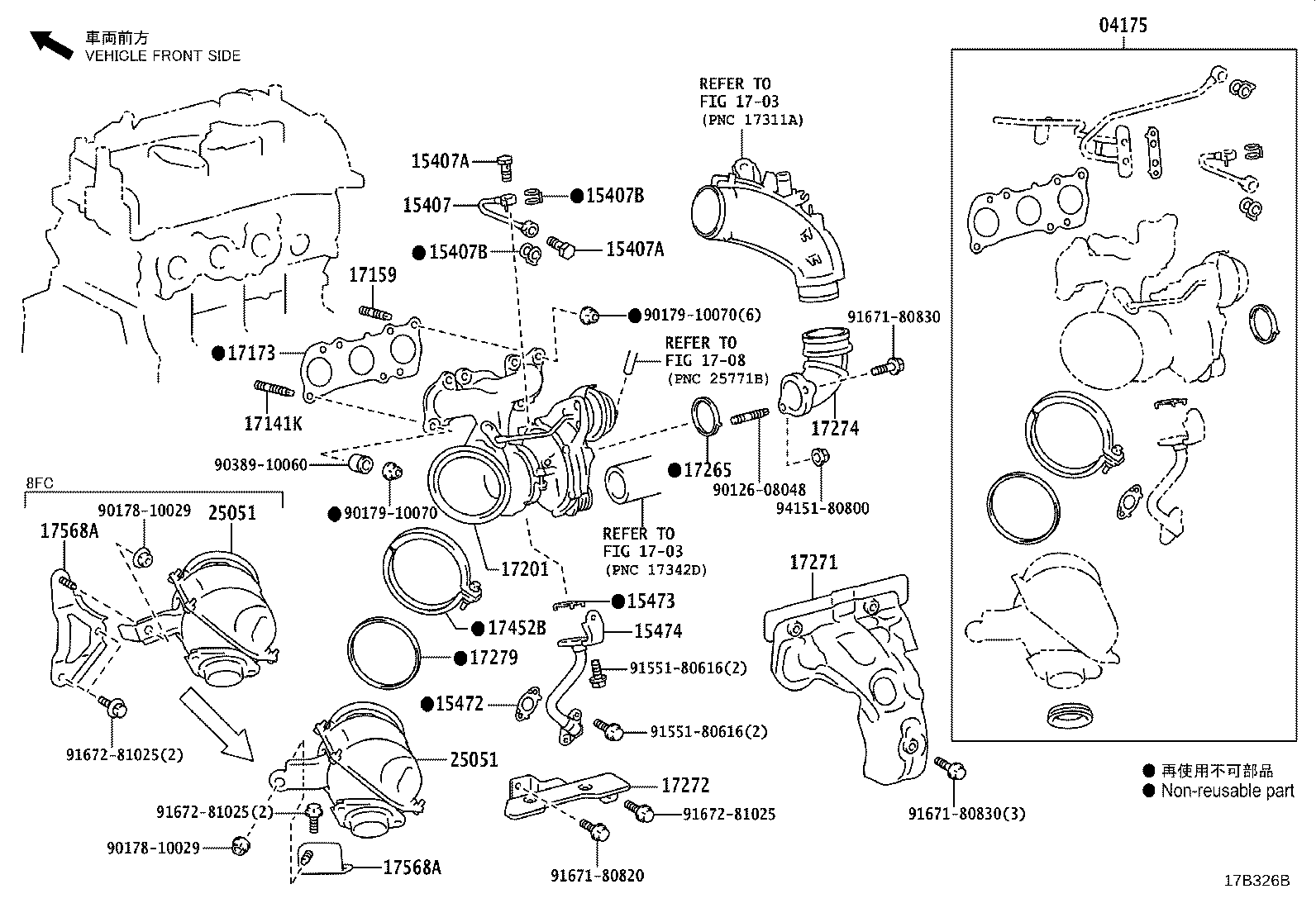

Manifold
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04175 | Gasket Kit, Turbocharger |
| 12218 | Separator, Ventilation Flange, NO.1 |
| 12632A | Bracket, Engine Cover, NO.2 |
| 15407 | Pipe Sub-assy, Turbo Oil Inlet |
| 15407A | Bolt, Union(FOR TURBO OIL INLET PIPE) |
| 15407B | Gasket(FOR TURBO OIL INLET PIPE) |
| 15472 | Gasket, Turbo Oil Outlet, NO.1 |
| 15473 | Gasket, Turbo Oil Outlet, NO.2 |
| 15474 | Pipe, Turbo Oil Outlet |
| 17111 | Manifold, Intake |
| 17111Z | Bolt, Stud(FOR INTAKE MANIFOLD TO CYLINDER HEAD) |
| 17141K | Bolt, Stud(FOR EXHAUST MANIFOLD TO CYLINDER HEAD) |
| 17159 | Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD) |
| 17172 | Gasket, Manifold TO Cylinder Head |
| 17173 | Gasket, Exhaust Manifold TO Head |
| 17177 | Gasket, Intake Manifold TO Head, NO.1 |
| 17201 | Turbocharger Sub-assy |
| 17265 | Gasket, Turbocharger |
| 17271 | Insulator, Turbo, NO.1 |
| 17272 | Insulator, Turbo, NO.2 |
| 17274 | Elbow, Compressor Inlet |
| 17279 | Gasket, Turbine Outlet Elbow |
| 17452B | Clamp, Exhaust Pipe |
| 17568A | Stay, Exhaust Pipe Support |
| 25051 | Converter Sub-assy, Exhaust Manifold |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
