Toyota Yaris GR

2020-08 → present · chassis GXPA16 · catalogue 11E210 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

5 part groups · 3 illustrations

Illustrations

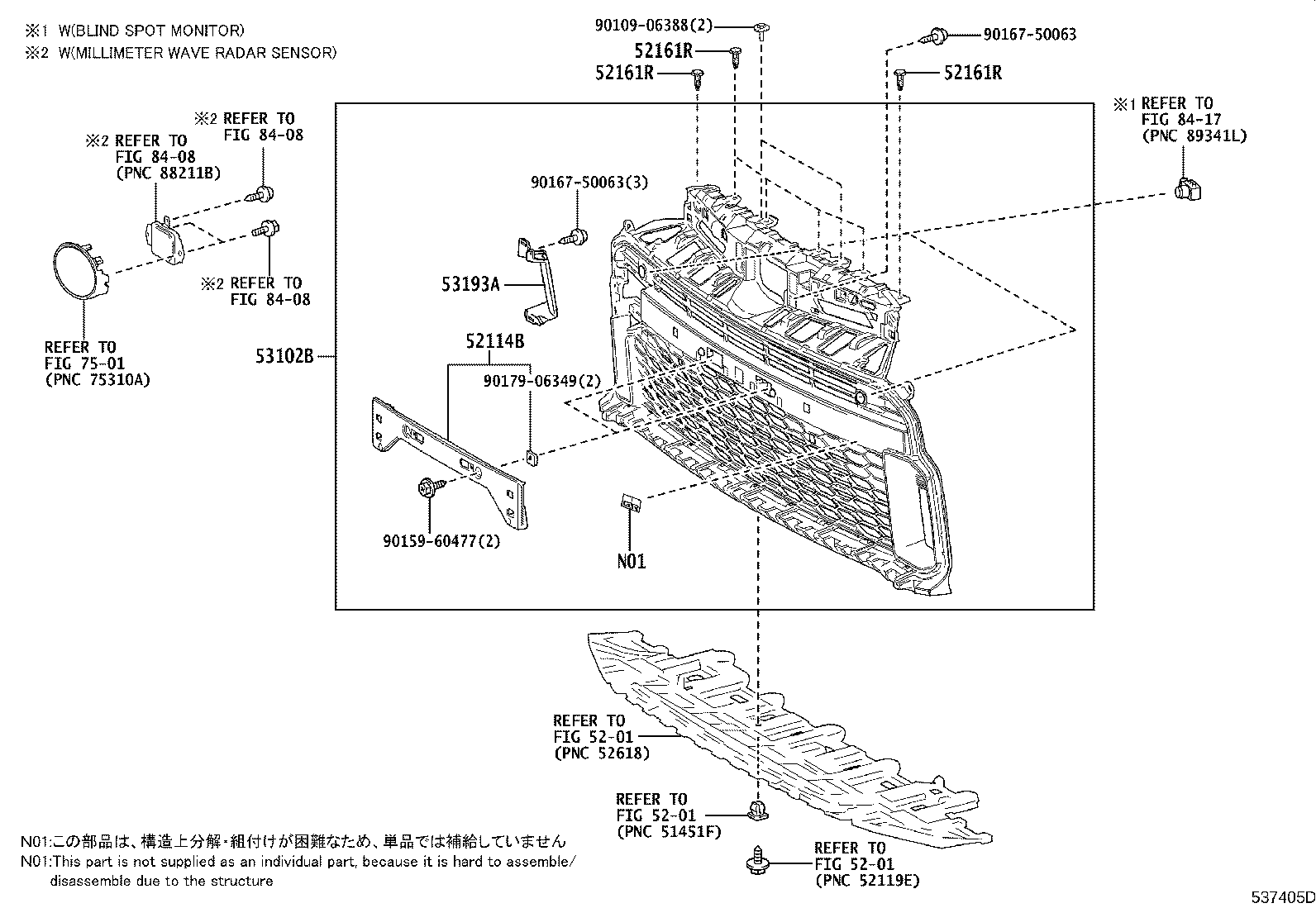

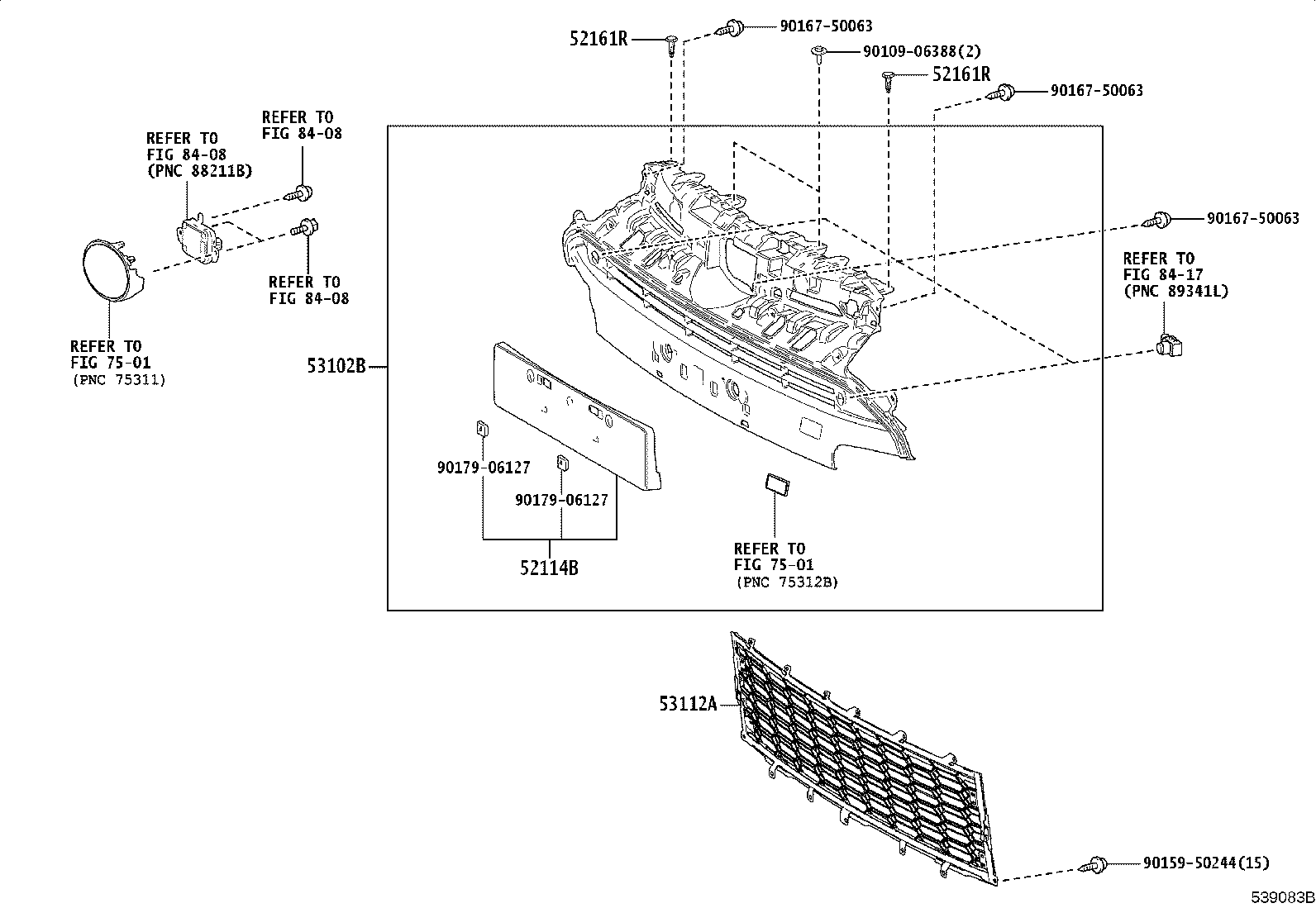

Figure 537404D 537404D 2020-08 → — Figure 537405D 537405D 2020-08 → — Figure 539083B 539083B 2024-04 → —

Part groups

PNCDescription
52114B Bracket, Front Bumper Extension Mounting
52161R Piece, Front Bumper
53102B Grille Sub-assy, Radiator, Lower
53112A Grille, Radiator, Lower
53193A Retainer, Radiator Grille, Lower RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
