Toyota Yaris GR
2020-08 → present · chassis GXPA16 · catalogue 11E210 · United States
Supported model
Data version 2024-10
Armrest & Visor
9 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

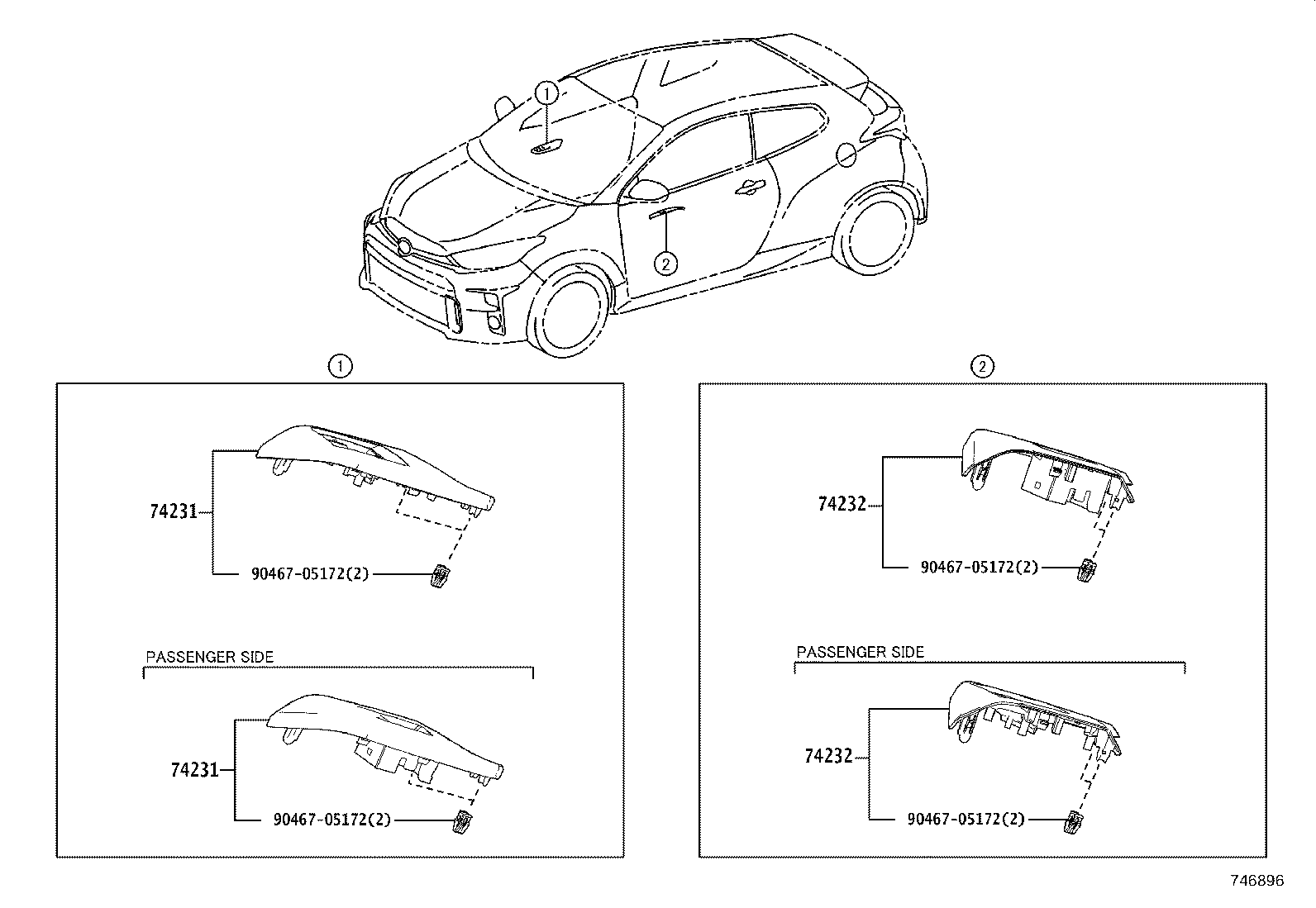

| 74231 | Panel, Front Armrest Base, Upper RH |
| 74232 | Panel, Front Armrest Base, Upper LH |

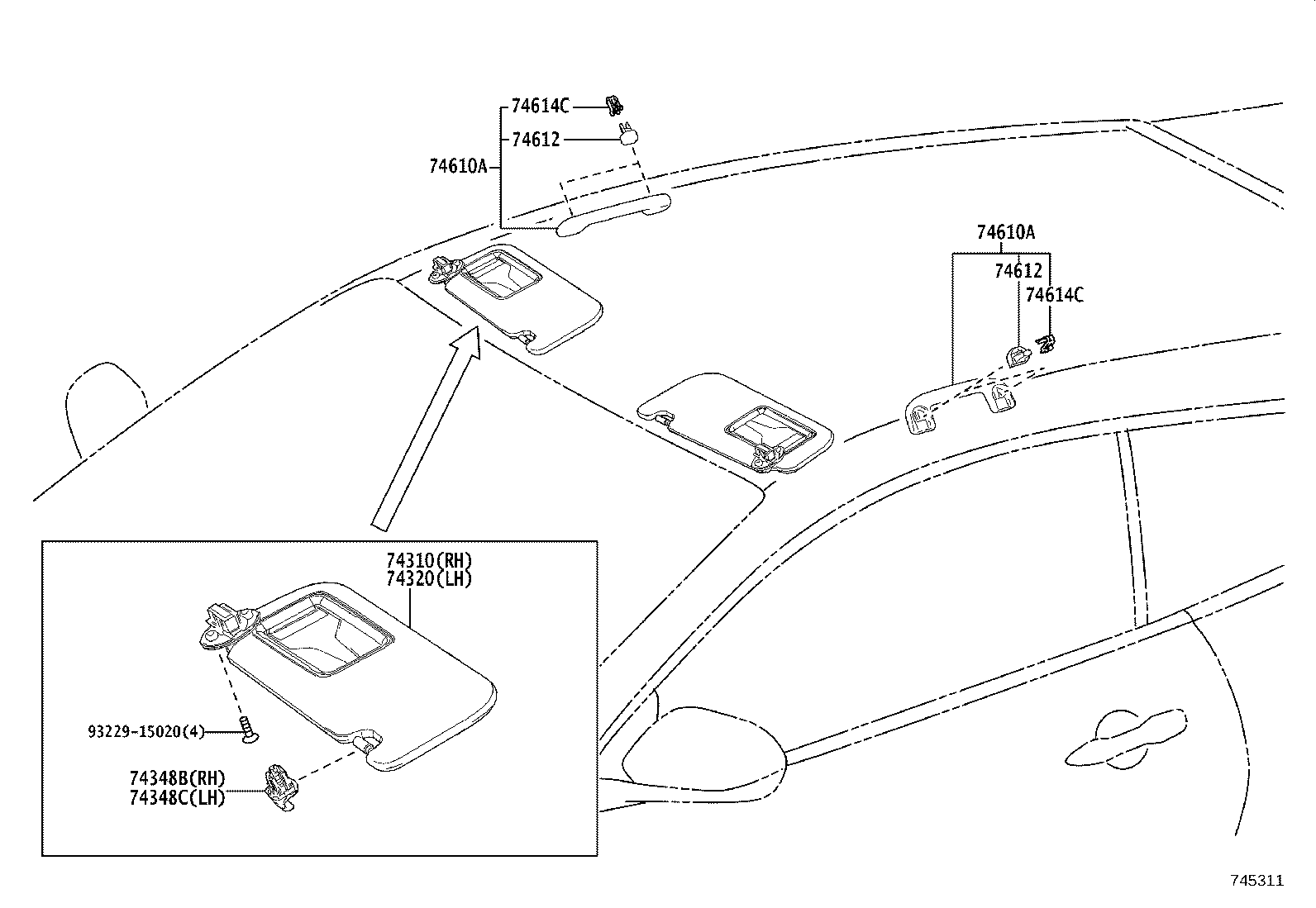

| 74310 | Visor Assy, RH |
| 74320 | Visor Assy, LH |
| 74348B | Holder, Visor, RH |
| 74348C | Holder, Visor, LH |
| 74610A | Grip Sub-assy, Assist |
| 74612 | Cover, Assist Grip |
| 74614C | Plate, Assist Grip Lock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
