Toyota Yaris GR

2020-08 → present · chassis GXPA16 · catalogue 11E210 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

22 part groups · 4 illustrations

Illustrations

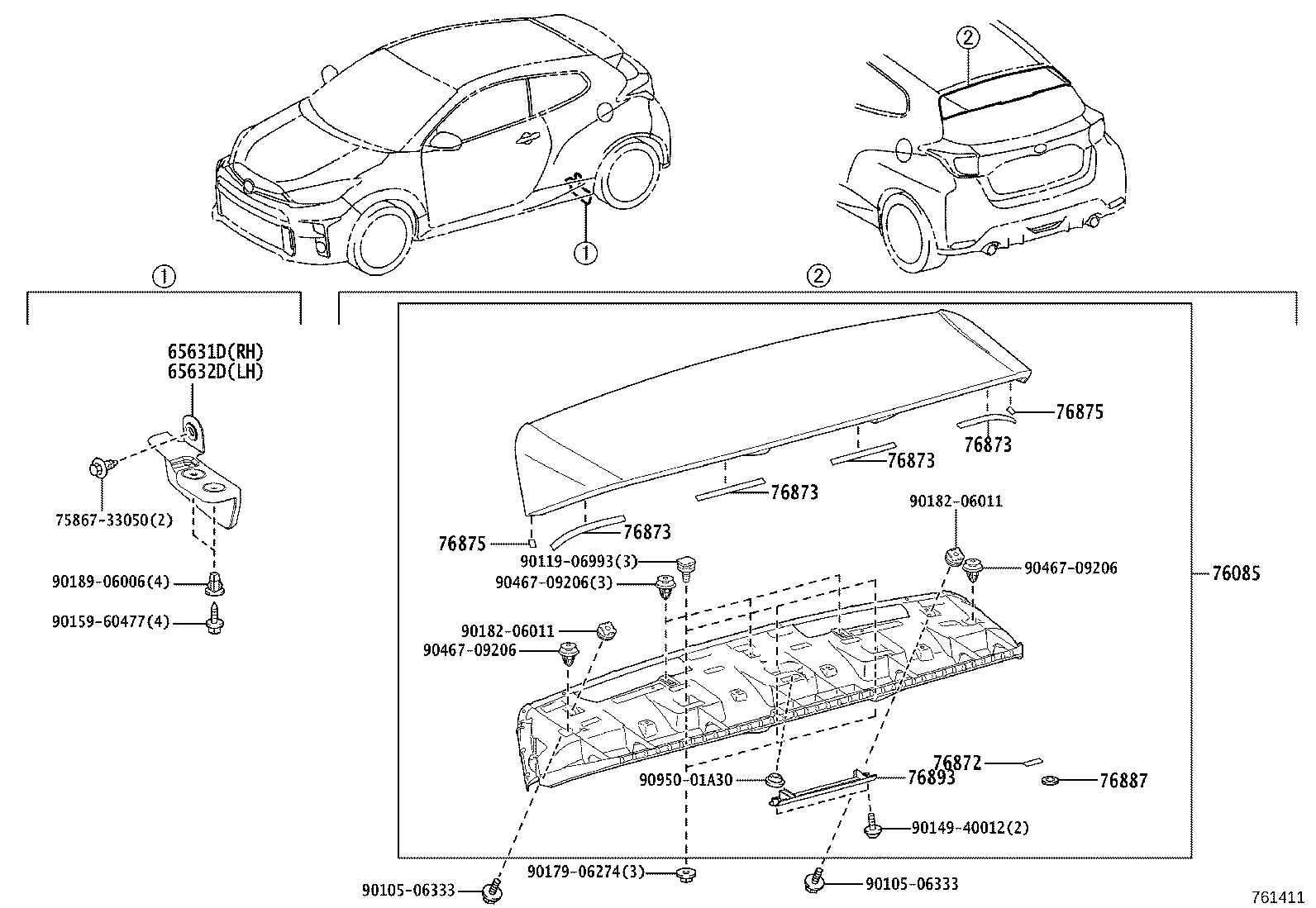

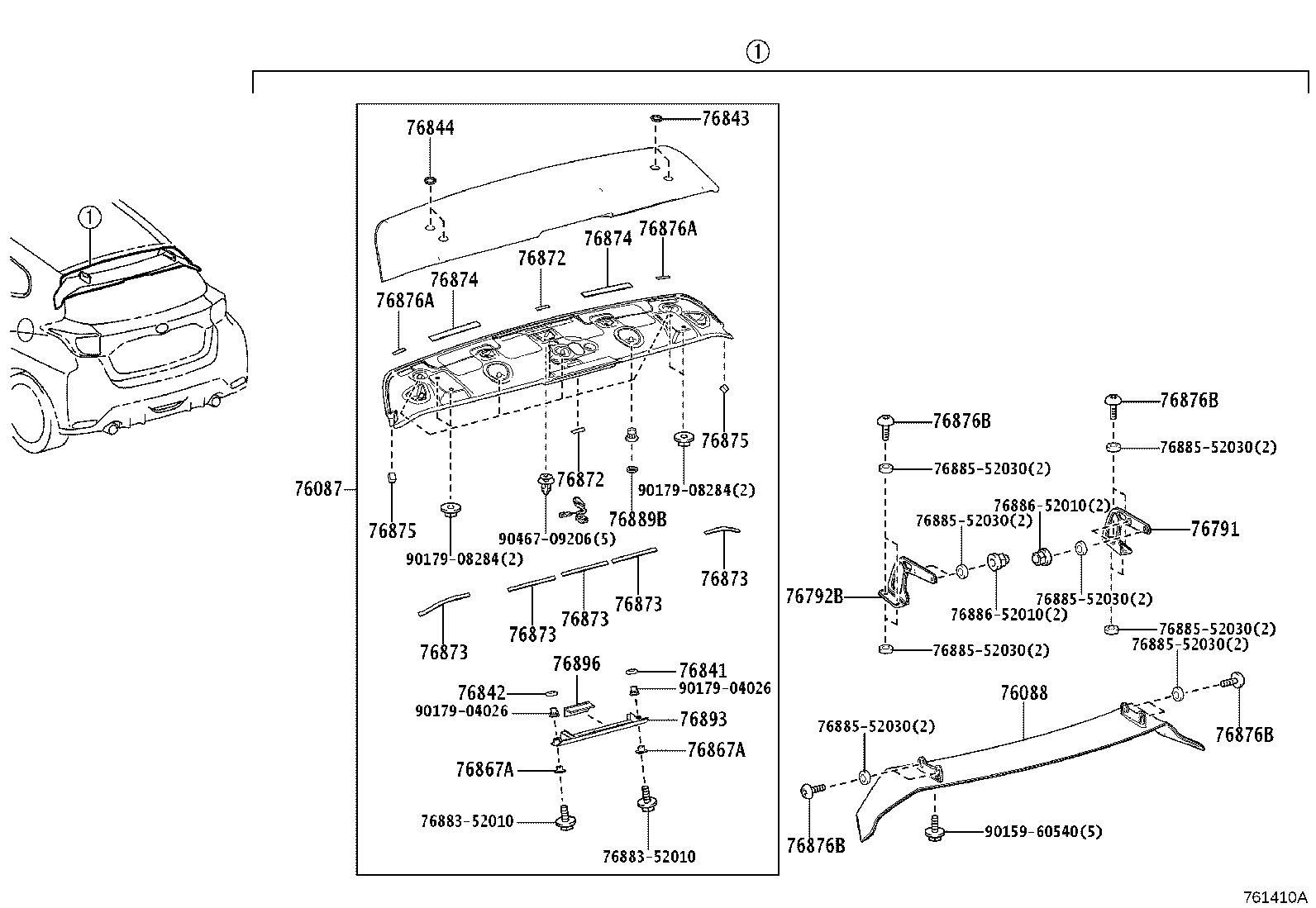

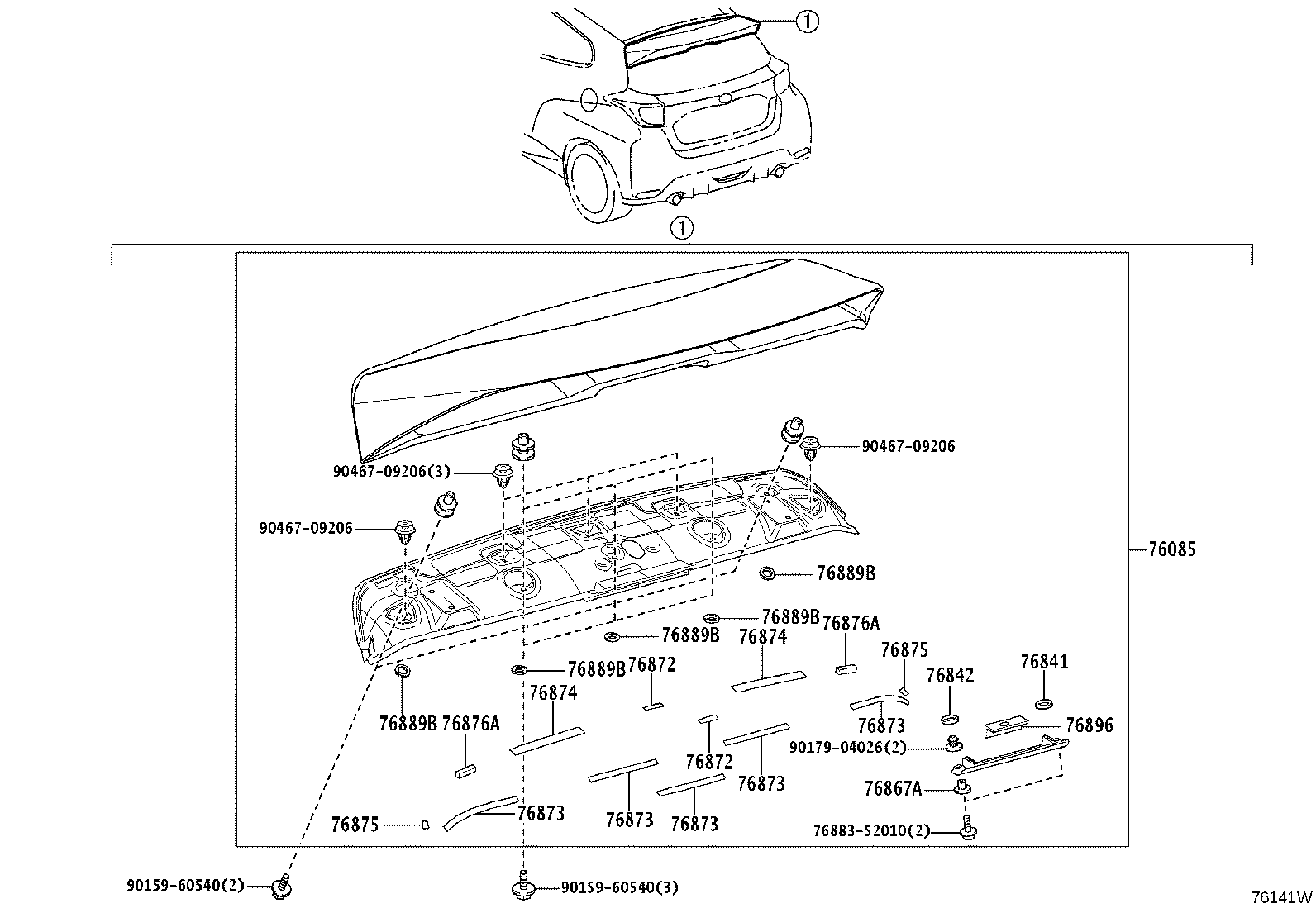

Figure 761247I 761247I 2020-08 → 2024-04 Figure 761411 761411 2024-04 → — Figure 761410A 761410A 2024-04 → — Figure 76141W 76141W 2024-04 → —

Part groups

PNCDescription
65631D Plate, Rear Wheel House, Front RH
65632D Plate, Rear Wheel House, Front LH
76085 Spoiler Sub-assy, Rear
76087 Spoiler Sub-assy, Rear NO.1
76088 Spoiler Sub-assy, Rear NO.2
76791 Bracket, Rear Spoiler, NO.1 RH
76792B Bracket, Rear Spoiler, NO.1 LH
76841 Protector, Rear Spoiler Side, NO.5 RH
76842 Protector, Rear Spoiler Side, NO.5 LH
76843 Protector, Rear Spoiler, NO.11 RH
76844 Protector, Rear Spoiler, NO.11 LH
76867A Retainer, Rear Spoiler, NO.3
76872 Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76876A Protector, Rear Spoiler, NO.10
76876B Insert, Rear Spoiler
76887 Seal, Rear Spoiler
76889B Seal, Rear Spoiler, NO.1
76893 Cover, Rear Spoiler, NO.1
76896 Protector, Rear Spoiler, NO.6
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
