Toyota Yaris GR

2020-08 → present · chassis GXPA16 · catalogue 11E210 · United States

Supported model Data version 2024-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

5 part groups · 2 illustrations

Illustrations

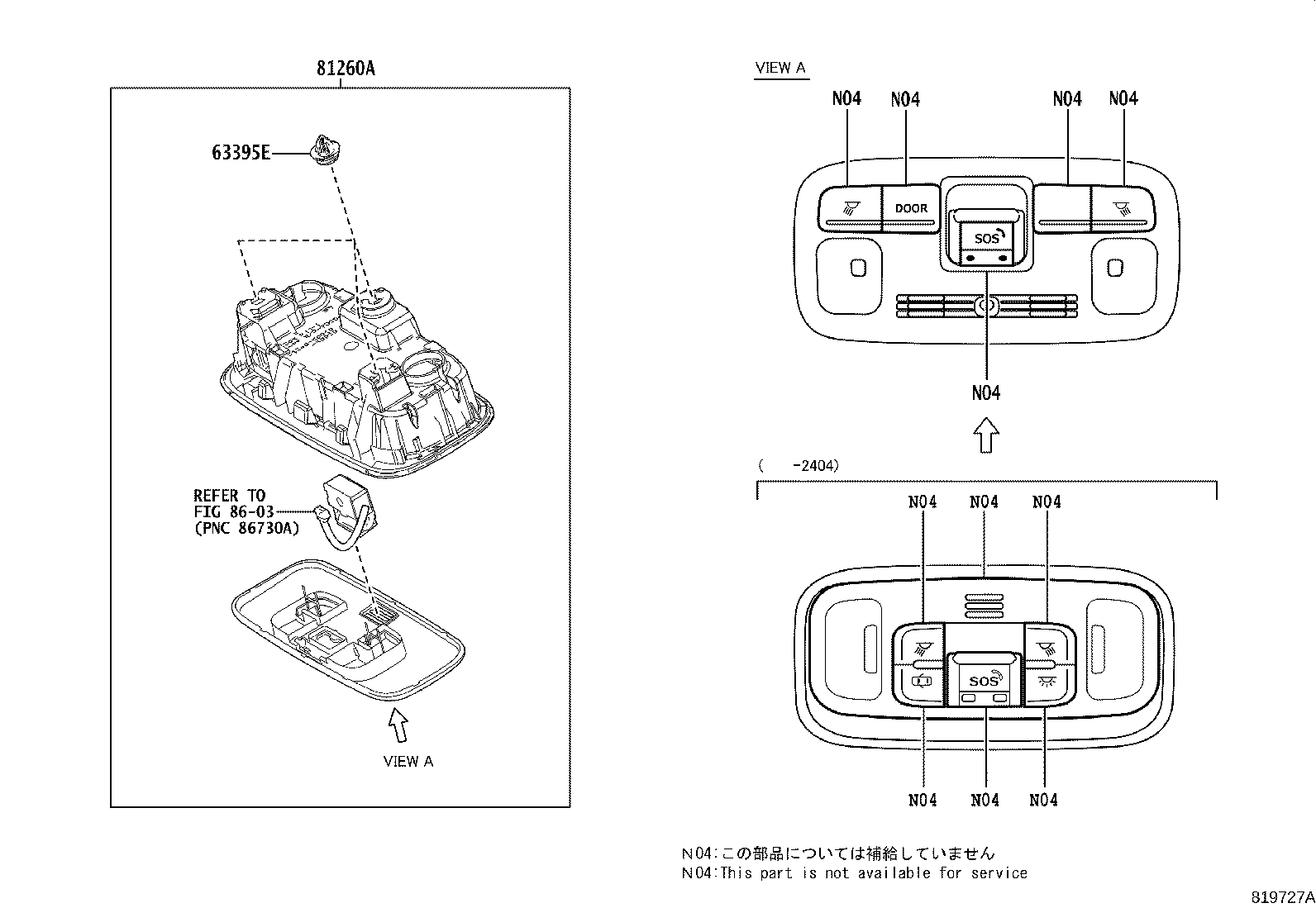

Figure 819726A 819726A 2020-08 → — Figure 819727A 819727A 2020-08 → —

Part groups

PNCDescription
63395E Clip(FOR MAP LAMP)
81080M Lamp Assy, Interior Illumination, NO.1
81240 Lamp Assy, Room, NO.1
81240B Bulb, Room Lamp, NO.1
81260A Lamp Assy, Map
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
