Toyota Starlet

1980-08 → 1983-12 · chassis KP61 · catalogue 121420 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

6 part groups · 2 illustrations

Illustrations

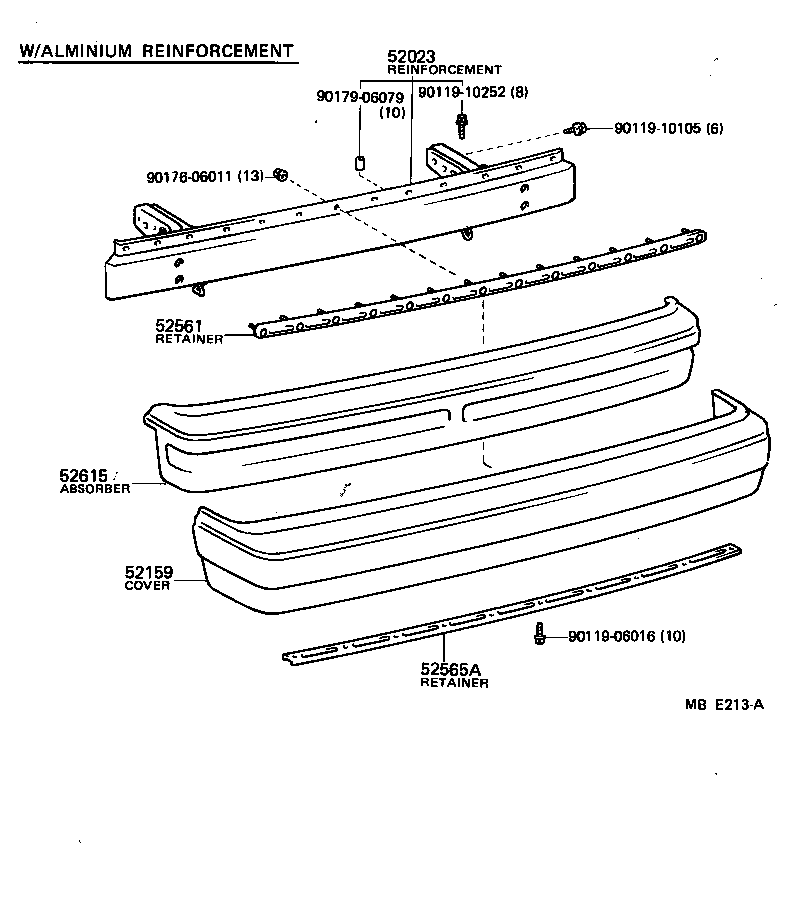

Figure MBB759E MBB759E 1980-08 → — Figure MBE213A MBE213A 1982-08 → —

Part groups

PNCDescription
52023 Reinforcement Sub-assy, Rear Bumper
52159 Cover, Rear Bumper
52505 Filler Sub-assy, Rear Bumper
52561 Retainer, Rear Bumper, Upper Center
52565A Retainer, Rear Bumper, Lower
52615 Absorber, Rear Bumper Energy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
