Toyota Starlet

1980-08 → 1983-12 · chassis KP61 · catalogue 121420 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

20 part groups · 2 illustrations

Illustrations

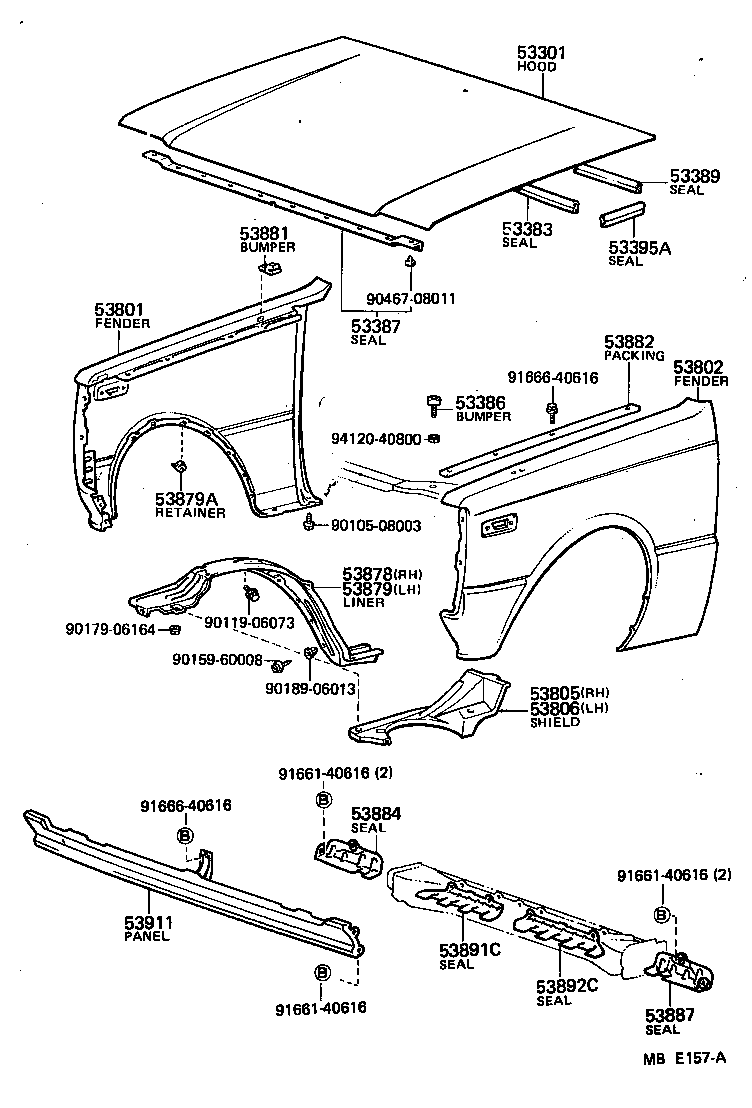

Figure MBB761G MBB761G 1980-08 → 1982-08 Figure MBE157A MBE157A 1982-08 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53383 Seal, Hood TO Cowl Top
53386 Bumper, Hood, Rear
53387 Seal, Hood TO Radiator Support
53389 Seal, Hood TO Cowl Top Side
53395A Seal, Hood TO Front End Panel, NO.1
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53805 Shield Sub-assy, Front Fender Splash, RH
53806 Shield Sub-assy, Front Fender Splash, LH
53878 Liner, Front Fender, RH
53879 Liner, Front Fender, LH
53879A Retainer, Front Fender Liner
53881 Bumper, Fender TO Hood
53882 Packing, Front Fender Main
53884 Seal, Front Fender Splash Shield, RH
53887 Seal, Front Fender Splash Shield, LH
53891C Seal, Front Fender Splash Sheild, Front
53892C Seal, Front Fender Splash Shield, Front LH
53911 Panel, Front Valance
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
