Toyota Starlet

1980-08 → 1983-12 · chassis KP61 · catalogue 121420 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

13 part groups · 2 illustrations

Illustrations

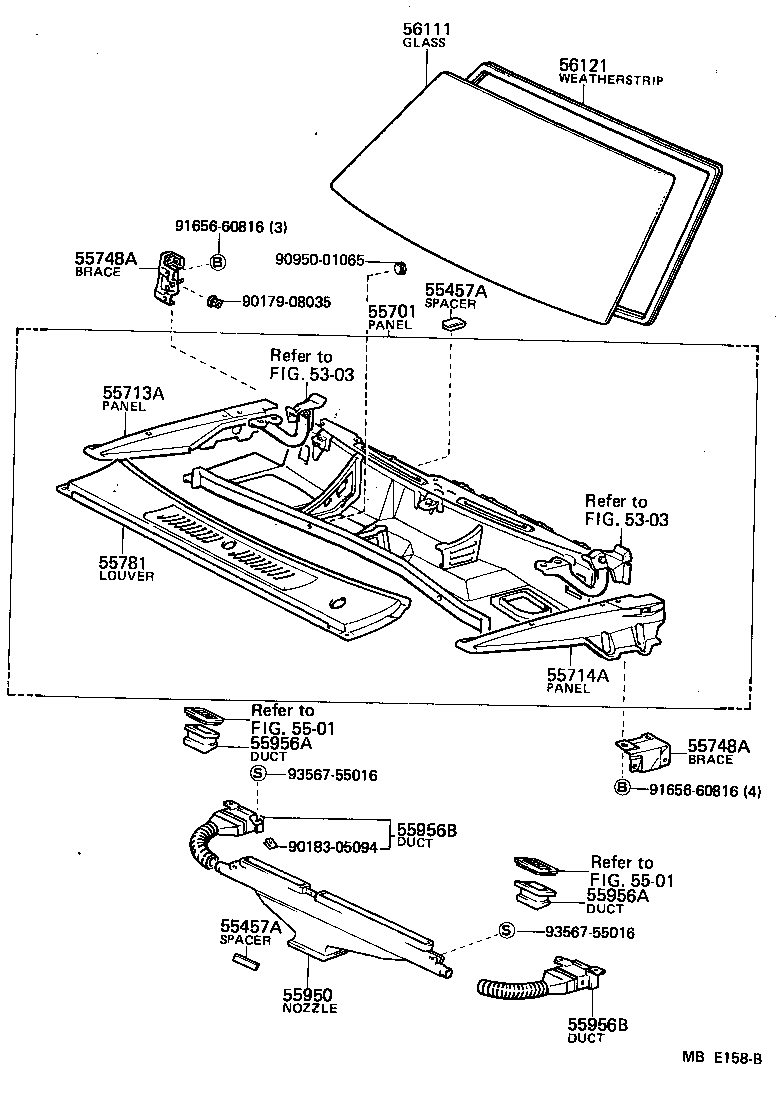

Figure MBB767B MBB767B 1980-08 → 1982-08 Figure MBE158B MBE158B 1982-08 → —

Part groups

PNCDescription
55457A Spacer, Instrument Panel Safety Pad
55701 Panel Sub-assy, Cowl
55713A Panel, Cowl Top Side, RH
55714A Panel, Cowl Top Side, LH
55748A Brace, Cowl Top Inner TO Pillar
55781 Louver, Cowl Ventilator
55908 Nozzle Sub-assy, Defroster, RH
55909 Nozzle Sub-assy, Defroster, LH
55950 Nozzle Assy, Defroster
55956A Duct, Side Defroster Nozzle, NO.1
55956B Duct, Side Defroster Nozzle, NO.2
56111 Glass, Windshield
56121 Weatherstrip, Windshield
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
