Toyota Starlet

1980-08 → 1983-12 · chassis KP61 · catalogue 121420 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

7 part groups · 2 illustrations

Illustrations

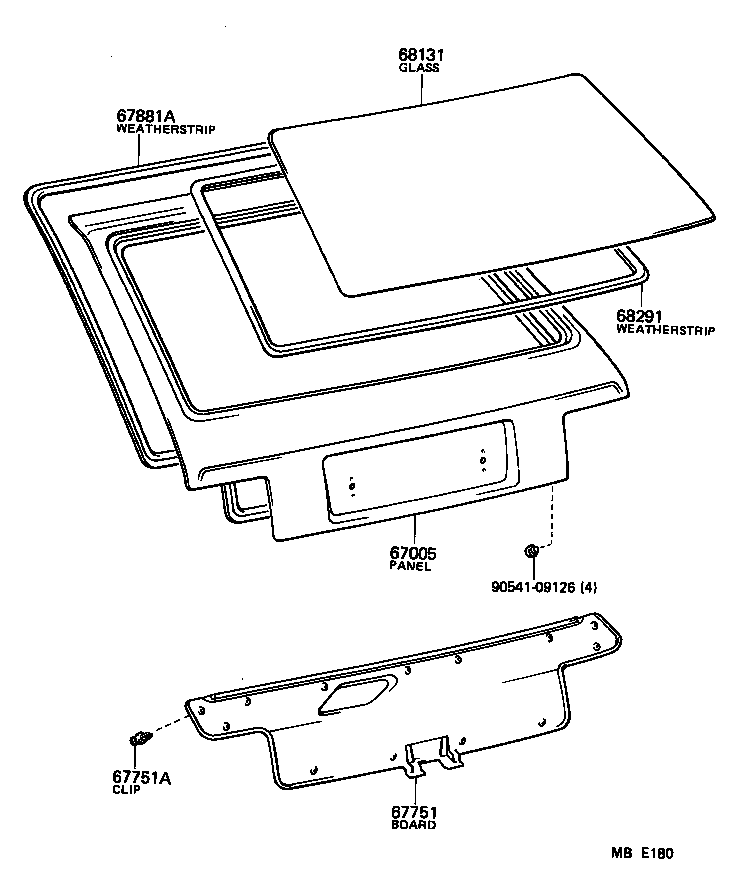

Figure MB7764E MB7764E 1980-08 → 1982-08 Figure MBE180 MBE180 1982-08 → —

Part groups

PNCDescription
67005 Panel Sub-assy, Back Door
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67753 Cover, Back Door
67881A Weatherstrip, Back Door
68131 Glass, Back Door
68291 Weatherstrip, Back Door Glass
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
