Toyota Starlet

1980-08 → 1983-12 · chassis KP61 · catalogue 121420 · United States

Discontinued model Data version 1985-03

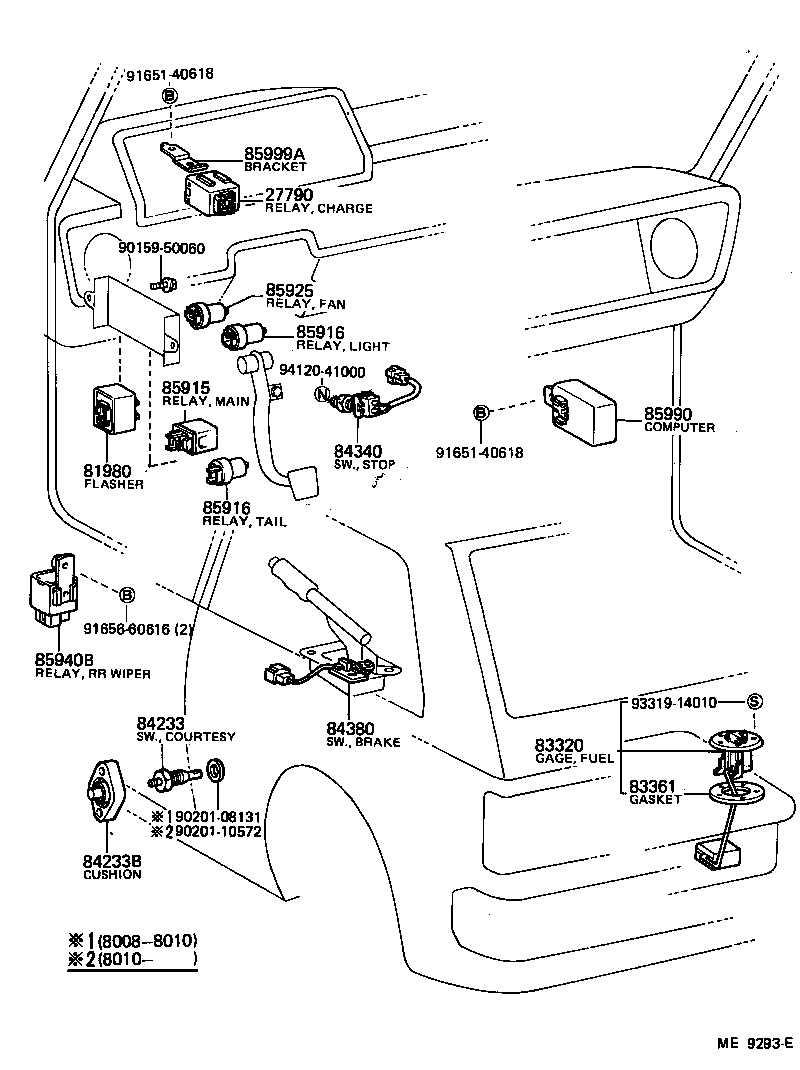

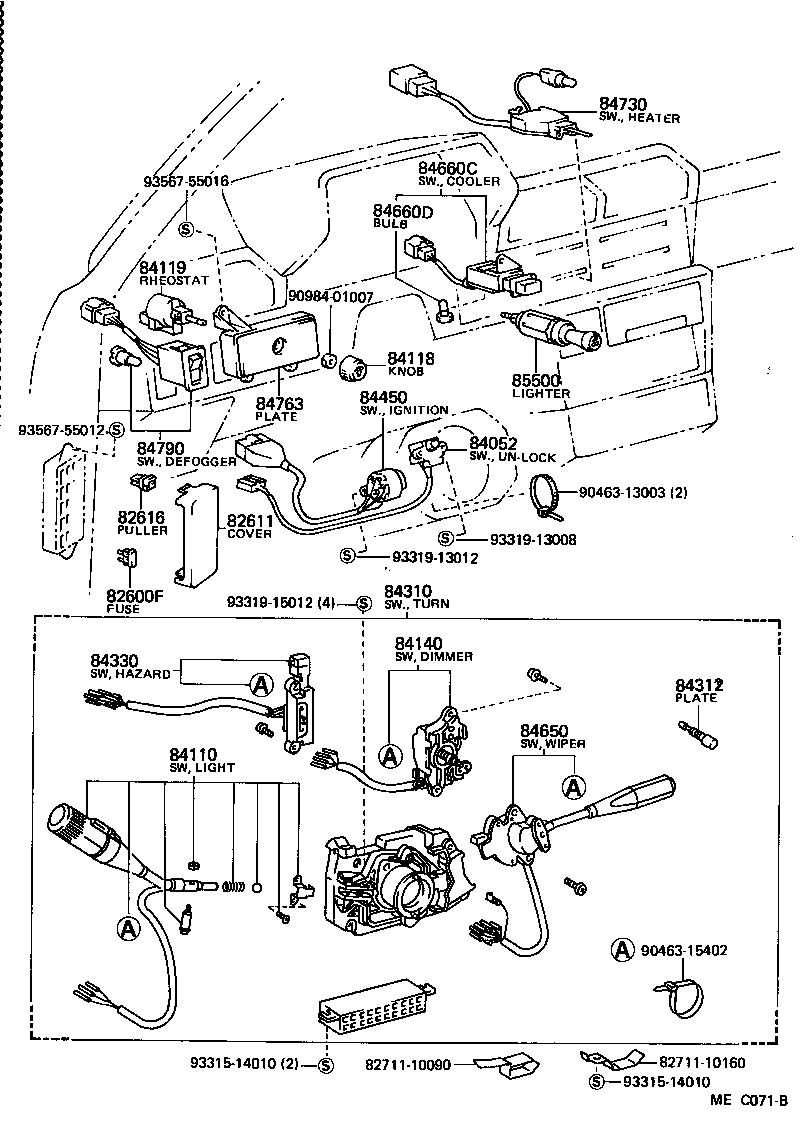

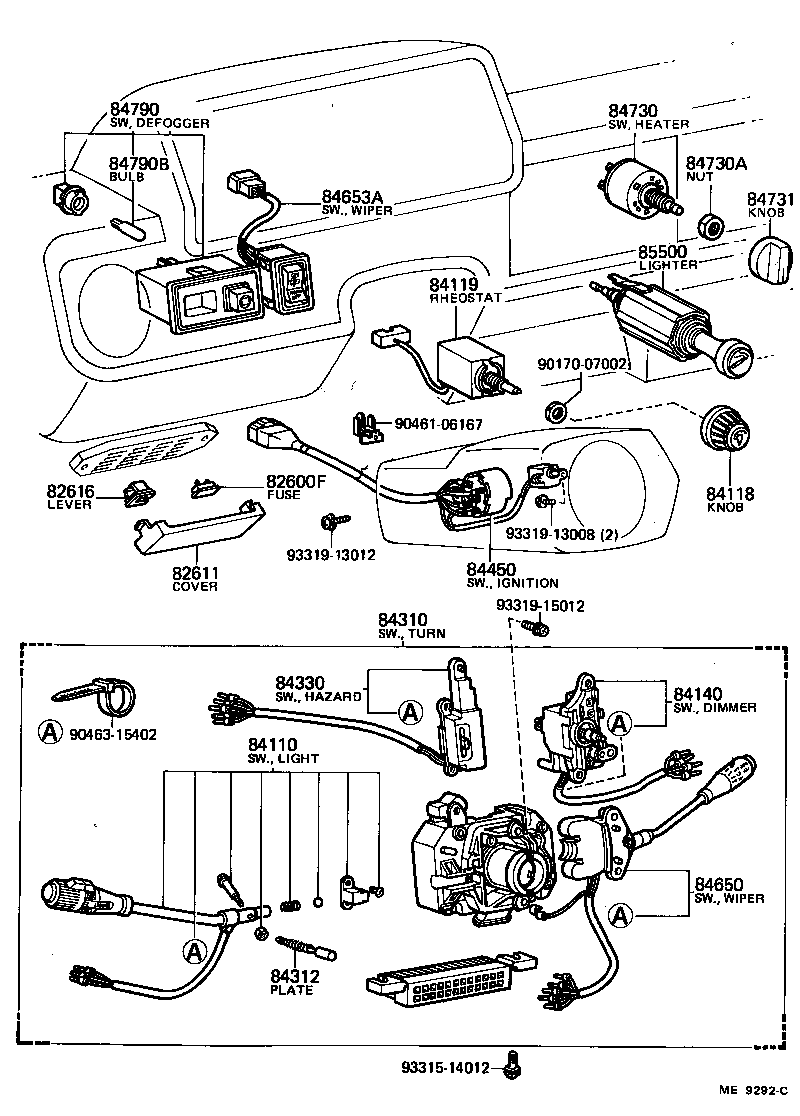

Switch & Relay & Computer

46 part groups · 4 illustrations

PNC	Description
27790	Relay Assy, Charge Lamp
81980	Flasher Assy, Turn Signal
82600F	Fuse, Fuse Block
82611	Cover, Fuse Block
82616	Puller, Fuse
83320	Gage Assy, Fuel Sender
83361	Gasket, Fuel Sender Gage
83420	Gage Assy, Water Temperature Sender
83530	Switch Assy, Oil Pressure (FOR ENGINE)
84052	Switch Assy, Un-lock Warning
84110	Switch Assy, Light Control, NO.1
84118	Knob, Light Control Rheostat
84119	Rheostat, Light Control
84140	Switch Assy, Headlamp Dimmer
84210	Switch Assy, Back-up Lamp
84233	Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84233B	Cushion, Courtesy Switch (FOR FRONT DOOR)
84310	Switch Assy, Turn Signal
84312	Plate, Horn Contact
84330	Switch Assy, Hazard Warning Signal
84340	Switch Assy, Stop Lamp
84380	Switch Assy, Brake Warning Test
84450	Switch Assy, Ignition OR Starter
84650	Switch Assy, Windshield Wiper
84653A	Switch, Rear Wiper
84660C	Switch, Cooler
84660D	Bulb(FOR COOLER SWITCH)
84730	Switch Assy, Heater Blower
84730A	Nut, Heater Blower Switch
84731	Knob, Heater Blower Switch
84763	Plate, Switch
84790	Switch Assy, Rear Window Defogger
84790B	Bulb(FOR REAR WINDOW DEFOGGER SWITCH)
85430	Valve, Outer Vent Control
85500	Lighter Assy, Cigarette
85915	Relay, Main
85916	Relay, Light Control
85925	Relay, Radiator Fan
85940B	Relay Assy, Rear Wiper
85990	Relay OR Computer Assy, Seat Belt Warning
85999A	Bracket, Relay, NO.2
89427	Switch, Temperature Detect
89465	Sensor, Oxygen
89466	Gasket, Oxygen Sensor
89620	Igniter Assy
89620A	Diode, Ignition Coil

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
