Toyota Starlet

1980-08 → 1983-12 · chassis KP61 · catalogue 121420 · United States

Discontinued model Data version 1985-03
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Heater Unit & Blower

14 part groups · 2 illustrations

Illustrations

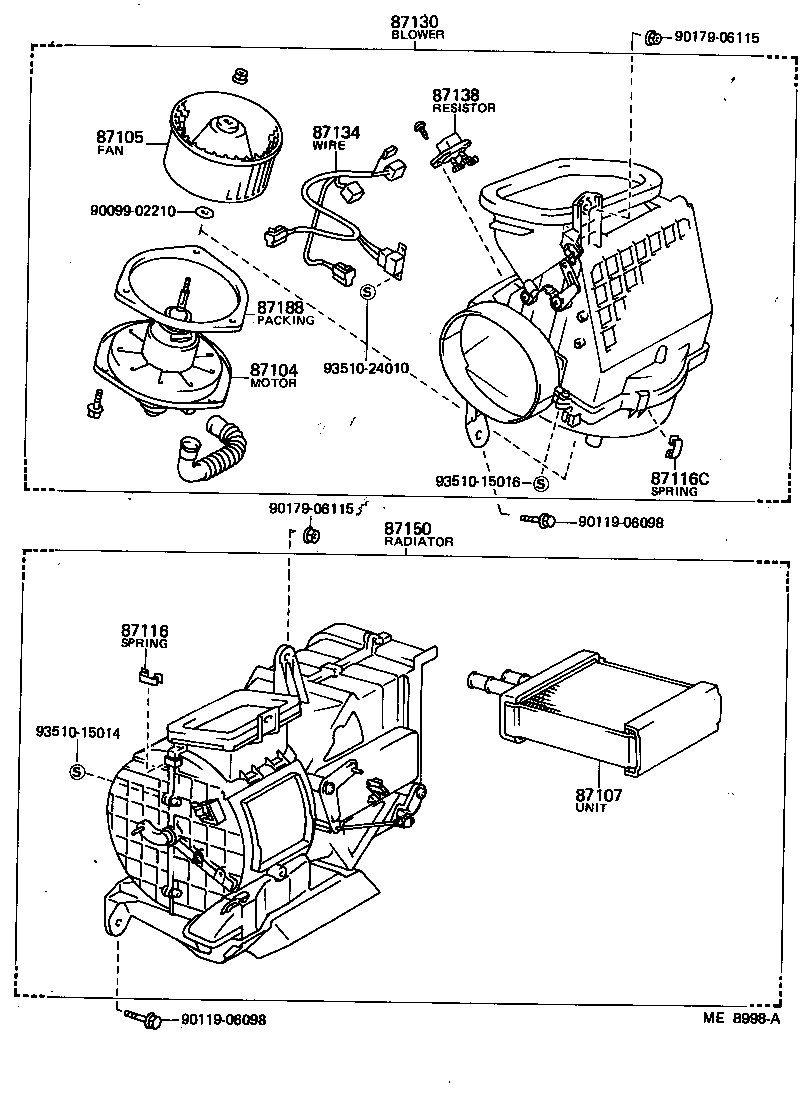

Figure ME9304B ME9304B 1980-08 → 1982-08 Figure MEB998A MEB998A 1982-08 → —

Part groups

PNCDescription
87104 Motor Sub-assy, Heater Blower
87105 Fan Sub-assy, Heater Blower
87107 Unit Sub-assy, Heater Radiator
87110 Heater Assy
87114 Cover, Heater
87116 Spring, Heater Case Fastening
87116C Spring, Holding (FOR HEATER BLOWER)
87130 Blower Assy, Heater, Front
87134 Wire, Heater Blower
87138 Resistor, Heater Blower
87150 Radiator Assy, Heater
87188 Packing, Heater Blower Motor
87248E Pipe, Heater Water Inlet, E
87249E Pipe, Heater Water Outlet, E (FOR HEATER UNIT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
