Toyota Prius C

2011-12 → 2021-06 · chassis NHP10 · catalogue 125410 · United States

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

8 part groups · 3 illustrations

Illustrations

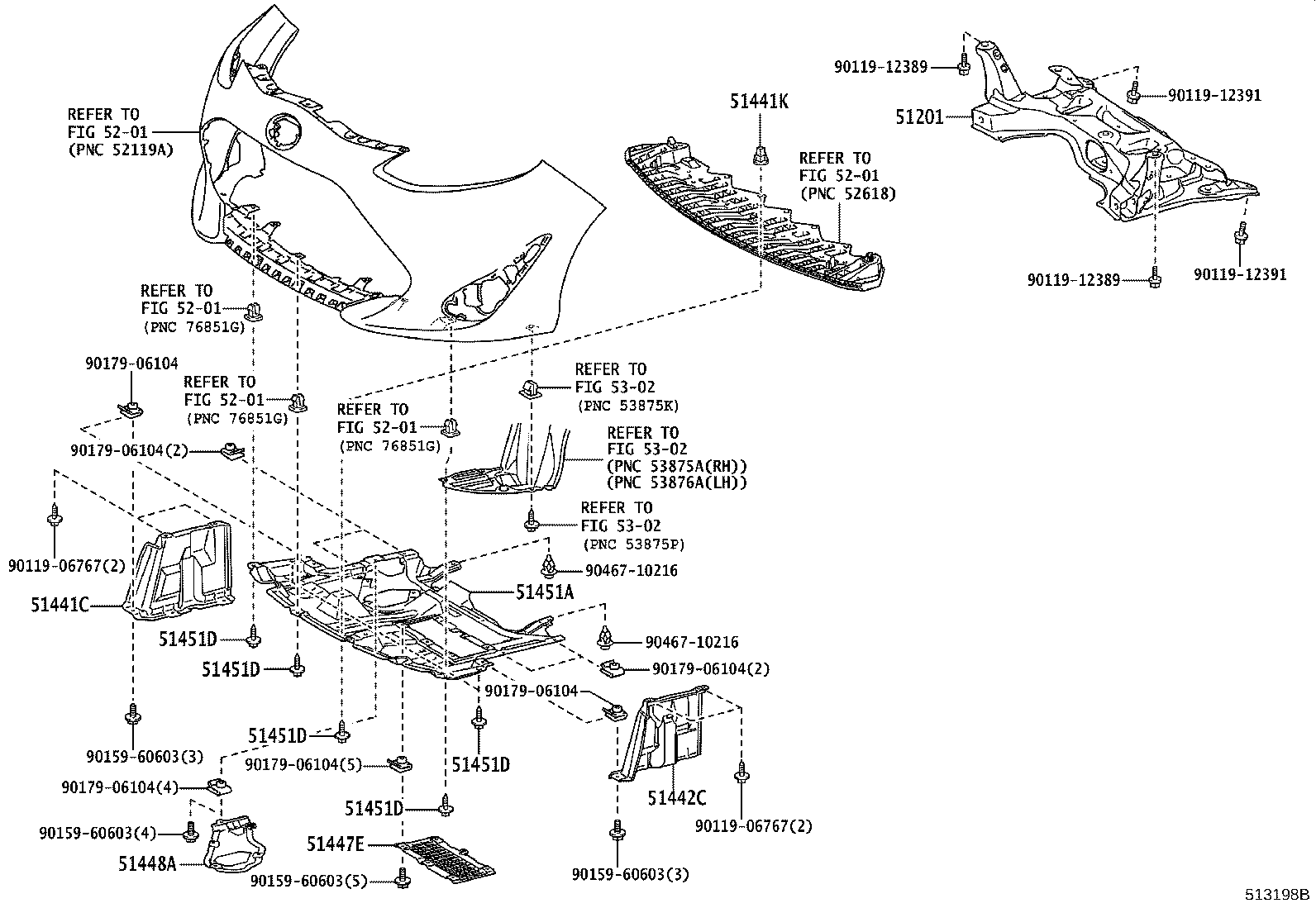

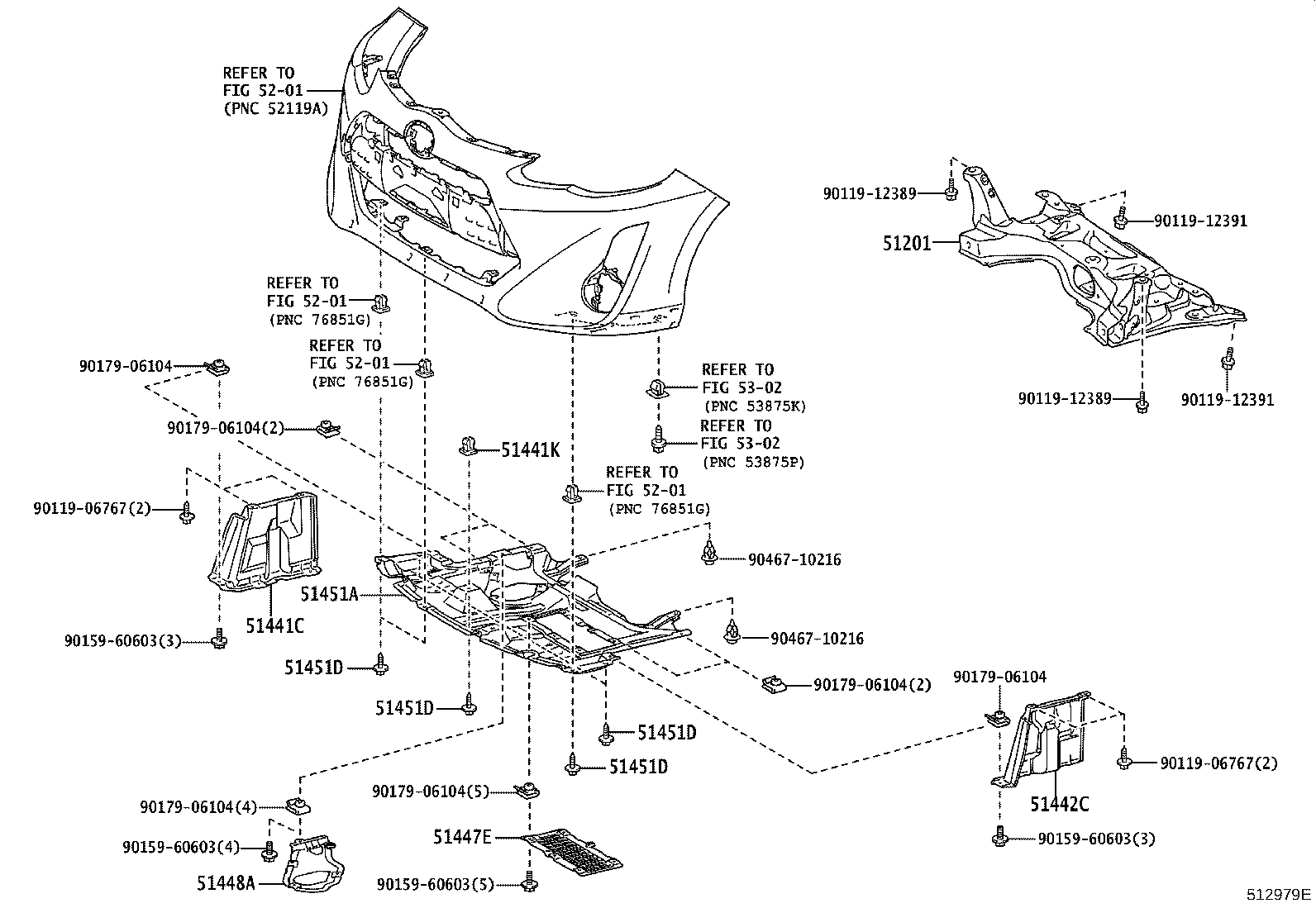

Figure 512860C 512860C 2011-12 → 2015-11 Figure 512979E 512979E 2015-11 → 2017-06 Figure 513198B 513198B 2017-06 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51441C Cover, Engine Under, RH
51441K Grommet(FOR ENGINE UNDER COVER)
51442C Cover, Engine Under, LH
51447E Reinforcement, Engine Under Cover
51448A Cover, Engine Side Under, RH
51451A Cover, Engine Under, Center
51451D Screw, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
