Toyota Prius C

2011-12 → 2021-06 · chassis NHP10 · catalogue 125410 · United States

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

15 part groups · 3 illustrations

Illustrations

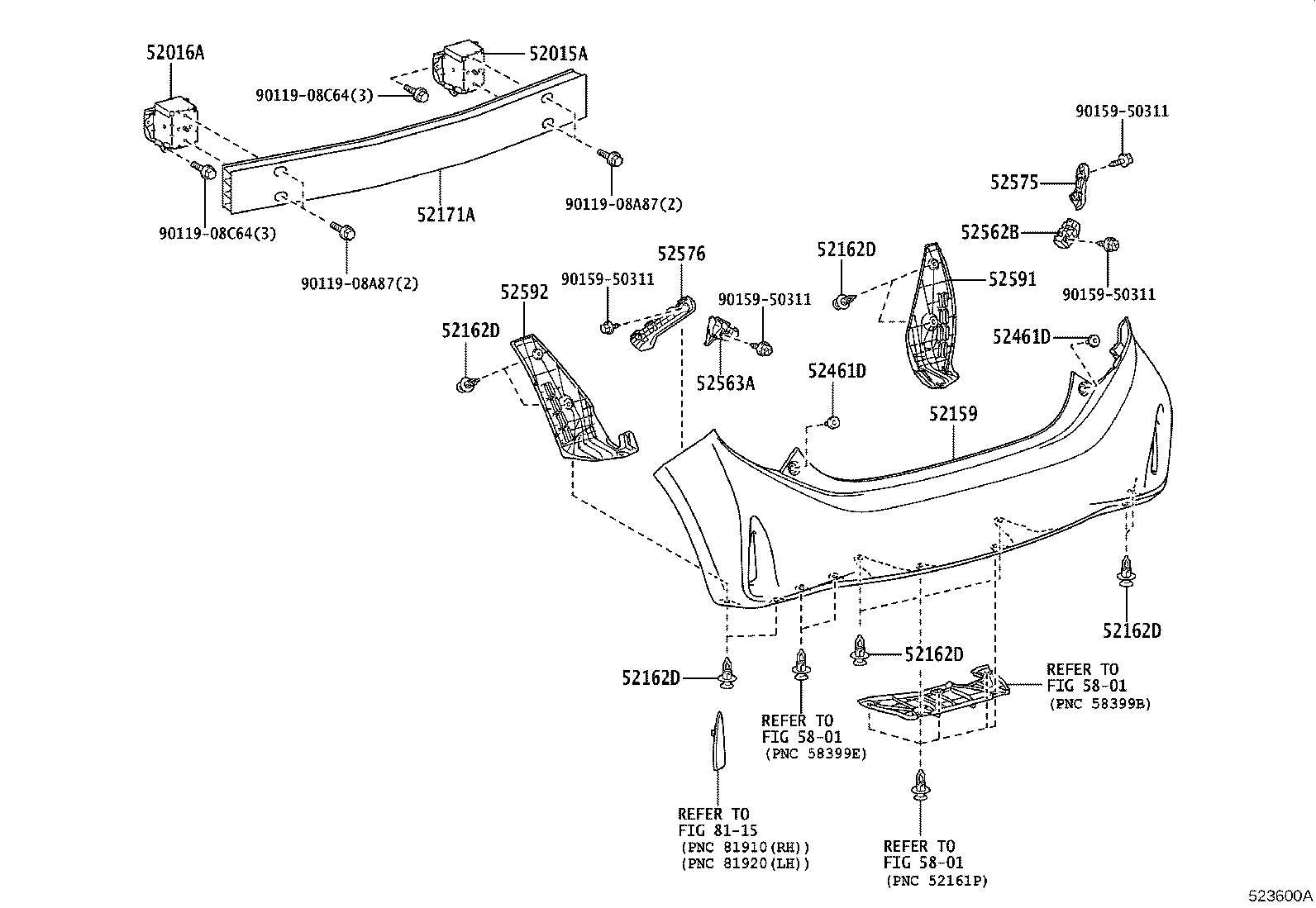

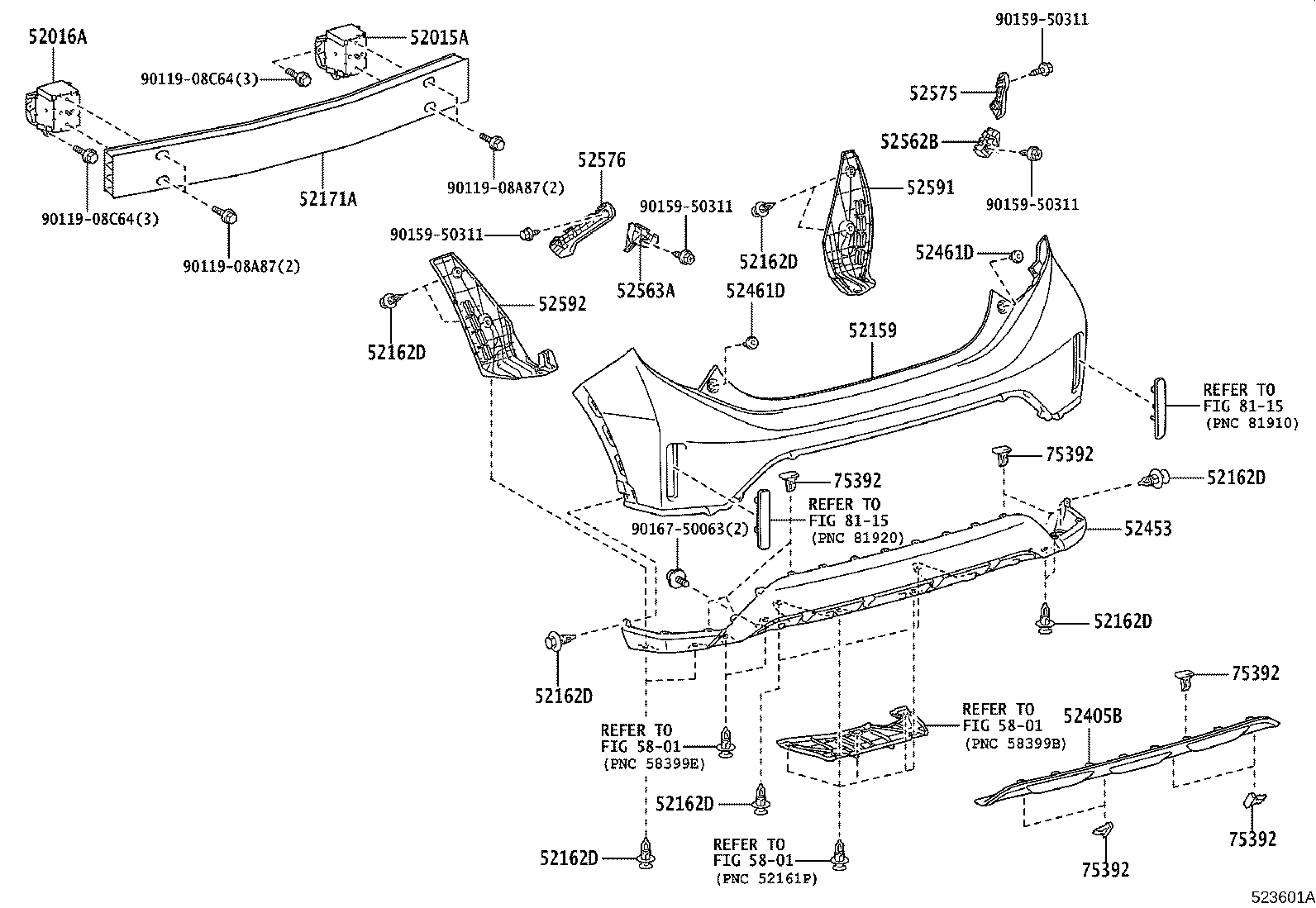

Figure 522575A 522575A 2011-12 → 2017-06 Figure 523600A 523600A 2017-06 → — Figure 523601A 523601A 2017-06 → —

Part groups

PNCDescription
52015A Arm Sub-assy, Rear Bumper, RH
52016A Arm Sub-assy, Rear Bumper, LH
52159 Cover, Rear Bumper
52162D Piece, Rear Bumper
52171A Reinforcement, Rear Bumper, NO.1
52405B Guard Sub-assy, Rear Bumper
52453 Guard, Rear Bumper, Center
52461D Cushion, Rear Bumper
52562B Retainer, Rear Bumper, Upper RH
52563A Retainer, Rear Bumper, Upper LH
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
75392 Retainer, Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
