Toyota Prius C

2011-12 → 2021-06 · chassis NHP10 · catalogue 125410 · United States

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

25 part groups · 6 illustrations

Illustrations

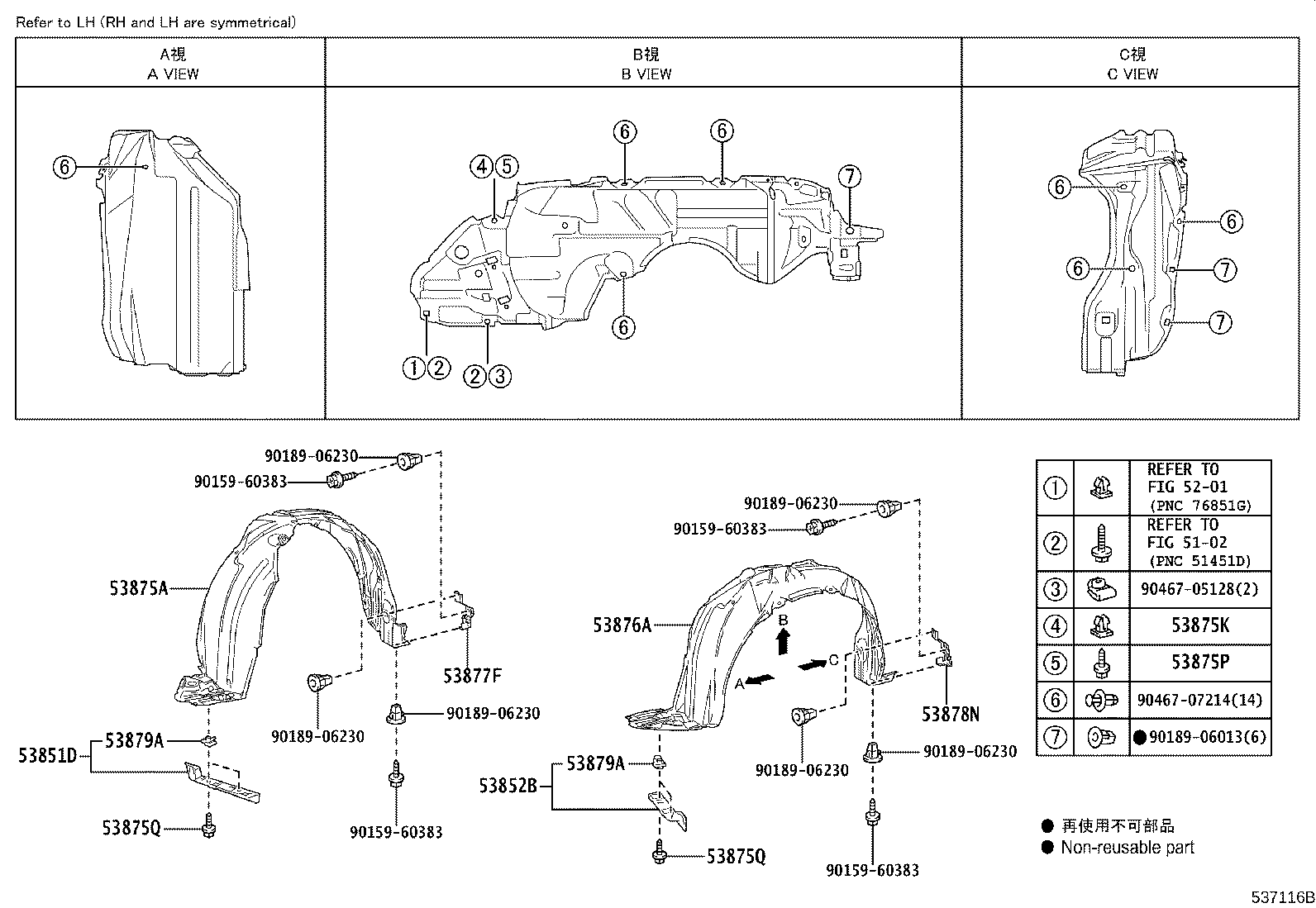

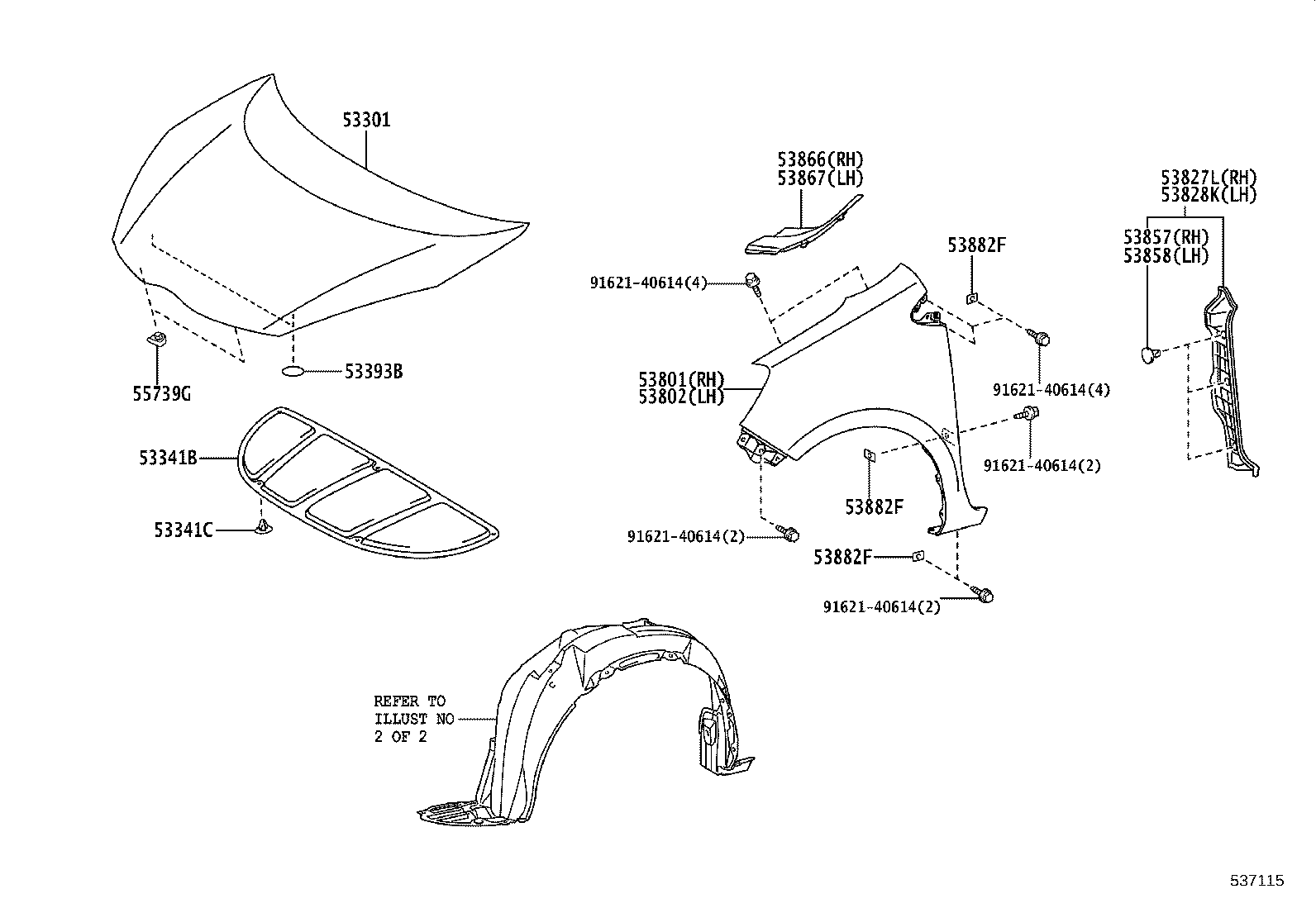

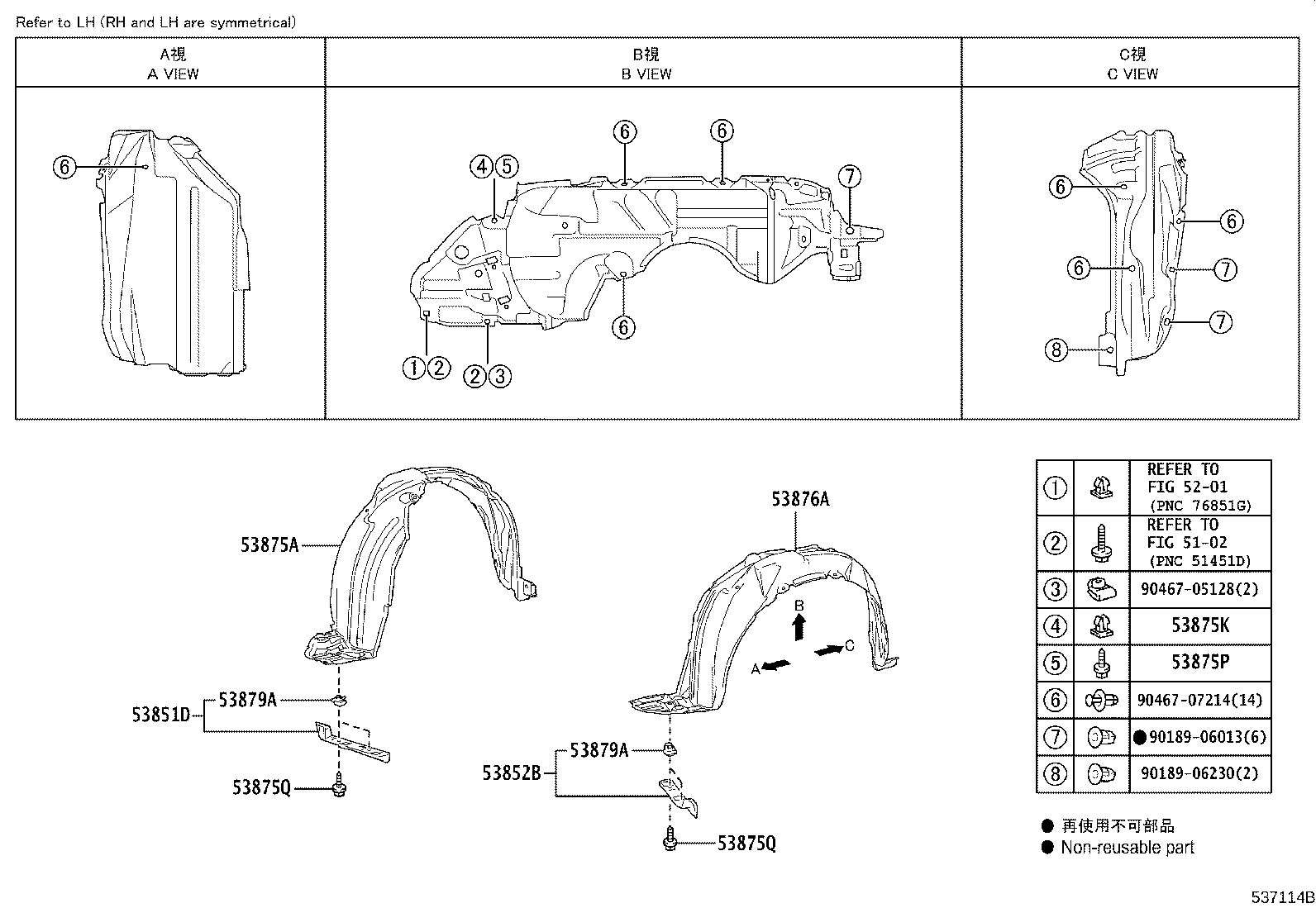

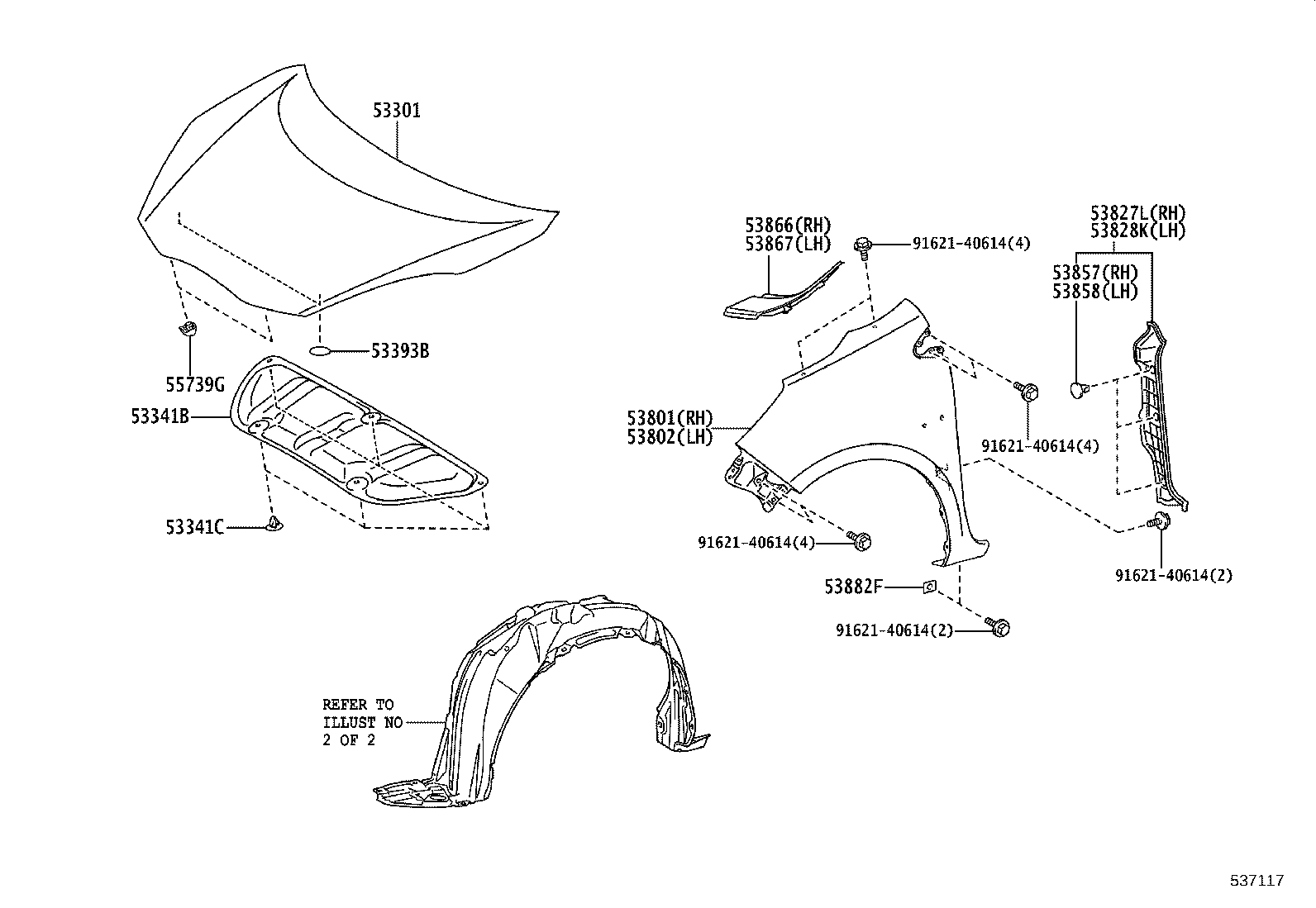

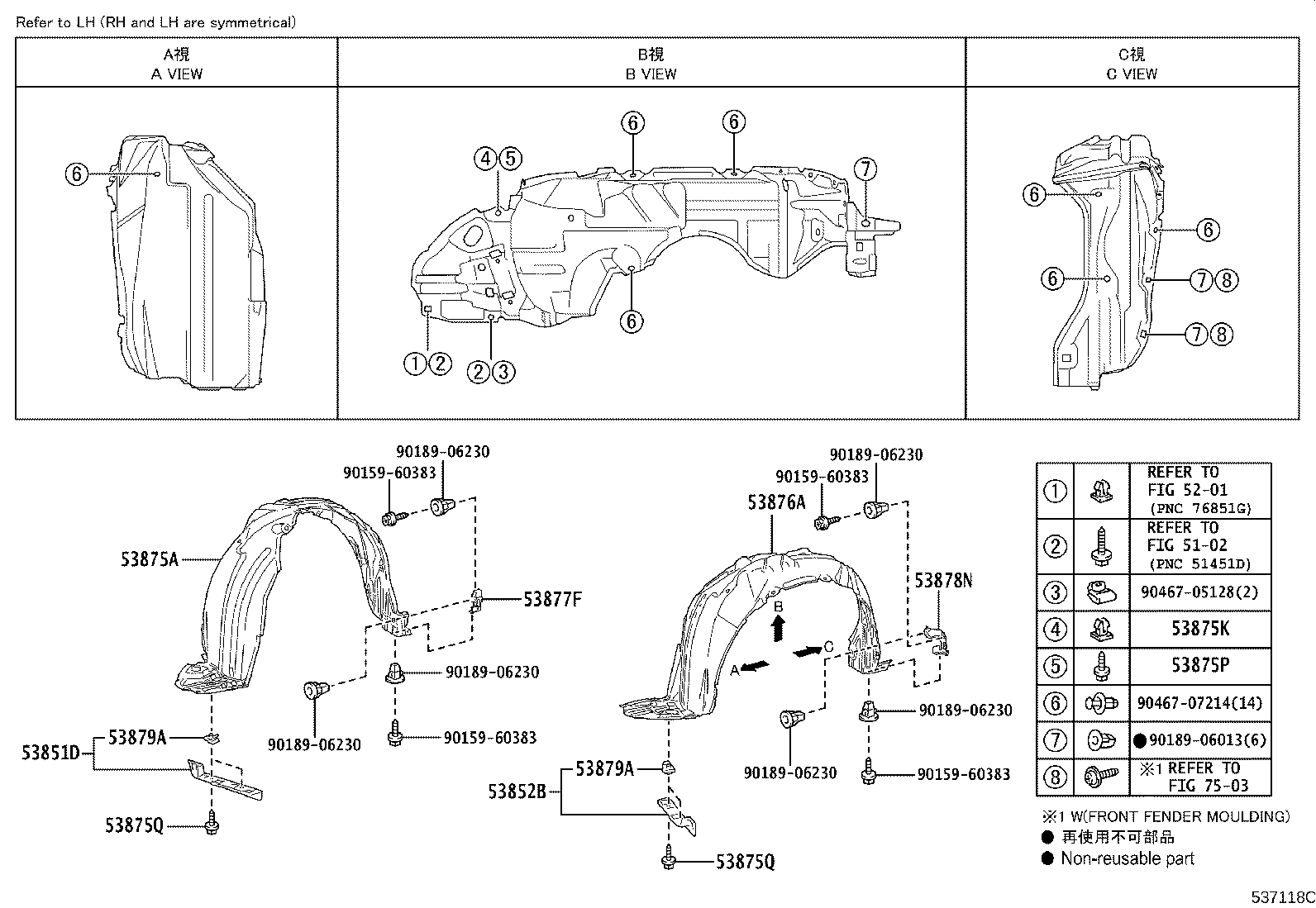

Figure 537113 537113 2011-12 → 2014-12 Figure 537114B 537114B 2011-12 → 2014-12 Figure 537115 537115 2014-12 → 2017-06 Figure 537116B 537116B 2014-12 → 2017-06 Figure 537117 537117 2017-06 → — Figure 537118C 537118C 2017-06 → —

Part groups

PNCDescription
53301 Hood Sub-assy
53326 Clip, Hood Protector
53341B Insulator, Hood
53341C Clip(FOR HOOD INSULATOR)
53393B Protector, Hood, Front
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53827L Protector, Front Fender Side Panel, RH
53828K Protector, Front Fender Side Panel, LH
53851D Pad, Front Wheel Opening Extension, RH
53852B Pad, Front Wheel Opening Extension, LH
53857 Retainer, Front Wheel Opening Extension, RH
53858 Retainer, Front Wheel Opening Extension, LH
53866 Seal, Front Fender TO Cowl Side, RH
53867 Seal, Front Fender TO Cowl Side, LH
53875A Liner, Front Fender, RH
53875K Grommet, Screw
53875P Screw, NO.1
53875Q Screw, NO.2
53876A Liner, Front Fender, LH
53877F Bracket, Front Fender Liner, RH
53878N Bracket, Front Fender Liner, LH
53879A Retainer, Front Fender Liner
53882F Seal, Front Fender
55739G Stopper, Hood
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
