Toyota Prius C
2011-12 → 2021-06 · chassis NHP10 · catalogue 125410 · United States
Supported model
Data version 2022-07

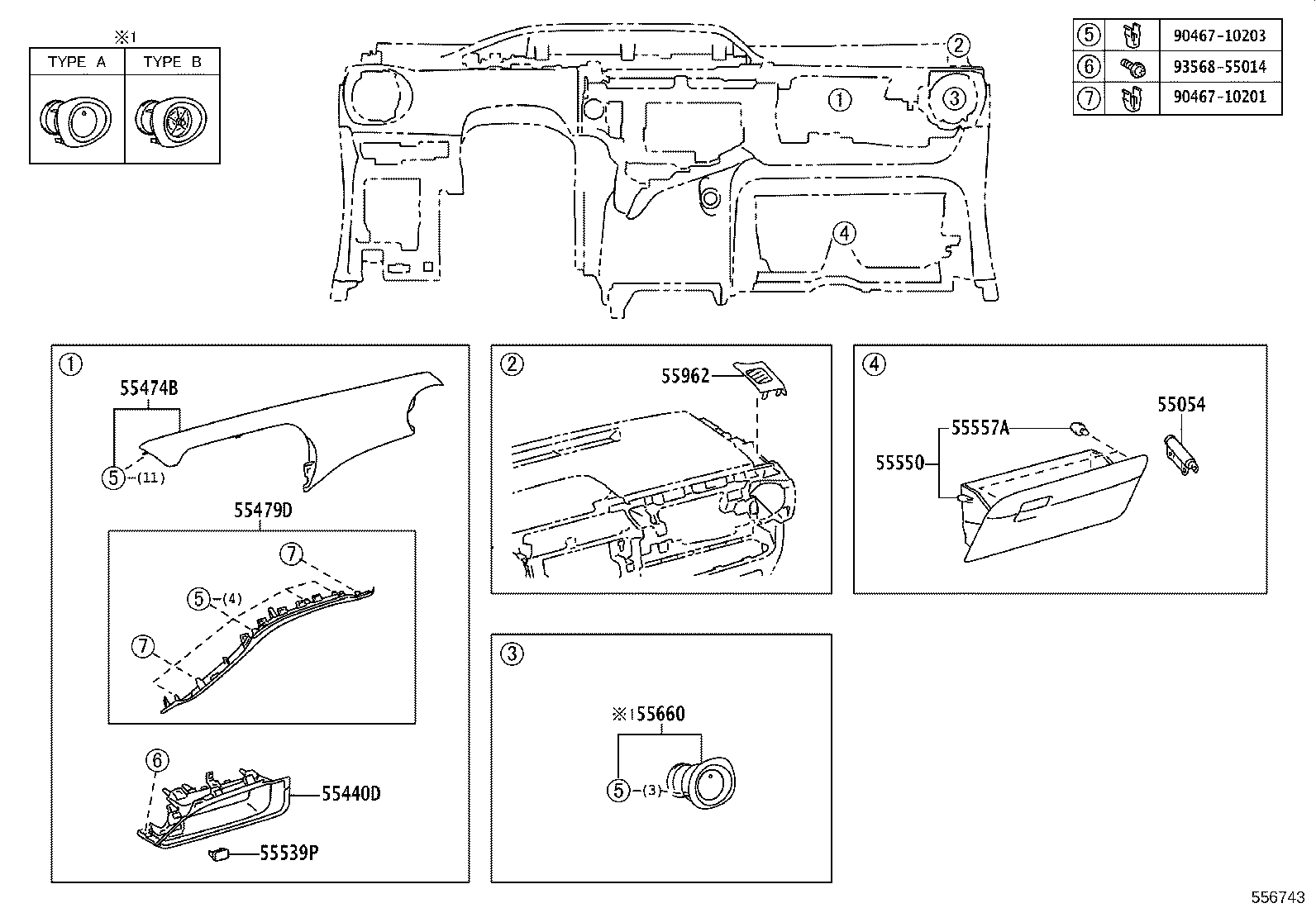

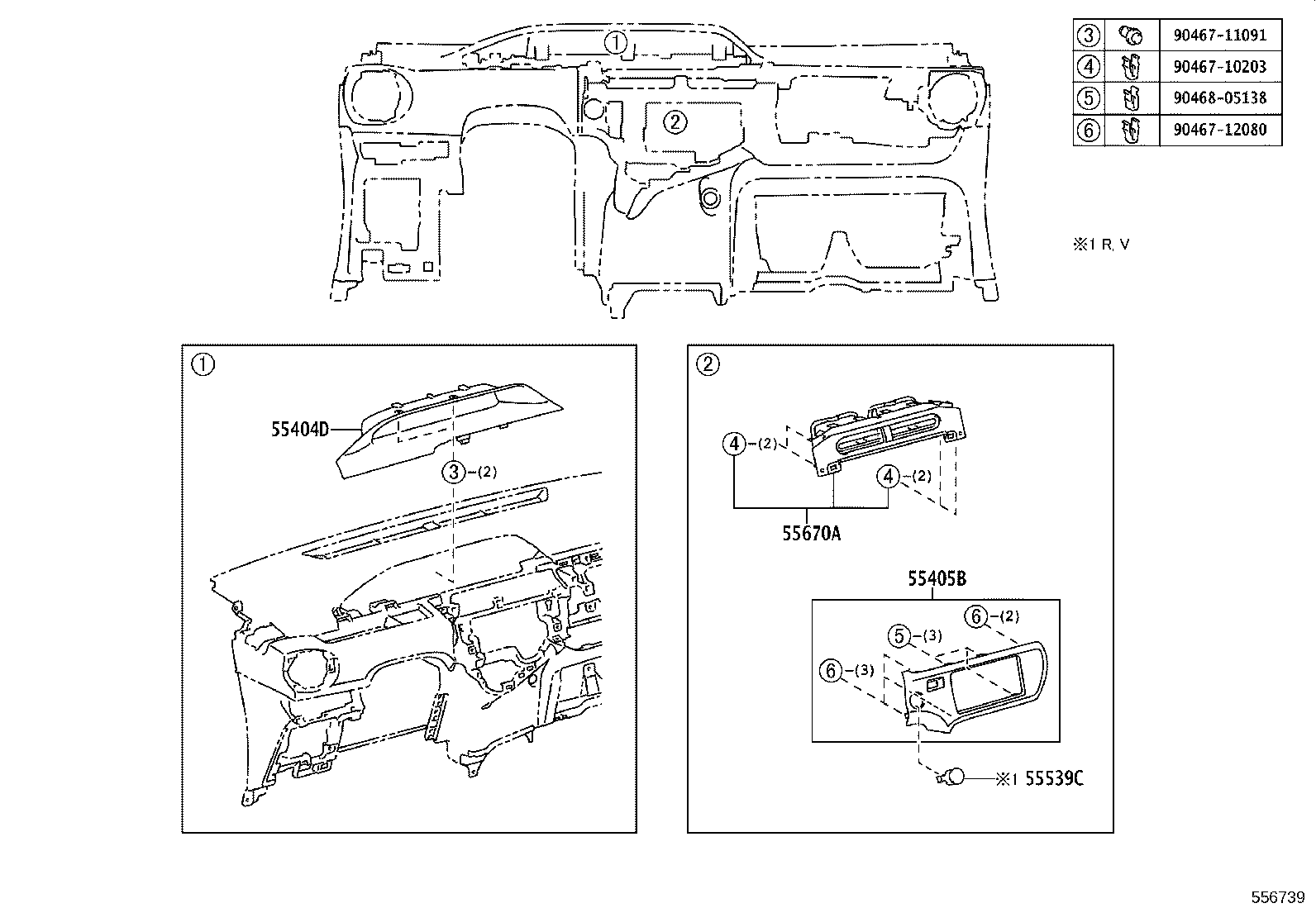

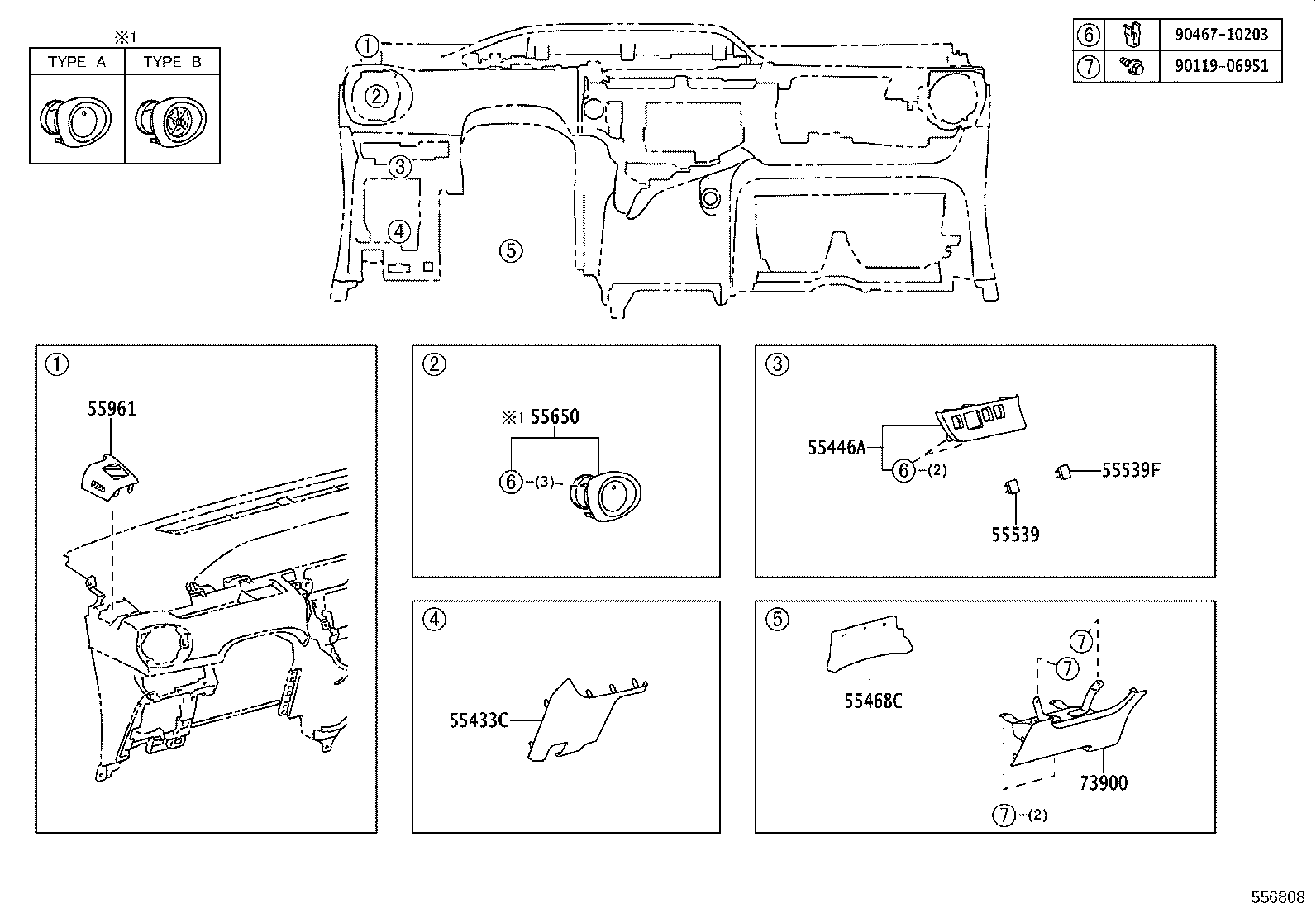

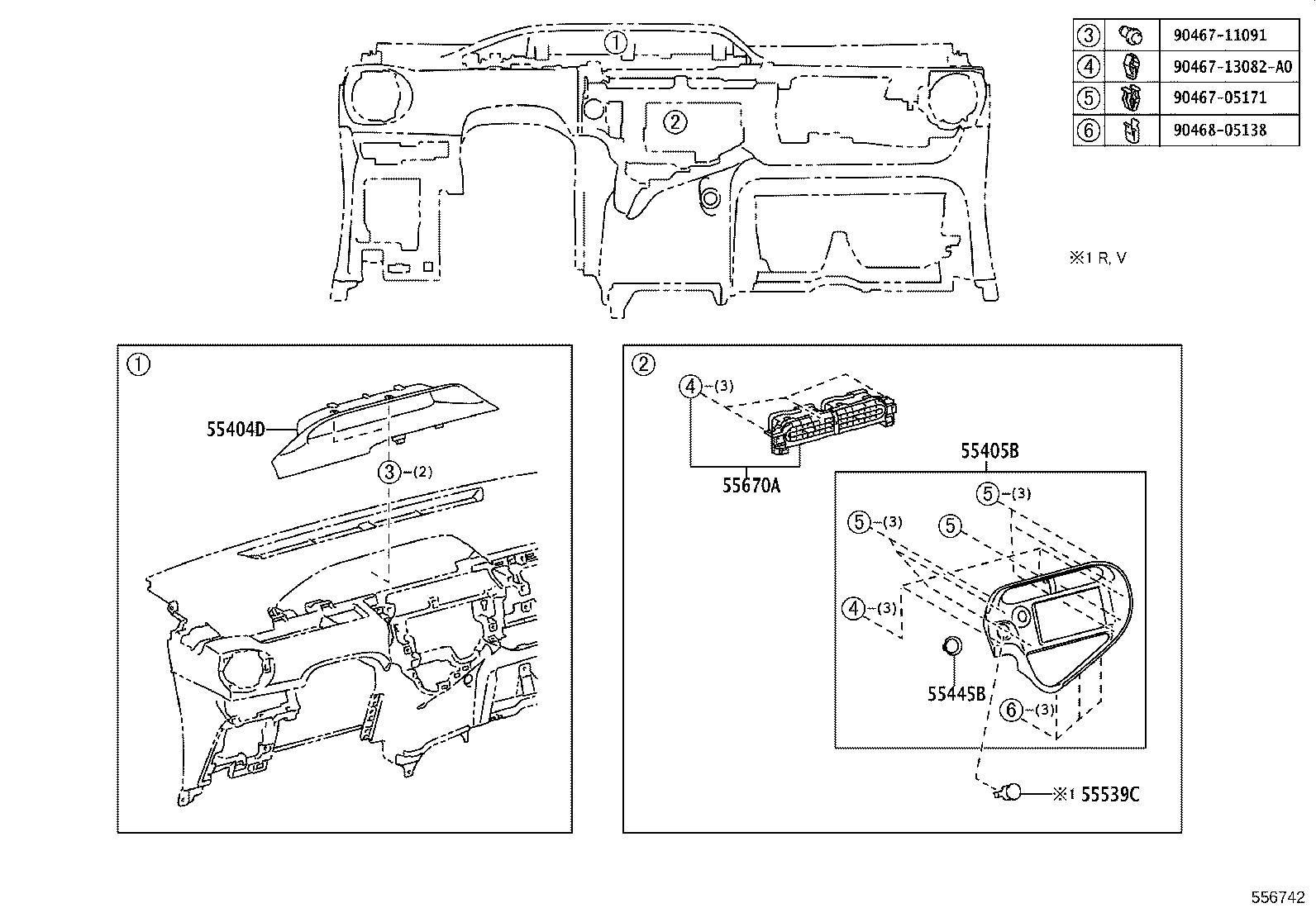

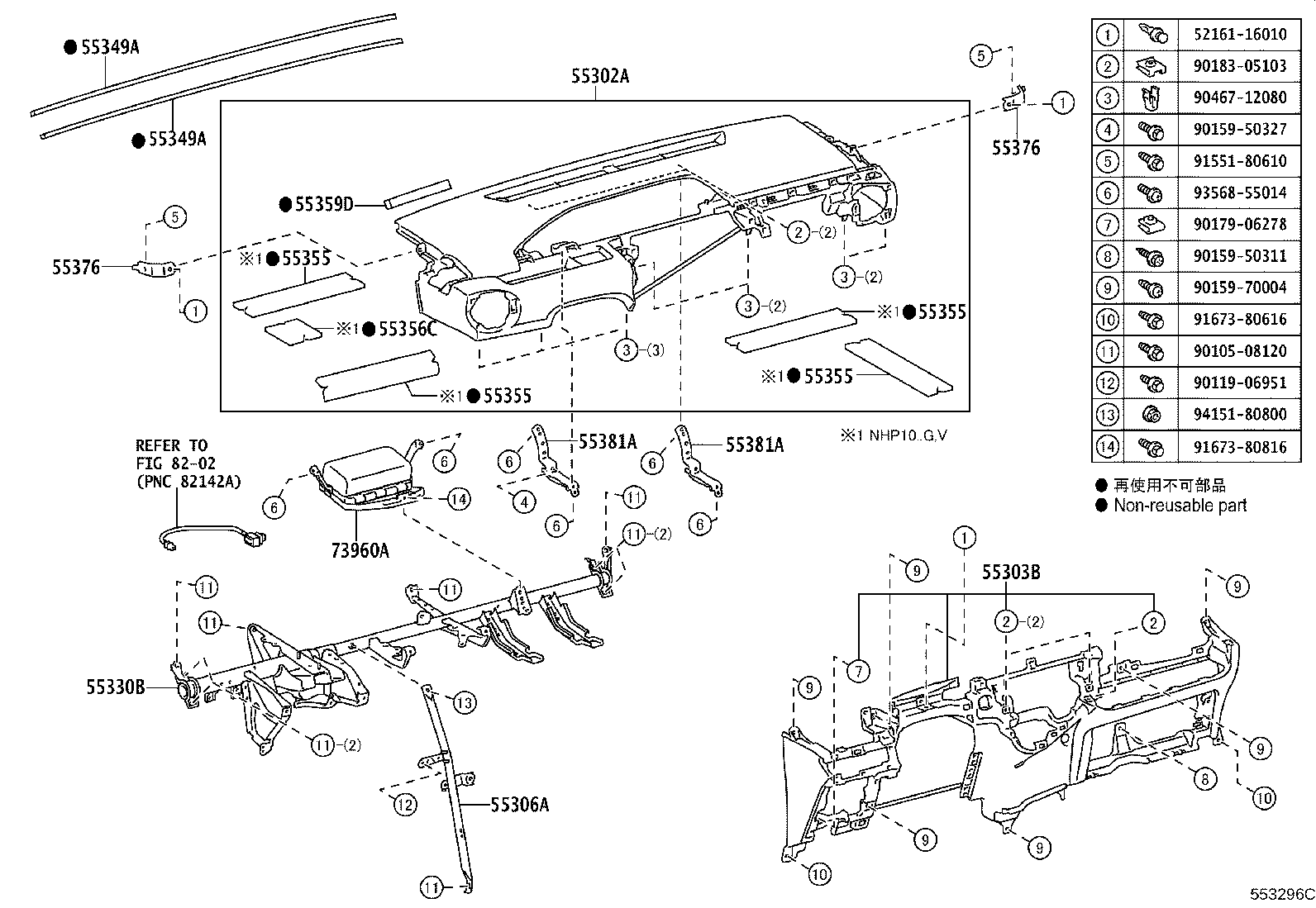

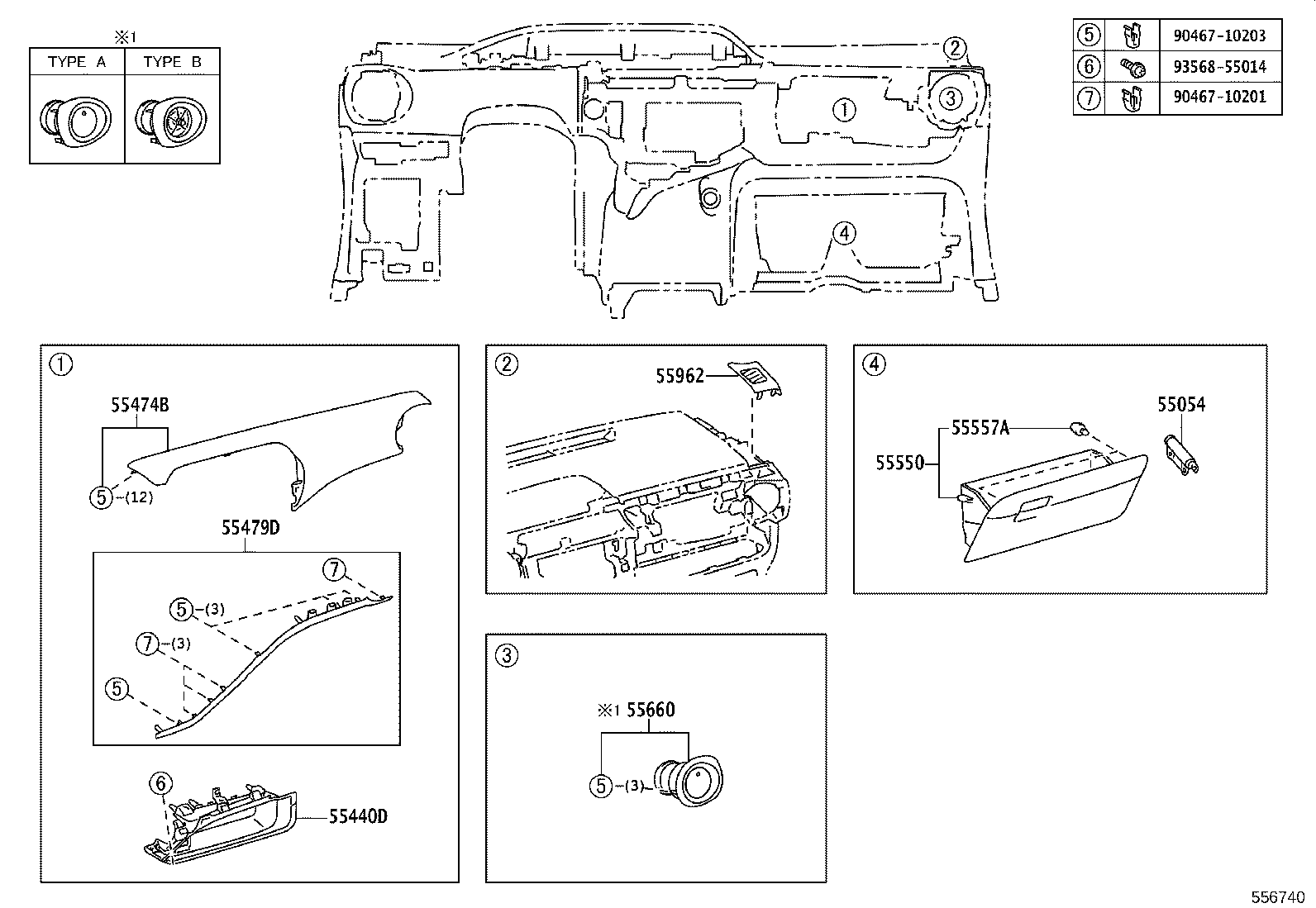

Instrument Panel & Glove Compartment
34 part groups · 8 illustrations
Part groups
| PNC | Description |
|---|---|
| 55054 | Stopper Sub-assy, Glove Compartment Door |
| 55302A | Panel Sub-assy, Instrument, Upper |
| 55303B | Panel Sub-assy, Instrument, Lower |
| 55306A | Brace Sub-assy, Instrument Panel, NO.1 |
| 55330B | Reinforcement Assy, Instrument Panel |
| 55349A | Cushion, Instrument Panel |
| 55355 | Cushion, Instrument Panel, NO.1 |
| 55356C | Cushion, Instrument Panel, NO.2 |
| 55359D | Cushion, Instrument Panel, NO.5 |
| 55376 | Bracket, Instrument Panel Mounting, NO.1 |
| 55381A | Bracket, Finish Panel Mounting |
| 55404D | Panel Sub-assy, Instrument Cluster Finish |
| 55405B | Panel Sub-assy, Instrument Cluster Finish, Center |
| 55433C | Panel, Instrument Panel Finish, Lower LH |
| 55440D | Box Assy, Instrument Panel |
| 55445B | Plate, Instrument Panel Finish |
| 55446A | Base, Switch Hole, NO.1 |
| 55468C | Seal, Instrument Cluster Finish Panel, NO.1 |
| 55474B | Garnish, Instrument Cluster Finish Panel |
| 55479D | Garnish, Instrument Cluster Finish Panel, Lower |
| 55539 | Cover, Spare Switch Hole |
| 55539C | Cover, Spare Switch Hole |
| 55539F | Cover, Spare Switch Hole |
| 55539G | Cover, Spare Switch Hole |
| 55539P | Cover, Spare Switch Hole |
| 55550 | Door Assy, Glove Compartment |
| 55557A | Cushion, Glove Compartment Door Check |
| 55650 | Register Assy, Instrument Panel, NO.1 |
| 55660 | Register Assy, Instrument Panel, NO.2 |
| 55670A | Register Assy, Instrument Panel, Center |
| 55961 | Nozzle, Side Defroster, NO.1 |
| 55962 | Nozzle, Side Defroster, NO.2 |
| 73900 | Airbag Assy, Instrument Panel, Lower NO.1 |
| 73960A | Airbag Assy, Instrument Panel Passenger W/O Door |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
