Toyota Prius C

2011-12 → 2021-06 · chassis NHP10 · catalogue 125410 · United States

Supported model Data version 2022-07

Roof Panel & Back Window Glass

41 part groups · 3 illustrations

PNC	Description
61824A	Plate, Noise Control, NO.1
61824J	Pad, Noise Shutter, NO.1
63102A	Panel Sub-assy, Windshield Header
63105A	Frame Sub-assy, Back Door Opening
63111	Panel, Roof
63118	Support, Roof Panel, RH
63119	Support, Roof Panel, LH
63141G	Reinforcement, Roof Panel, NO.1
63141H	Reinforcement, Roof Panel, Center
63142	Reinforcement, Roof Panel, NO.2
63143B	Reinforcement, Roof Panel, NO.3
63144A	Reinforcement, Roof Panel, NO.4
63145A	Reinforcement, Roof Panel, NO.5
63146A	Bracket, Roof Panel Reinforcement, NO.1
63147F	Bracket, Roof Panel Reinforcement, RH
63148E	Bracket, Roof Panel Reinforcement, LH
63189A	Bracket, Roof Rack, Center

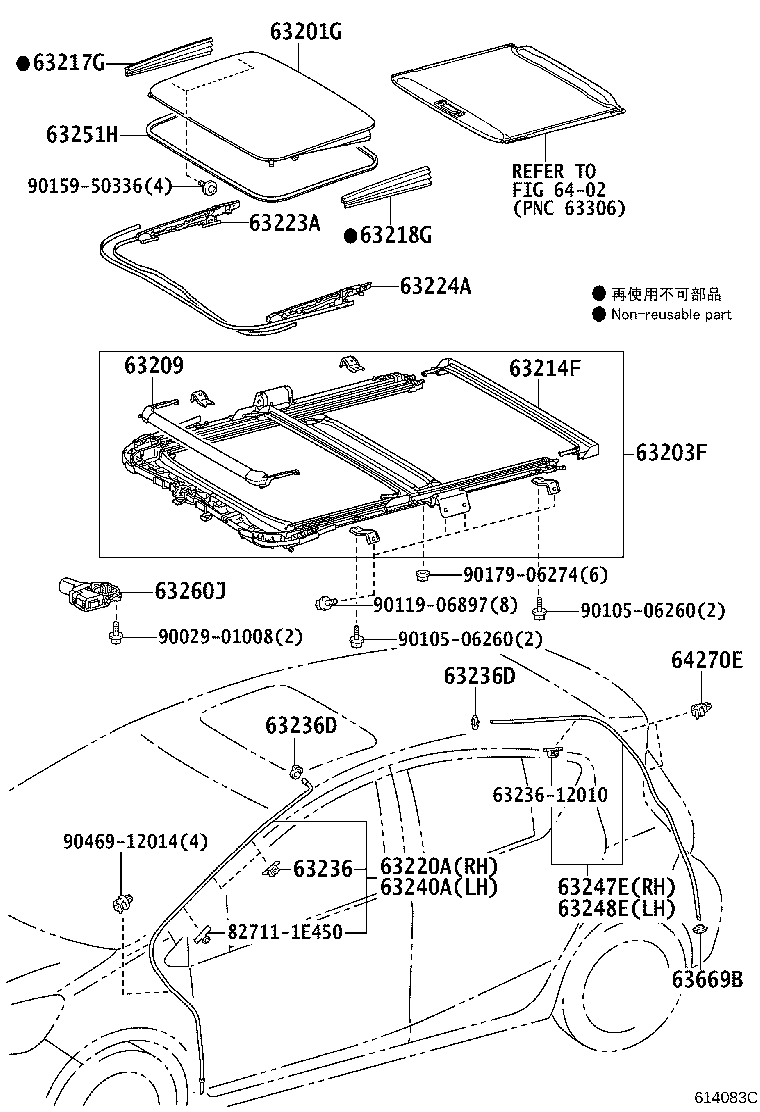

63201G	Glass Sub-assy, Sliding Roof
63203F	Housing Sub-assy, Sliding Roof
63209	Panel Sub-assy, Roof Wind Deflector
63214F	Channel, Roof Drip, Rear
63217G	Garnish, Sliding Roof Side, RH
63218G	Garnish, Sliding Roof Side, LH
63220A	Hose Assy, Sliding Roof Drain, RH
63223A	Cable, Sliding Roof Drive, RH
63224A	Cable, Sliding Roof Drive, LH
63236	Clamp, Sliding Roof OR Removable Roof Drain Hose
63236D	Clamp, Sliding Roof Drain Hose
63240A	Hose Assy, Sliding Roof Drain, LH
63247E	Hose, Sliding Roof Drain, Rear RH
63248E	Hose, Sliding Roof Drain, Rear LH
63251H	Weatherstrip, Sliding Roof
63260J	Gear Assy, Sliding Roof Drive
63435C	Seal, Roof Carrier, NO.1 RH
63436B	Seal, Roof Carrier, NO.1 LH

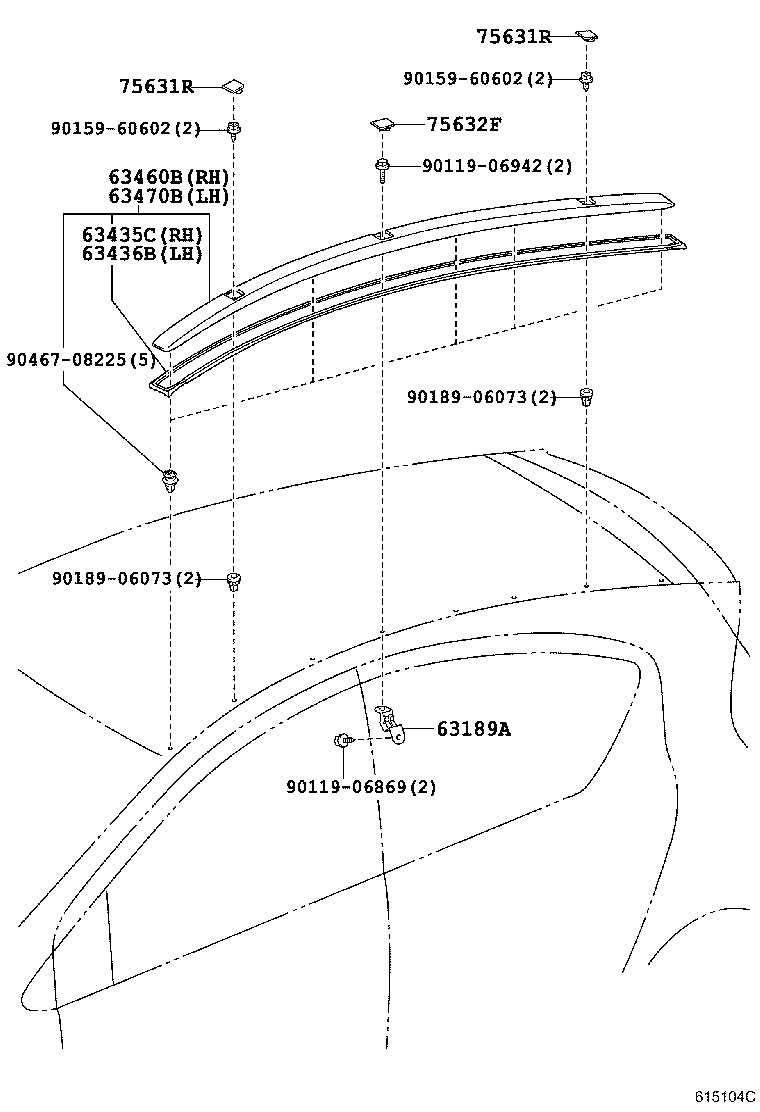

63460B	Rack Assy, Roof, RH
63470B	Rack Assy, Roof, LH
63669B	Grommet, Sliding Roof Drain
64270E	Clip
75631R	Garnish, Roof Top, NO.1
75632F	Garnish, Roof Top, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
