Toyota Prius C
2011-12 → 2021-06 · chassis NHP10 · catalogue 125410 · United States
Supported model
Data version 2022-07

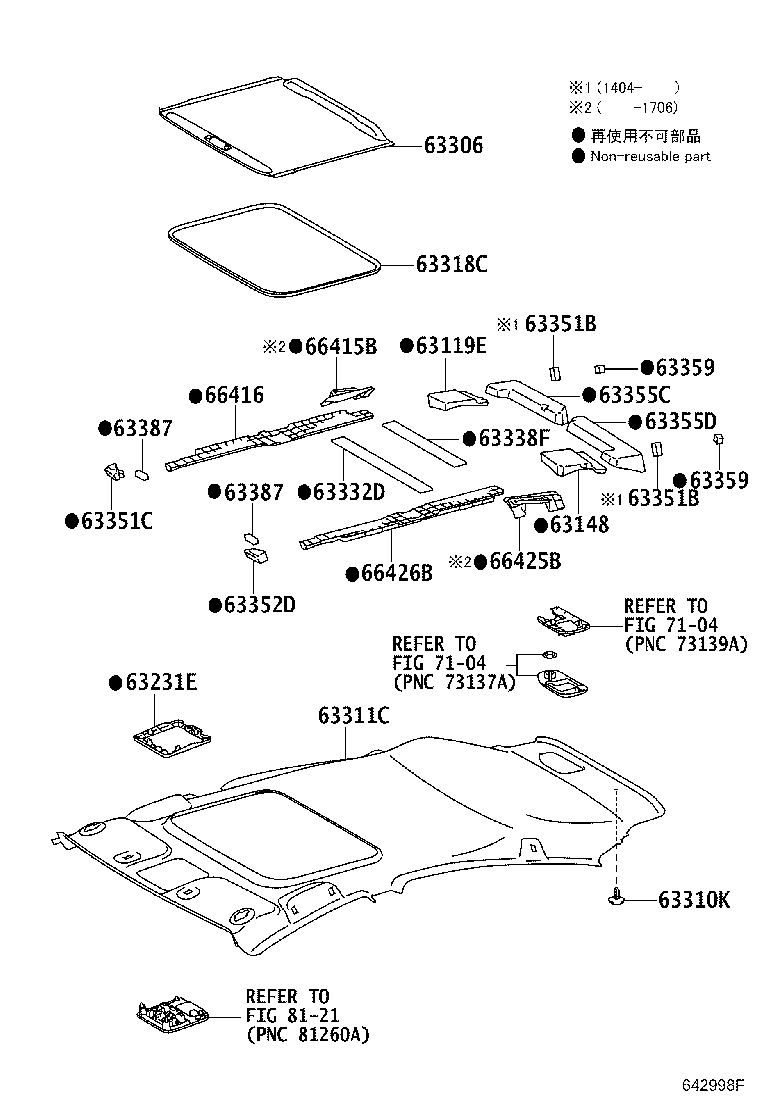

Roof Headlining & Silencer Pad
29 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62435B | Pad, Roof Side Rail, Front RH |
| 62436 | Pad, Roof Side Rail, Front LH |
| 63119E | Pad, Roof Panel, NO.1 |
| 63148 | Pad, Roof Panel |
| 63231E | Bracket, Room Lamp |
| 63306 | Trim Sub-assy, Sunshade |
| 63310K | Clip |
| 63311C | Headlining, Roof |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63332D | Pad, Sun Roof Headlining |
| 63338F | Protector, Sun Roof Headlining Trim, Center NO.2 |
| 63341 | Pad, Roof Silencer, NO.1 |
| 63341D | Pad, Roof Silencer, Front |
| 63341G | Pad, Roof Silencer |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63343 | Pad, Roof Silencer, NO.3 |
| 63351B | Pad, Roof Headlining |
| 63351C | Pad, Roof Headlining |
| 63352D | Pad, Roof Headlining, NO.2 |
| 63355C | Pad, Roof Headlining, RH |
| 63355D | Pad, Roof Headlining, LH |
| 63359 | Pad, Roof Headlining End |
| 63359B | Cover, Roof Headlining Retainer |
| 63387 | Pad, Roof Headlining Forming |
| 63388A | Cover, Roof Headlining Holder |
| 66415B | Spacer, Side Rail, Rear NO.2 RH |
| 66416 | Spacer, Side Rail, Rear NO.3 RH |
| 66425B | Spacer, Side Rail, Rear NO.2 LH |
| 66426B | Spacer, Side Rail, Rear NO.3 LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
