Toyota Prius C

2011-12 → 2021-06 · chassis NHP10 · catalogue 125410 · United States

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

15 part groups · 2 illustrations

Illustrations

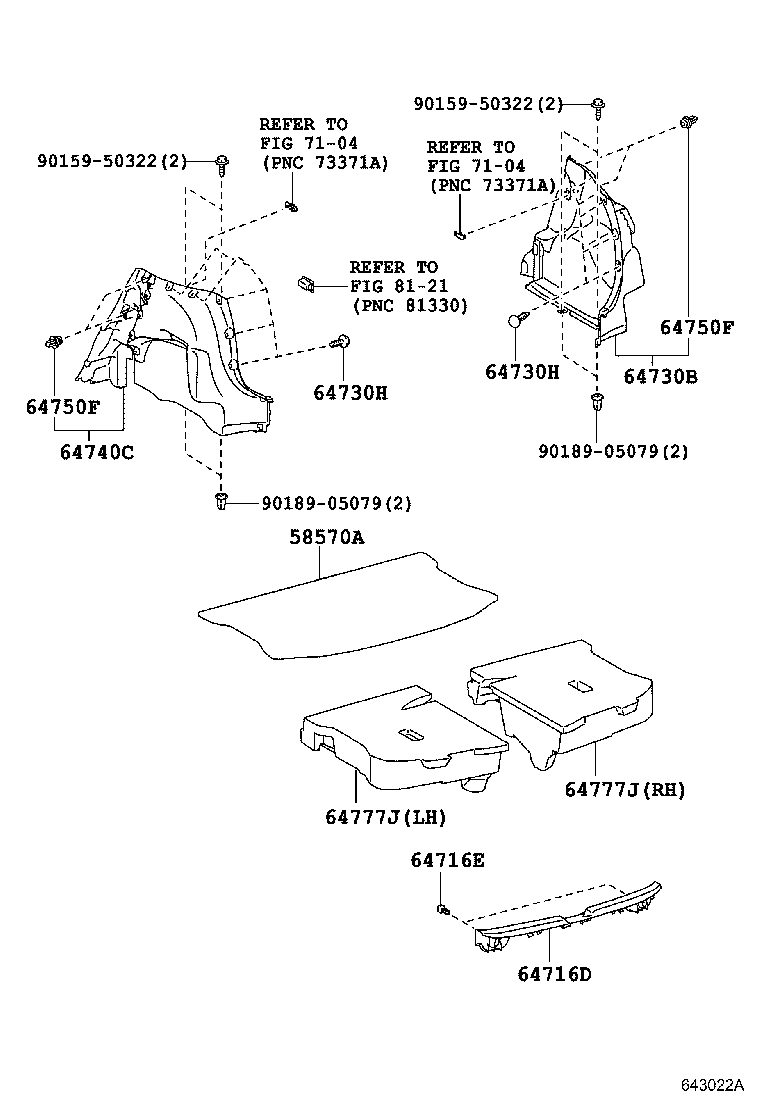

Figure 642987F 642987F 2011-12 → — Figure 643022A 643022A 2011-12 → —

Part groups

PNCDescription
58570A Mat Assy, Rear Floor
58731C Cap, Rear Absorber
58732C Cap, Rear Absorber
64306 Suspender Sub-assy, Package Tray Trim
64330D Panel Assy, Package Tray Trim
64376 Spacer, Package Tray Trim, NO.2
64381A Hanger, Package Tray Trim
64716D Cover, Deck Trim, Rear
64716E Clip(FOR DECK TRIM REAR COVER)
64730B Panel Assy, Deck Trim Side, RH
64730H Clip(FOR DECK TRIM SIDE PANEL)
64740C Panel Assy, Deck Trim Side, LH
64750F Clip(FOR DECK SIDE TRIM PANEL)
64754A Garnish, Deck Side, Rear, LH
64777J Cushion, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
