Toyota Prius C

2011-12 → 2021-06 · chassis NHP10 · catalogue 125410 · United States

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Seat & Seat Track

30 part groups · 3 illustrations

Illustrations

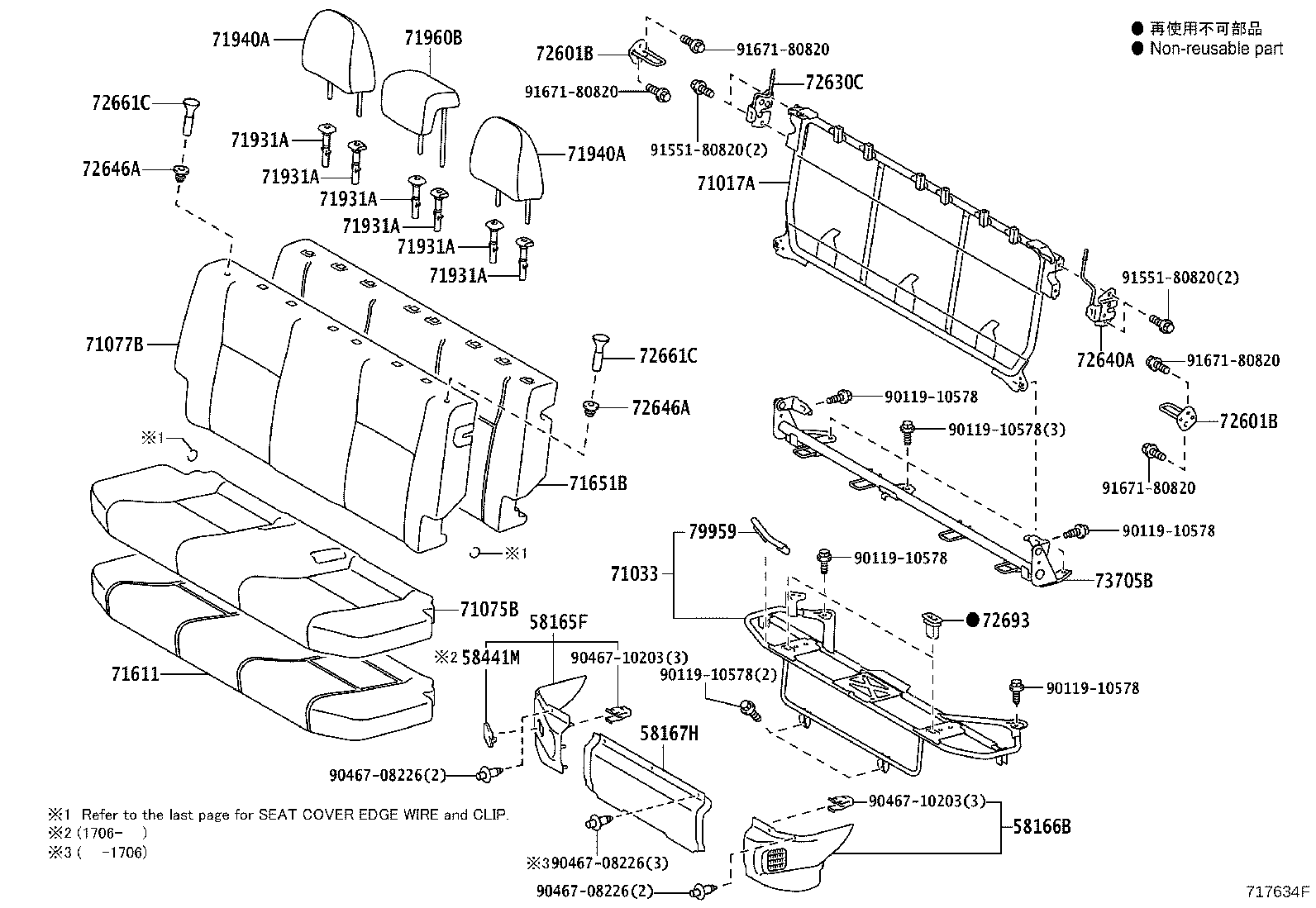

Figure 717633J 717633J 2011-12 → — Figure 717634F 717634F 2011-12 → — Figure 719024I 719024I 2011-12 → —

Part groups

PNCDescription
58165F Cover, Front Floor, RH
58166B Cover, Front Floor, LH
58167H Cover, Front Floor, Center
58441M Cover, Battery Service Hole
71017 Frame Sub-assy, Rear Seatback, RH
71017A Frame Sub-assy, Rear Seatback
71018 Frame Sub-assy, Rear Seatback, LH
71033 Leg Sub-assy, Rear Seat Cushion
71075B Cover, Rear Seat Cushion (FOR BENCH TYPE)
71077B Cover, Rear Seatback (FOR BENCH TYPE)
71077S Cover, Rear Seatback, RH (FOR SEPARATE TYPE)
71078S Cover, Rear Seatback, LH(FOR SEPARATE TYPE)
71611 Pad, Rear Seat Cushion
71651B Pad, Rear Seatback(FOR BENCH TYPE)
71651S Pad, Rear Seatback, RH(FOR SEPARATE TYPE)
71652S Pad, Rear Seatback, LH(FOR SEPARATE TYPE)
71931A Support, Rear Seat Headrest
71940A Headrest Assy, Rear Seat
71960B Headrest Assy, Rear Seat, Center
72601B Striker Sub-assy, Rear Seatback Lock
72630C Lock Assy, Rear Seatback, RH
72640A Lock Assy, Rear Seatback, LH
72646A Grommet, Rear Seatback Stop Button
72661C Button, Rear Seatback Lock Release
72693 Hook, Rear Seat Cushion Lock
72996A Cover, Rear Seatback
72997B Cover, Rear Seatback
73198B Cover, Rear Seat Bracket
73705B Bracket Sub-assy, Cross Anchor
79959 Cover, RR Seat Leg
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
