Toyota Prius C

2011-12 → 2021-06 · chassis NHP10 · catalogue 125410 · United States

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mudguard & Spoiler

23 part groups · 6 illustrations

Illustrations

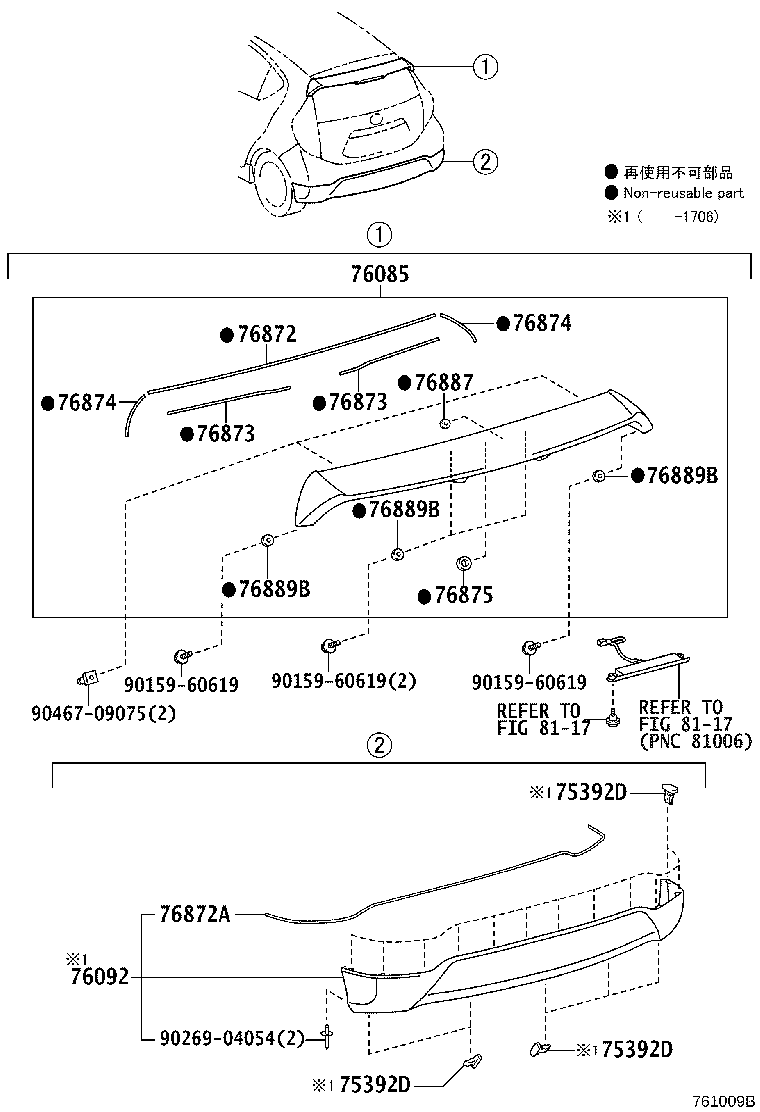

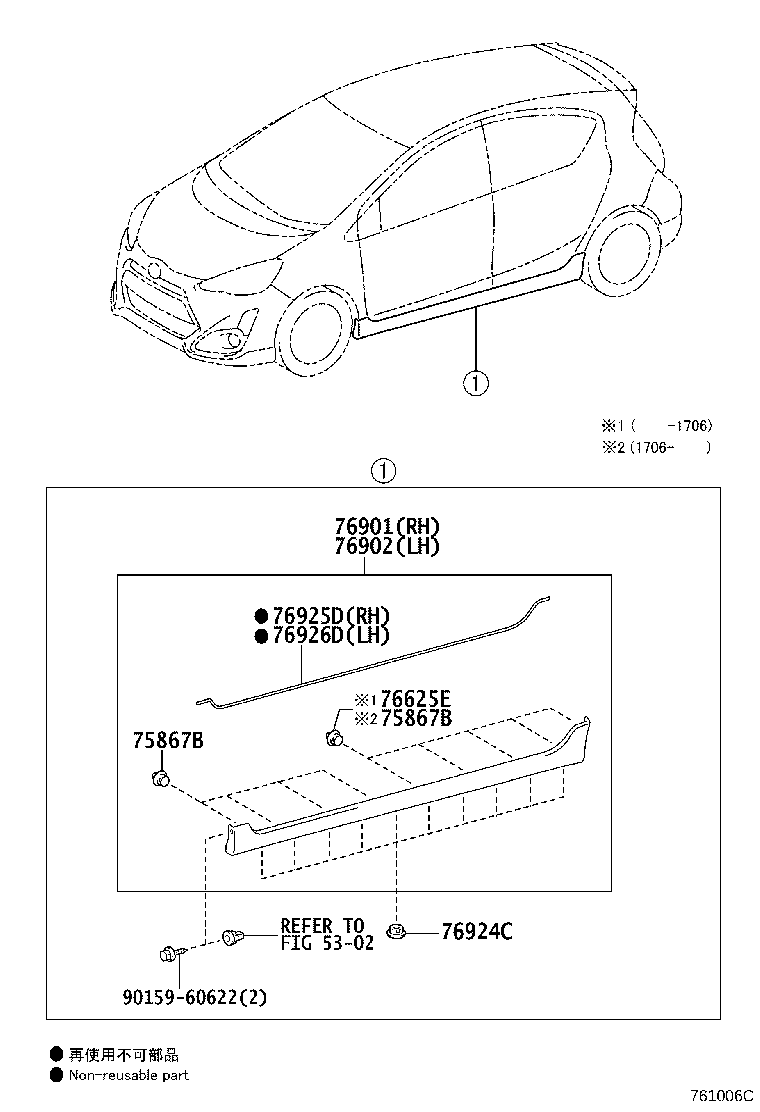

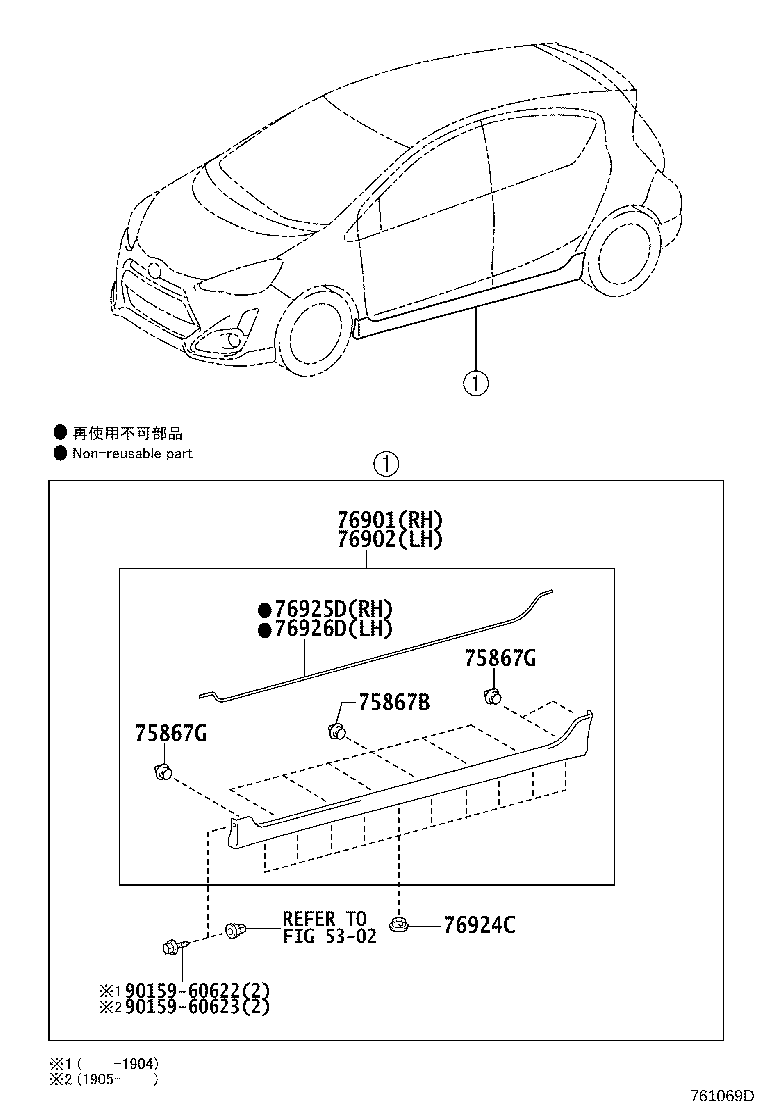

Figure 761001F 761001F 2011-12 → — Figure 761006C 761006C 2016-07 → 2016-12 Figure 761006C 761006C 2016-12 → 2017-06 Figure 761006C 761006C 2017-06 → 2017-07 Figure 761069D 761069D 2017-07 → — Figure 761009B 761009B 2011-12 → —

Part groups

PNCDescription
75392D Retainer, Outside Moulding
75867B Clip, Rocker Panel Moulding
75867G Clip, Rocker Panel Moulding NO.2
76081 Spoiler Sub-assy, Front
76081B Retainer, Front Spoiler
76085 Spoiler Sub-assy, Rear
76092 Spoiler Sub-assy, Rear Lower
76625E Clip
76851 Cover, Front Spoiler
76872 Protector, Rear Spoiler, NO.1
76872A Protector, Rear Spoiler, NO.1
76873 Protector, Rear Spoiler, NO.2
76874 Protector, Rear Spoiler, NO.3
76875 Protector, Rear Spoiler, NO.4
76877A Protector, Front Spoiler
76879E Clip, Front Spoiler
76887 Seal, Rear Spoiler
76889B Seal, Rear Spoiler, NO.1
76901 Mudguard Sub-assy, Side, RH
76902 Mudguard Sub-assy, Side, LH
76924C Retainer, Side Mudguard, NO.2
76925D Protector, Side Mudguard, RH
76926D Protector, Side Mudguard, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
