Toyota Prius C
2011-12 → 2021-06 · chassis NHP10 · catalogue 125410 · United States
Supported model
Data version 2022-07
Battery & Battery Cable
28 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|

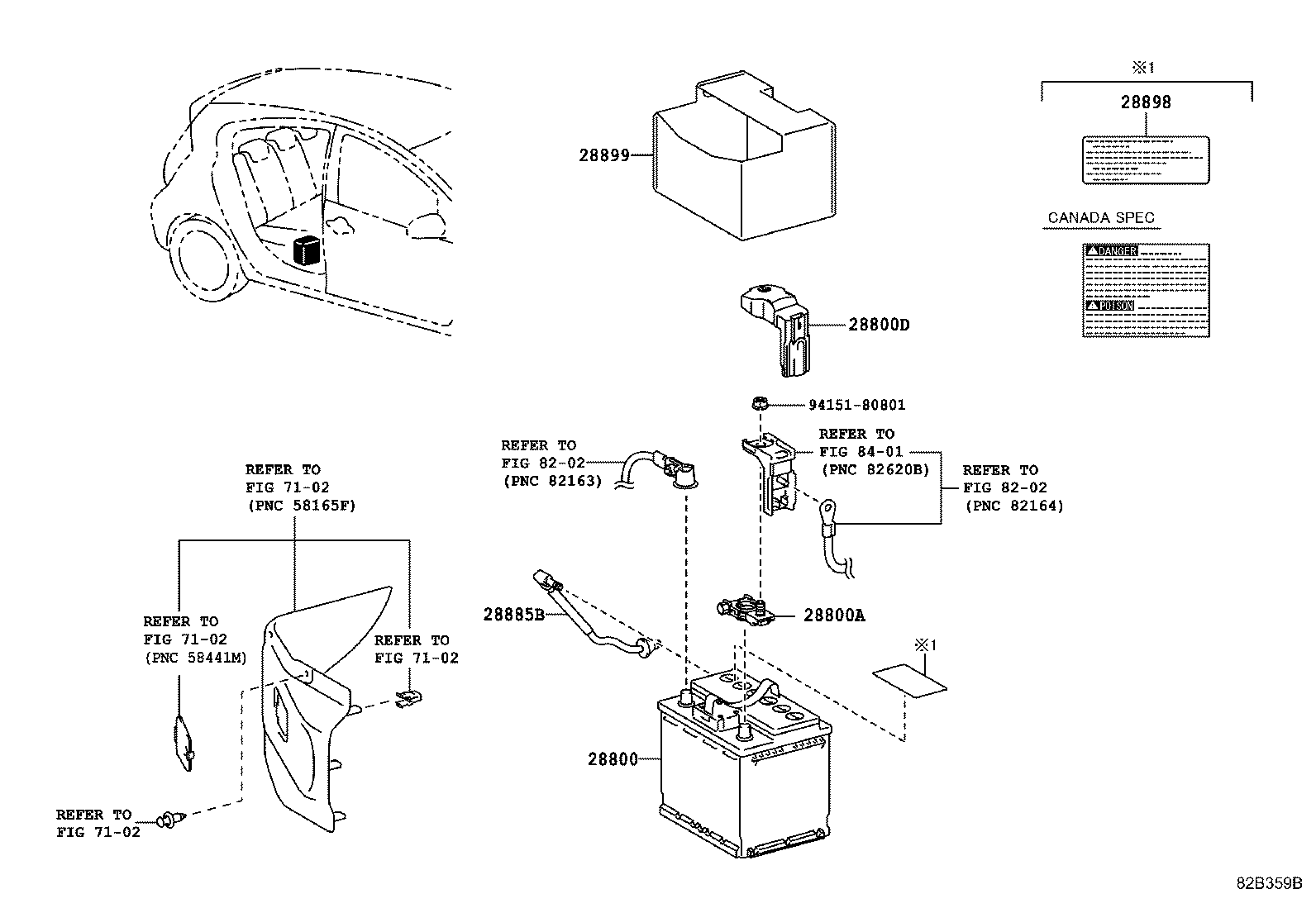

| 28800 | Battery |
| 28800A | Terminal, Battery Positive |
| 28800D | Cover, Connector(FOR BATTERY TERMINAL) |
| 28885B | Hose, Battery |
| 28898 | Plate, Battery |
| 28899 | Insulator, Battery |
| 82675C | Terminal, Junction |
| 82685E | Plate, Service Plug Caution |
| 82685F | Main Battery Caution Plate, NO.1 |
| 82815F | Cover, Wiring Harness Protector, NO.4 |
| 89892A | Sensor, Battery Voltage |
| G3834 | Grip, Service Plug |

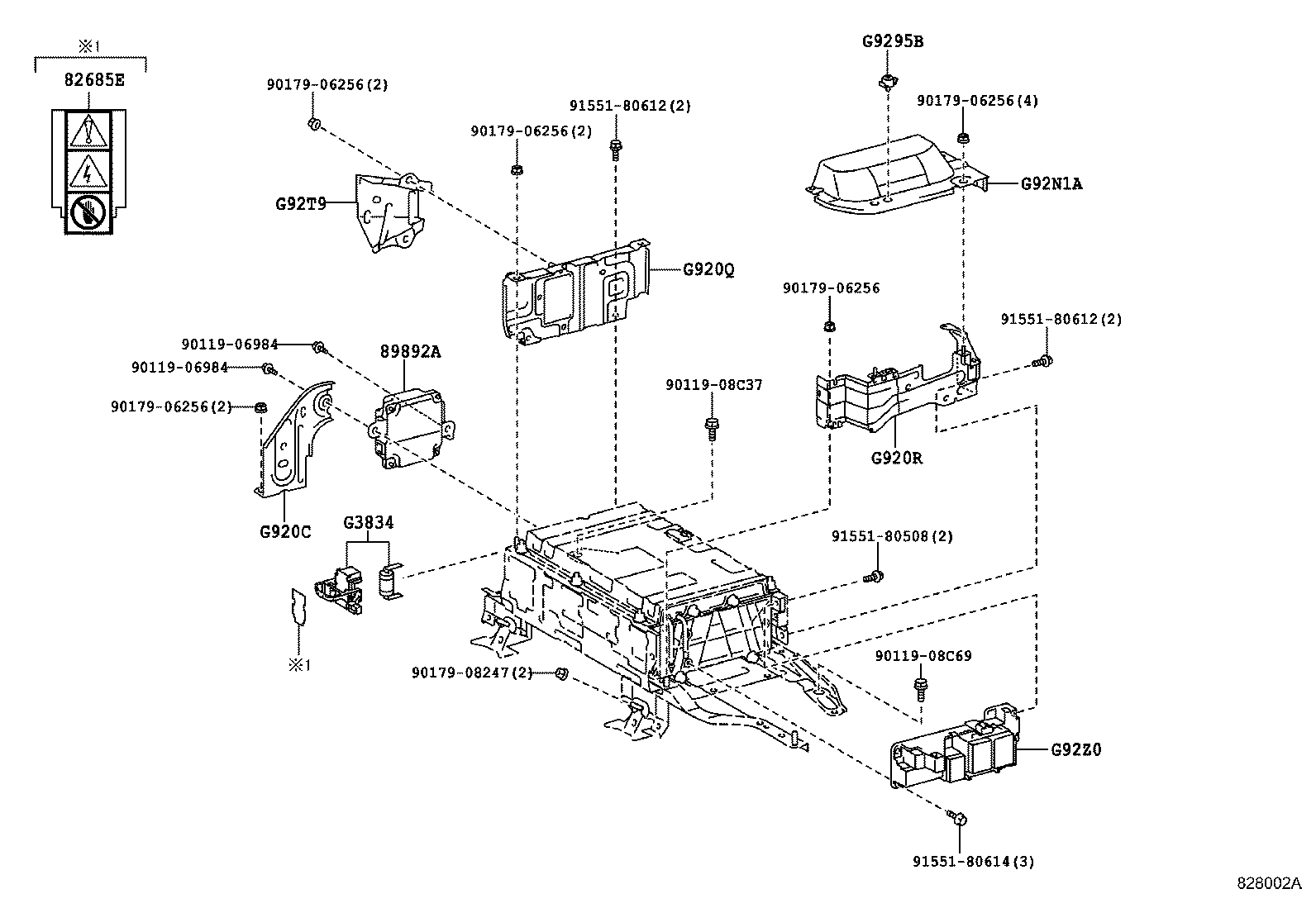

| G920C | Bracket Sub-assy, HV Battery Carrier, NO.2 |
| G920N | Cover Sub-assy, HV Battery, Upper NO.2 |
| G920Q | Shield Sub-assy, Hybrid Battery, NO.1 |
| G920R | Shield Sub-assy, Hybrid Battery, NO.2 |

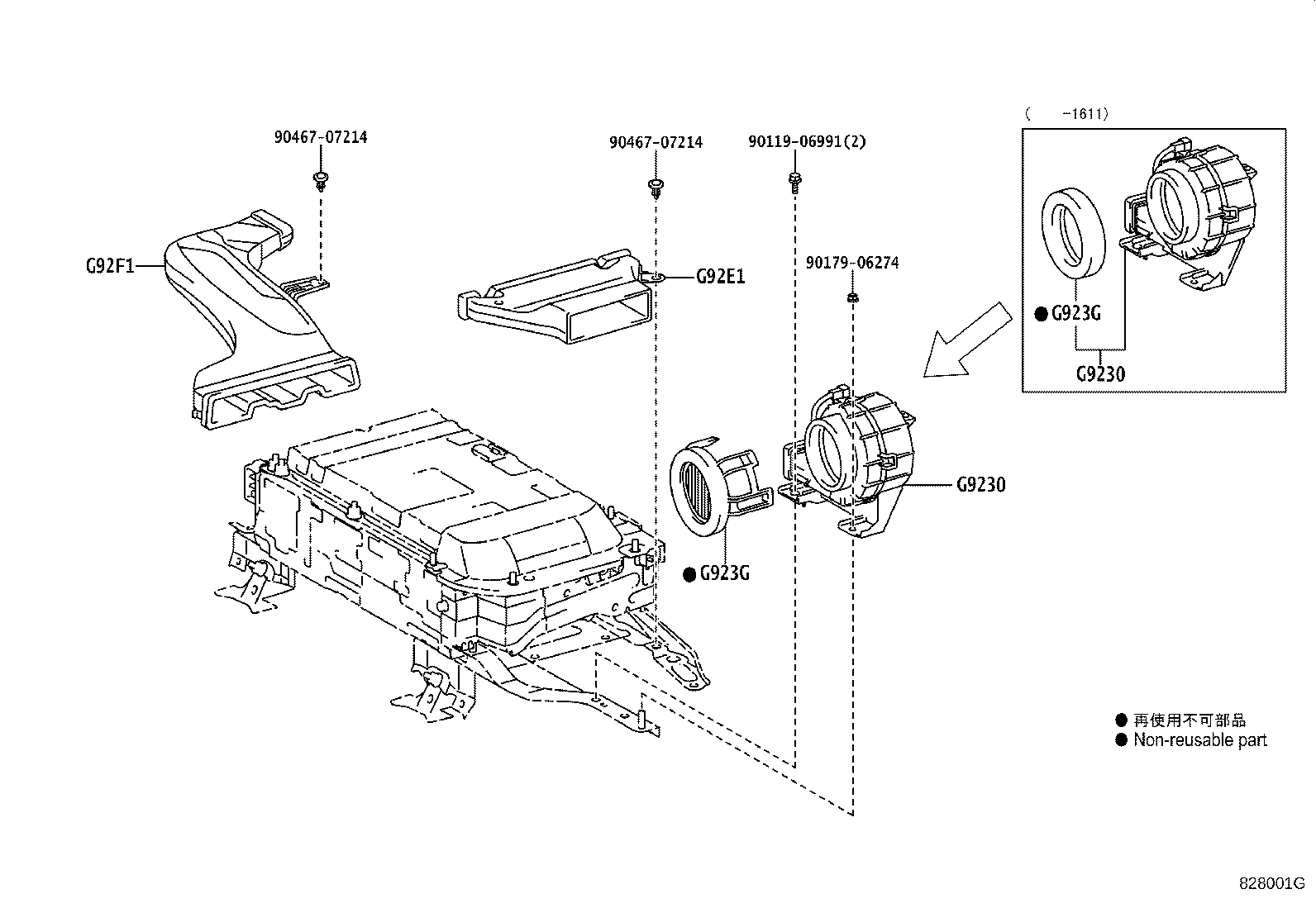

| G9230 | Blower Assy, Battery Cooling |
| G923G | Mesh, Battery Cooling Blower |
| G9282 | Thermistor, Hybrid Battery |
| G9288 | Label, Battery Charging Notice |
| G9295B | Striker, Battery Cover Lock |
| G92E1 | Duct, HV Battery Cover Intake, NO.1 |
| G92F1 | Duct, Hybrid Battery Exhaust, NO.1 |
| G92J5 | Packing, Hybrid Battery, NO.1 |
| G92N1A | Panel, HV Battery LH Cover, NO.1 |
| G92T9 | Cover, Hybrid Battery Service Plug |
| G92Z0 | Block Assy, HV Battery Junction |

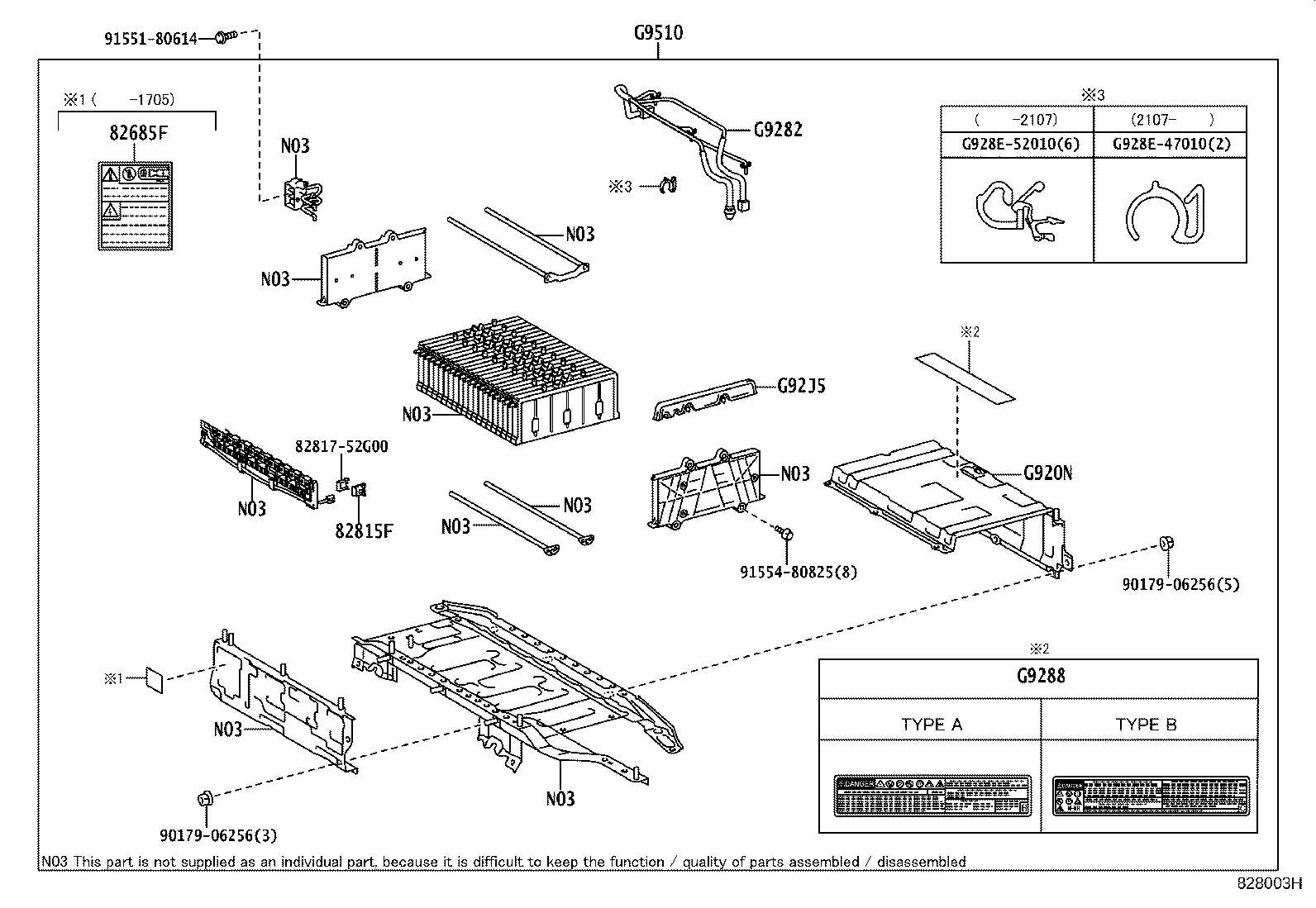

| G9510 | Battery Assy, HV Supply |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
