Toyota Prius C

2011-12 → 2021-06 · chassis NHP10 · catalogue 125410 · United States

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

33 part groups · 10 illustrations

Illustrations

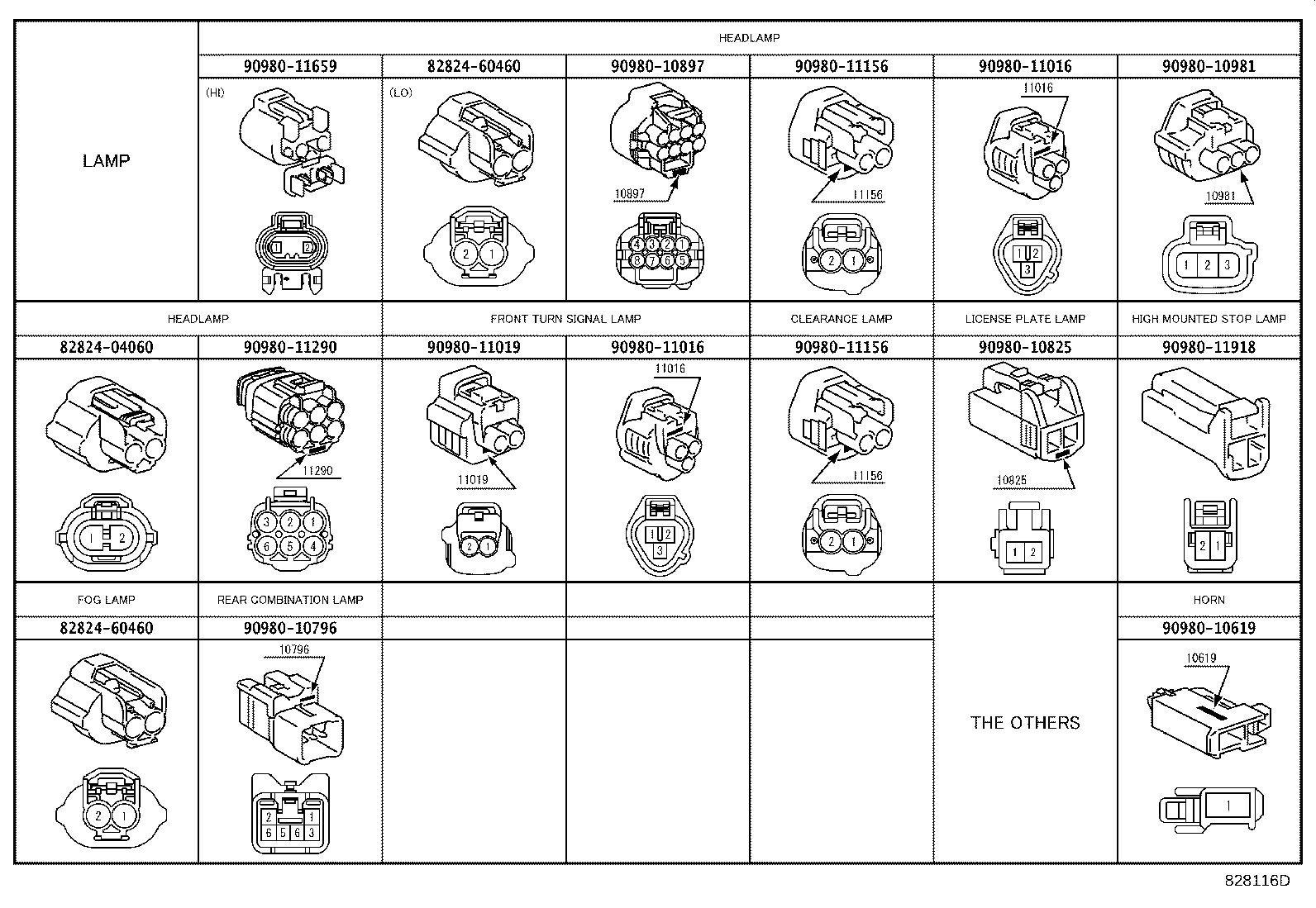

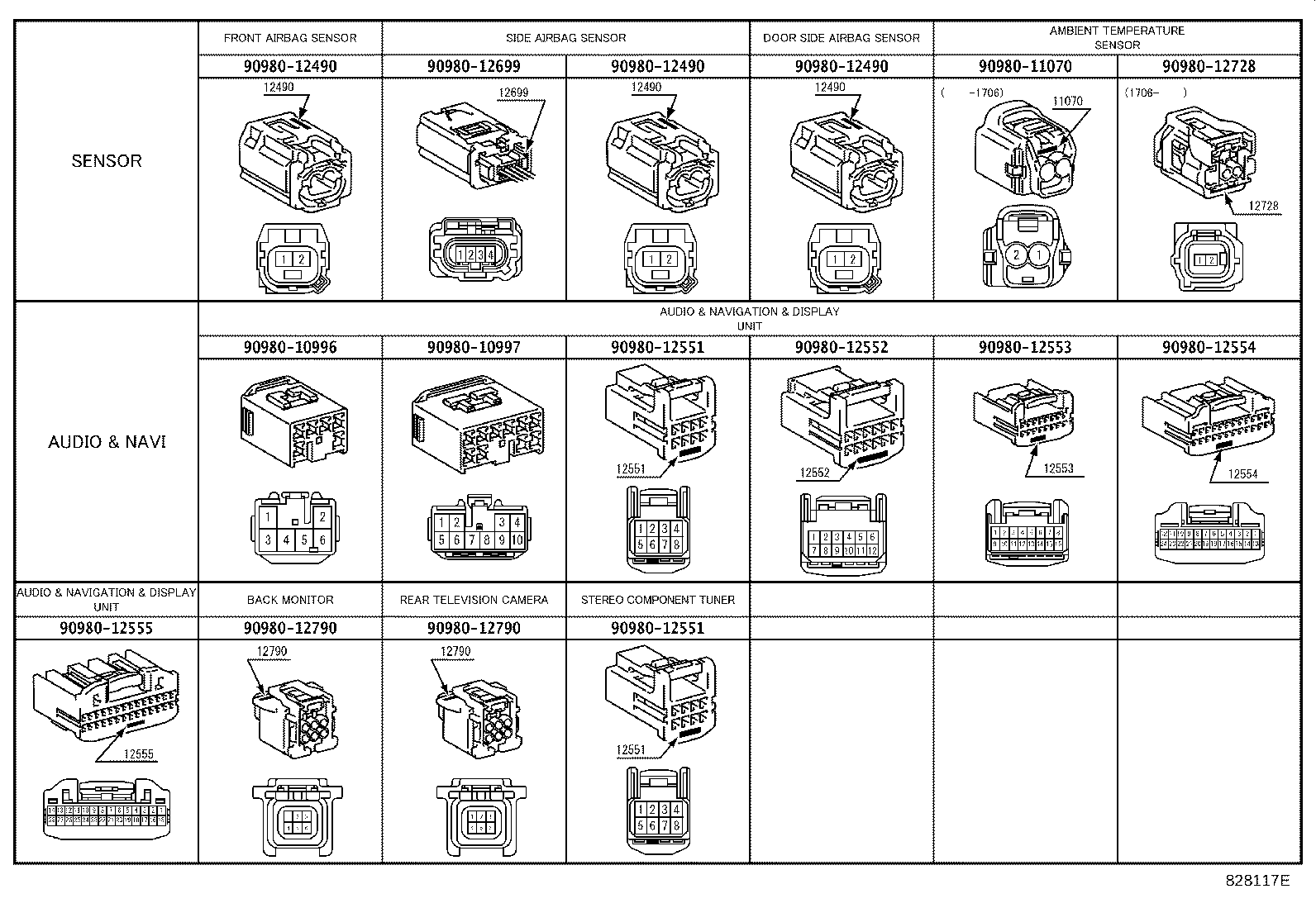

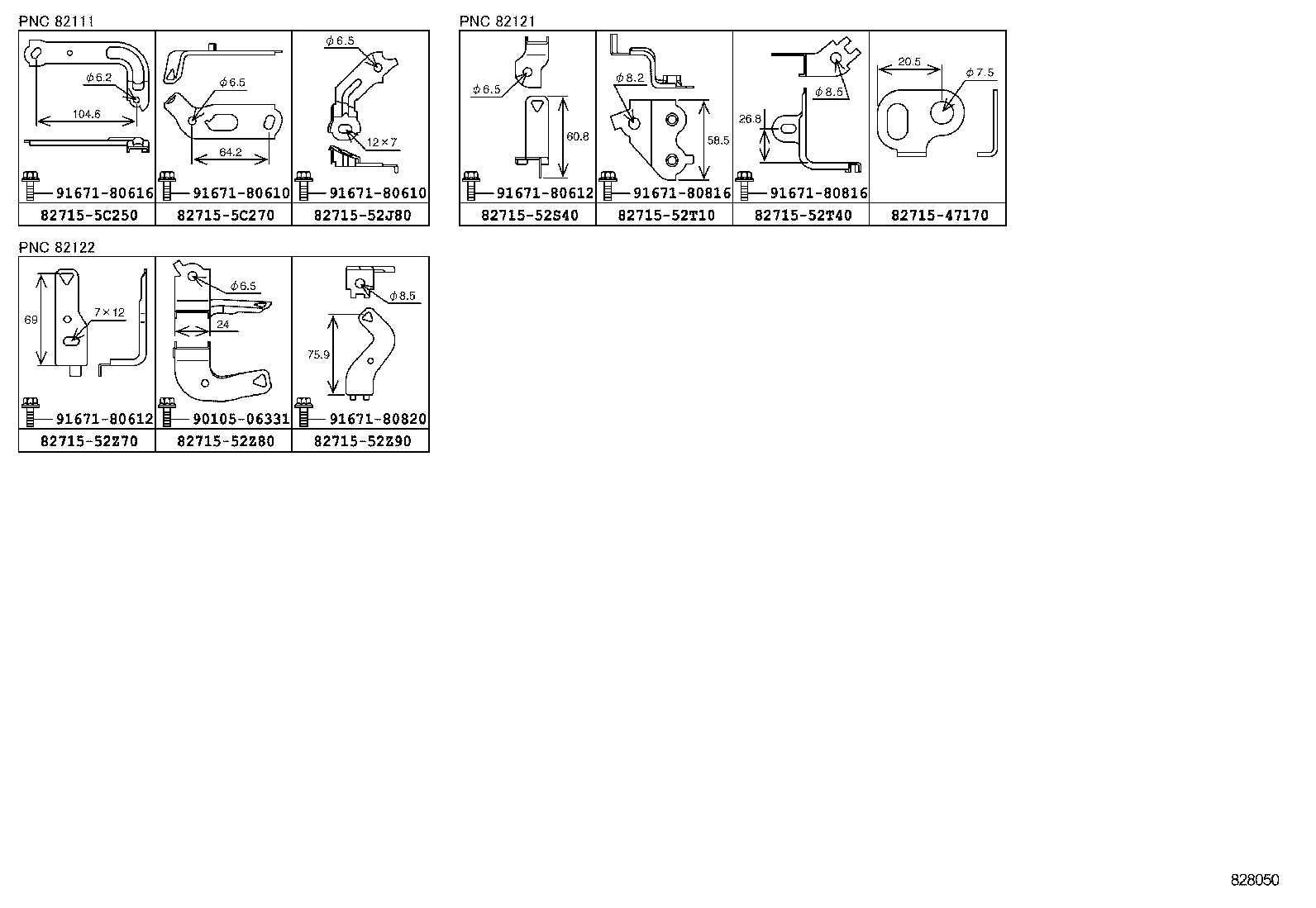

Figure 828043I 828043I 2011-12 → — Figure 828044B 828044B 2011-12 → — Figure 828045B 828045B 2011-12 → — Figure 828046B 828046B 2011-12 → — Figure 828047B 828047B 2011-12 → — Figure 828048D 828048D 2011-12 → — Figure 828049 828049 2011-12 → — Figure 828050 828050 2011-12 → — Figure 828116D 828116D 2011-12 → — Figure 828117E 828117E 2011-12 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82112B Wire, Engine Room, NO.2

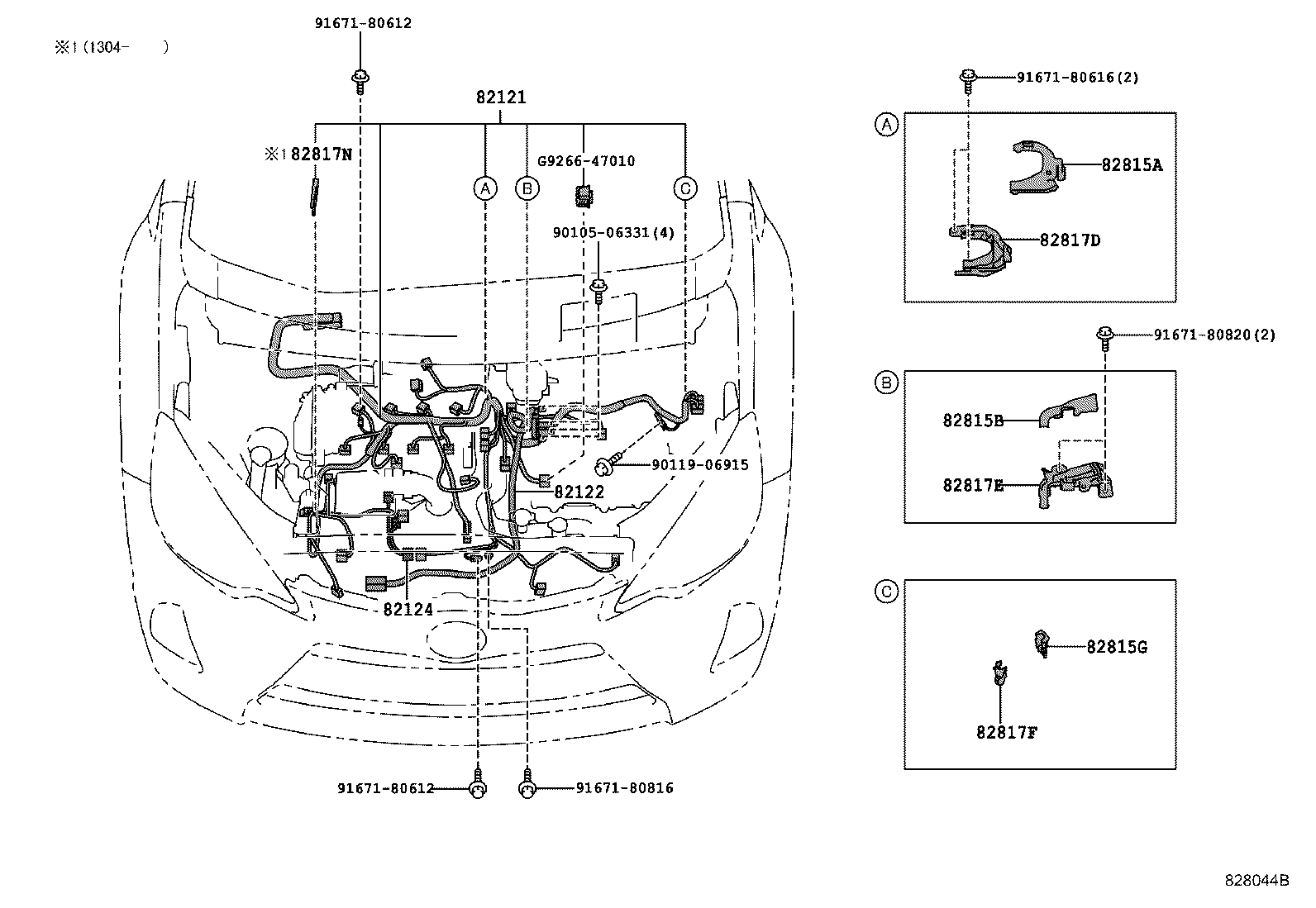

82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4

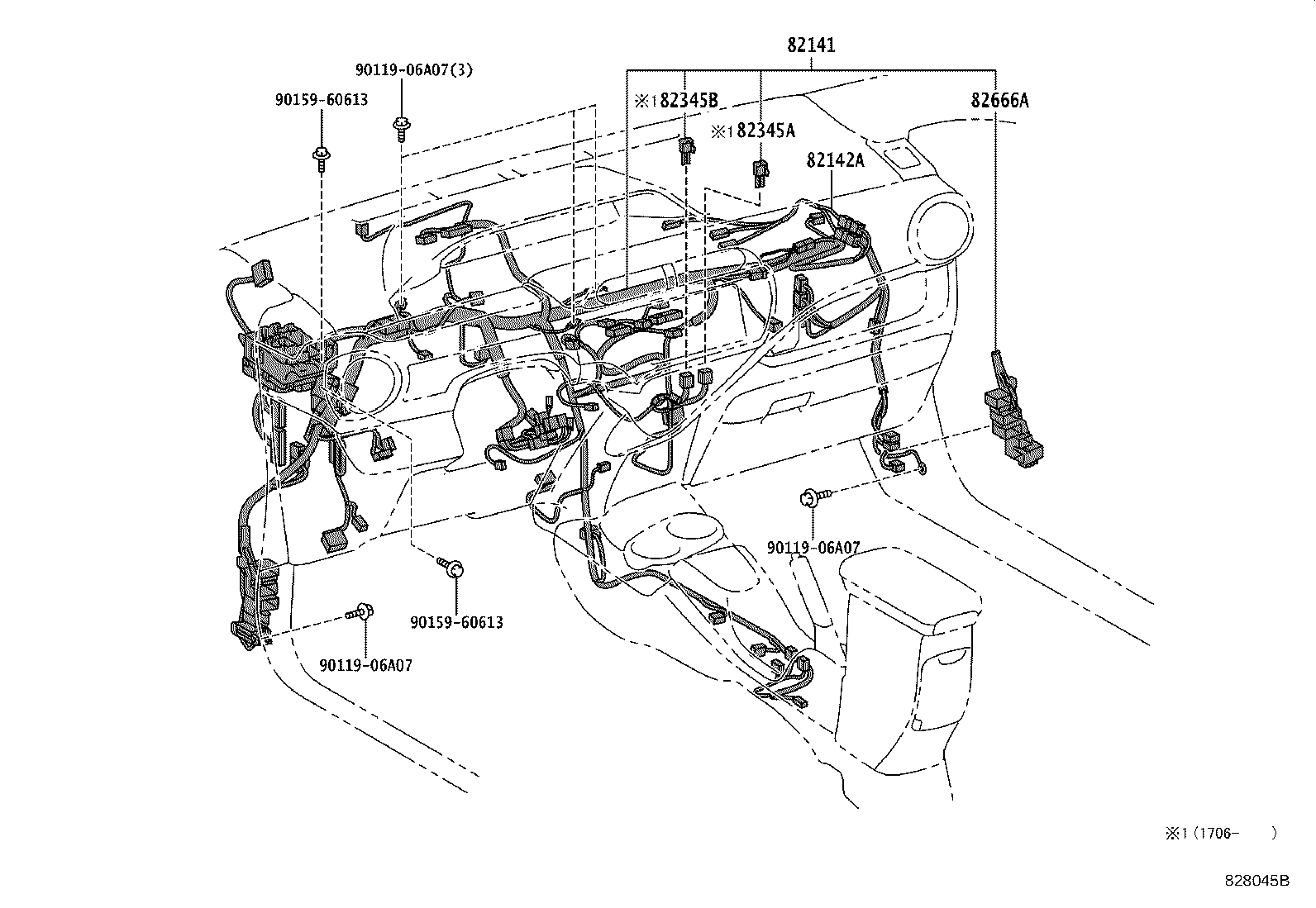

82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2

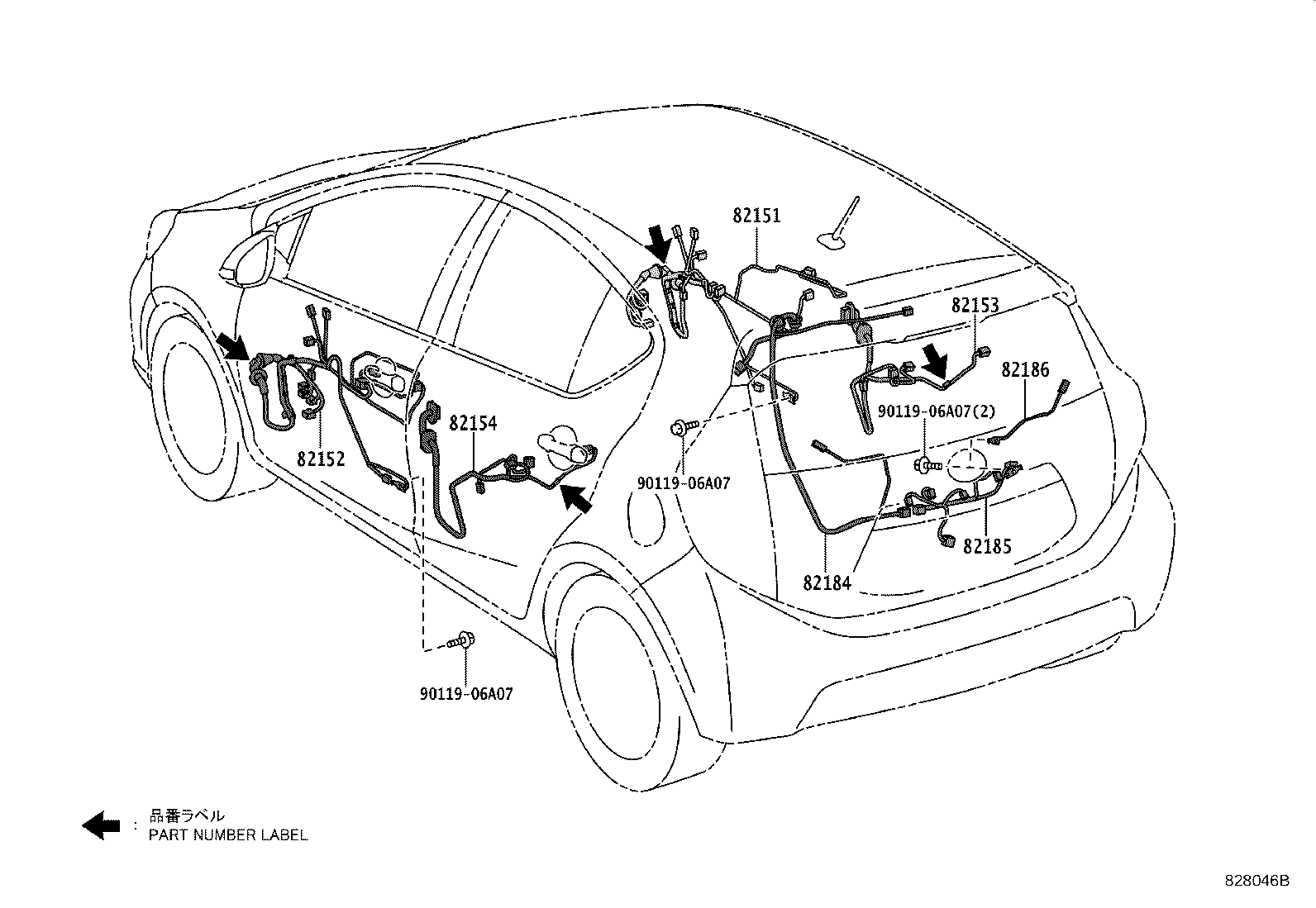

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

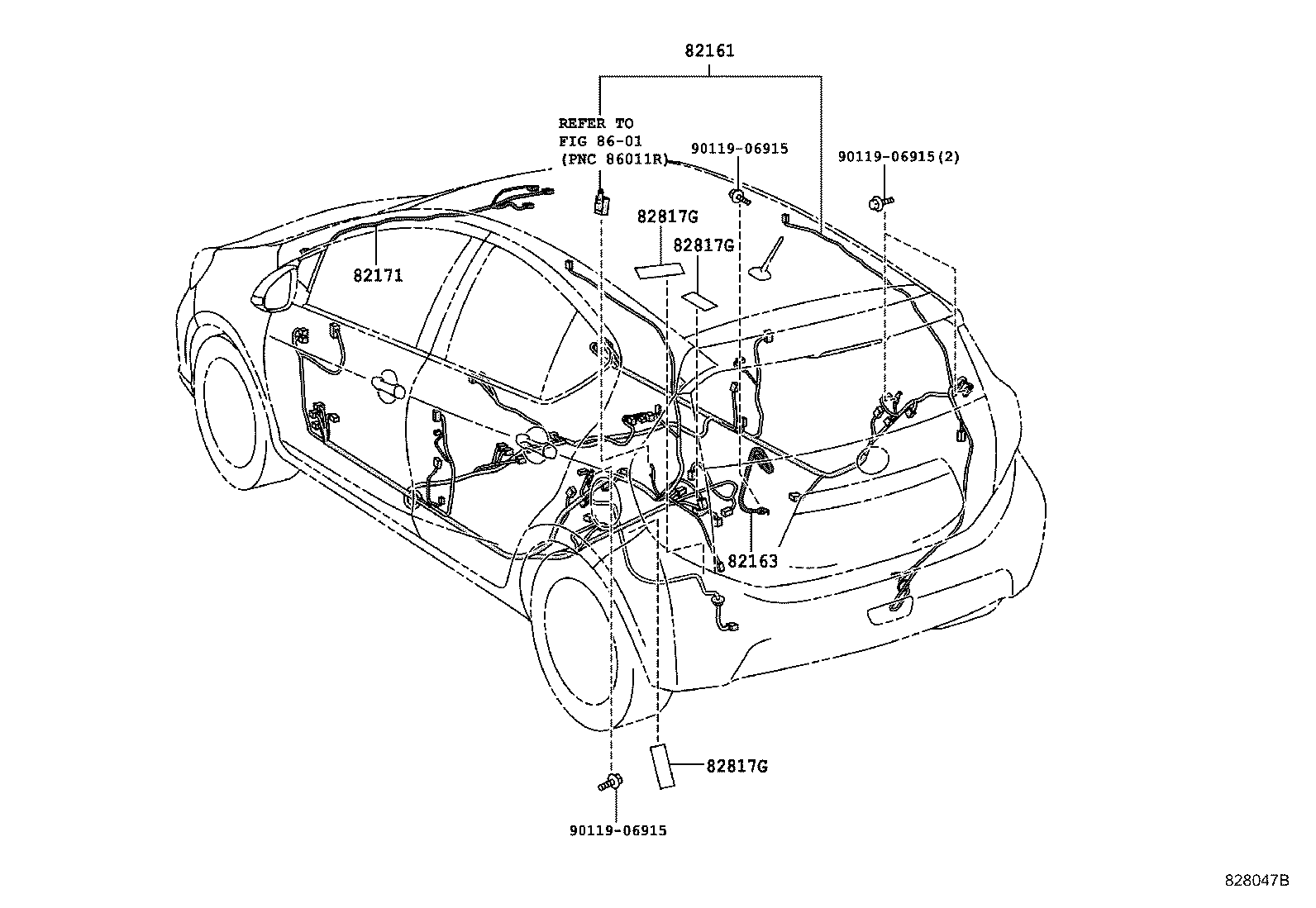

82161 Wire, Floor
82163 Wire, Floor, NO.3

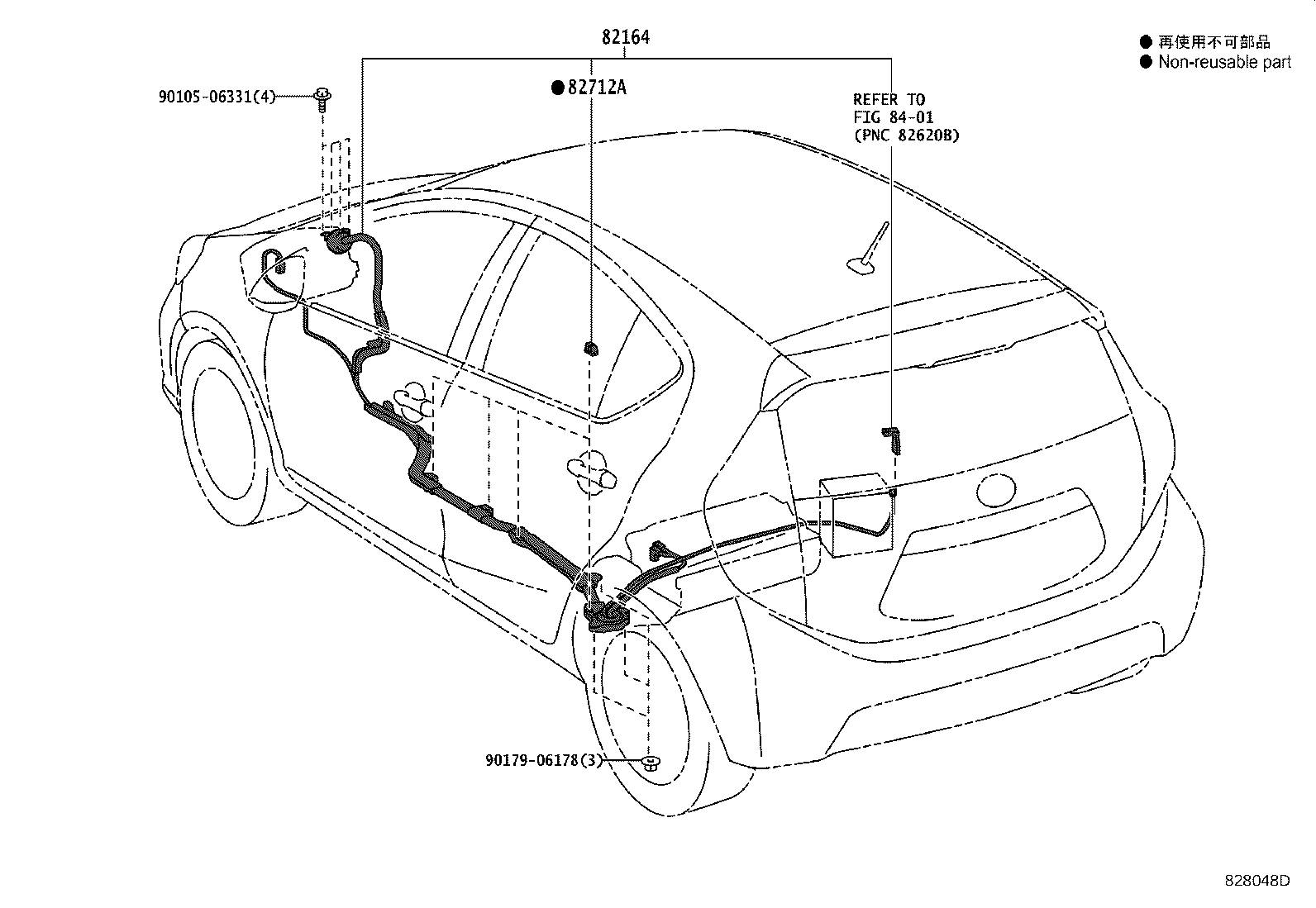

82164 Wire, Frame
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82191 Wire, Front Seat, RH
82345 Diode
82345A Diode
82345B Diode
82666A Holder, Connector NO.2
82712A Support, Wiring Harness
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82817 Protector, Wiring Harness, NO.1
82817D Protector, Wiring Harness, NO.5
82817E Protector, Wiring Harness, NO.6
82817F Protector, Wiring Harness, NO.7
82817G Protector, Wiring Harness, NO.8
82817N Protector, Wiring Harness, NO.13
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
