Toyota Prius C

2011-12 → 2021-06 · chassis NHP10 · catalogue 125410 · United States

Supported model Data version 2022-07
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

81 part groups · 8 illustrations

Illustrations

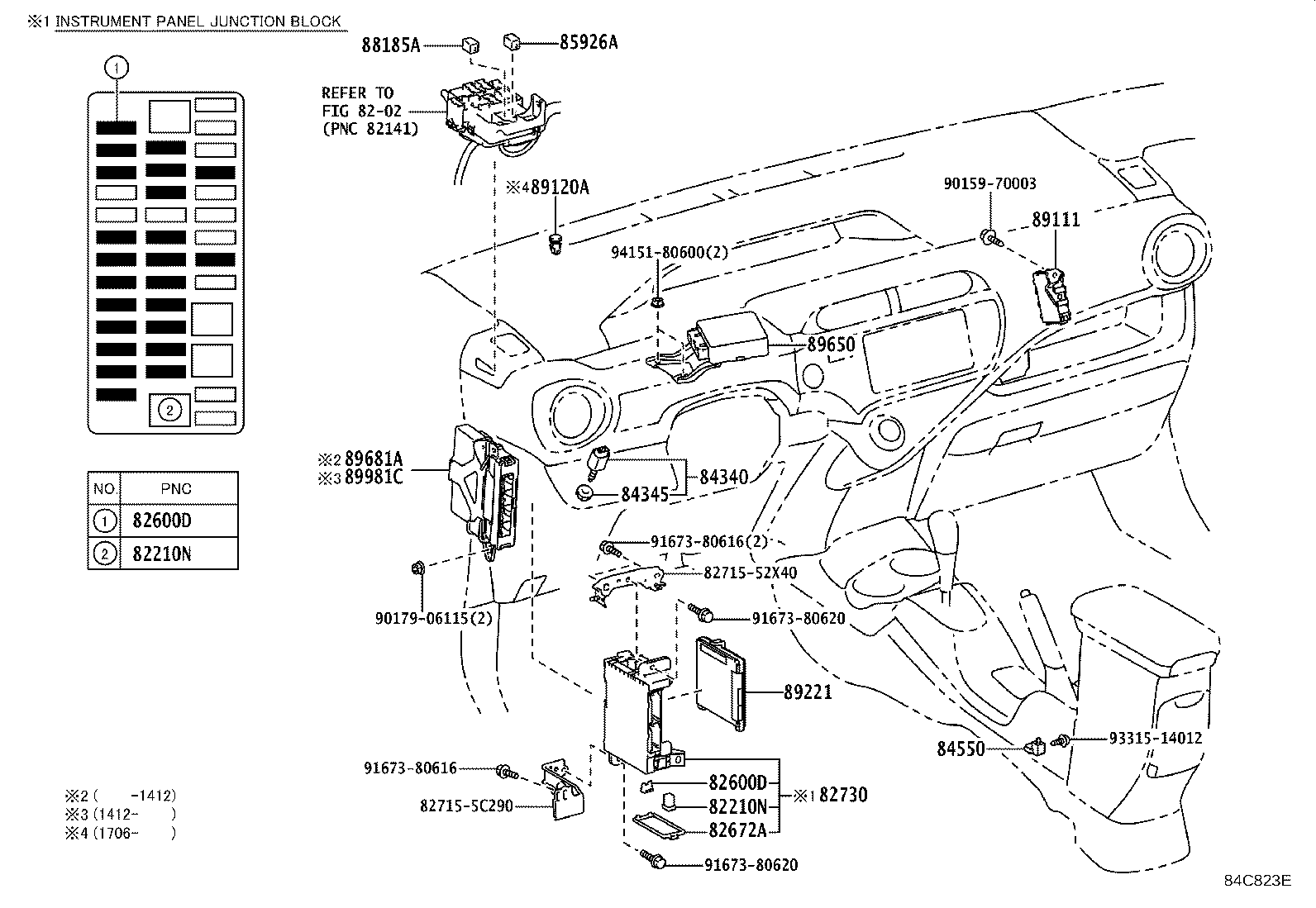

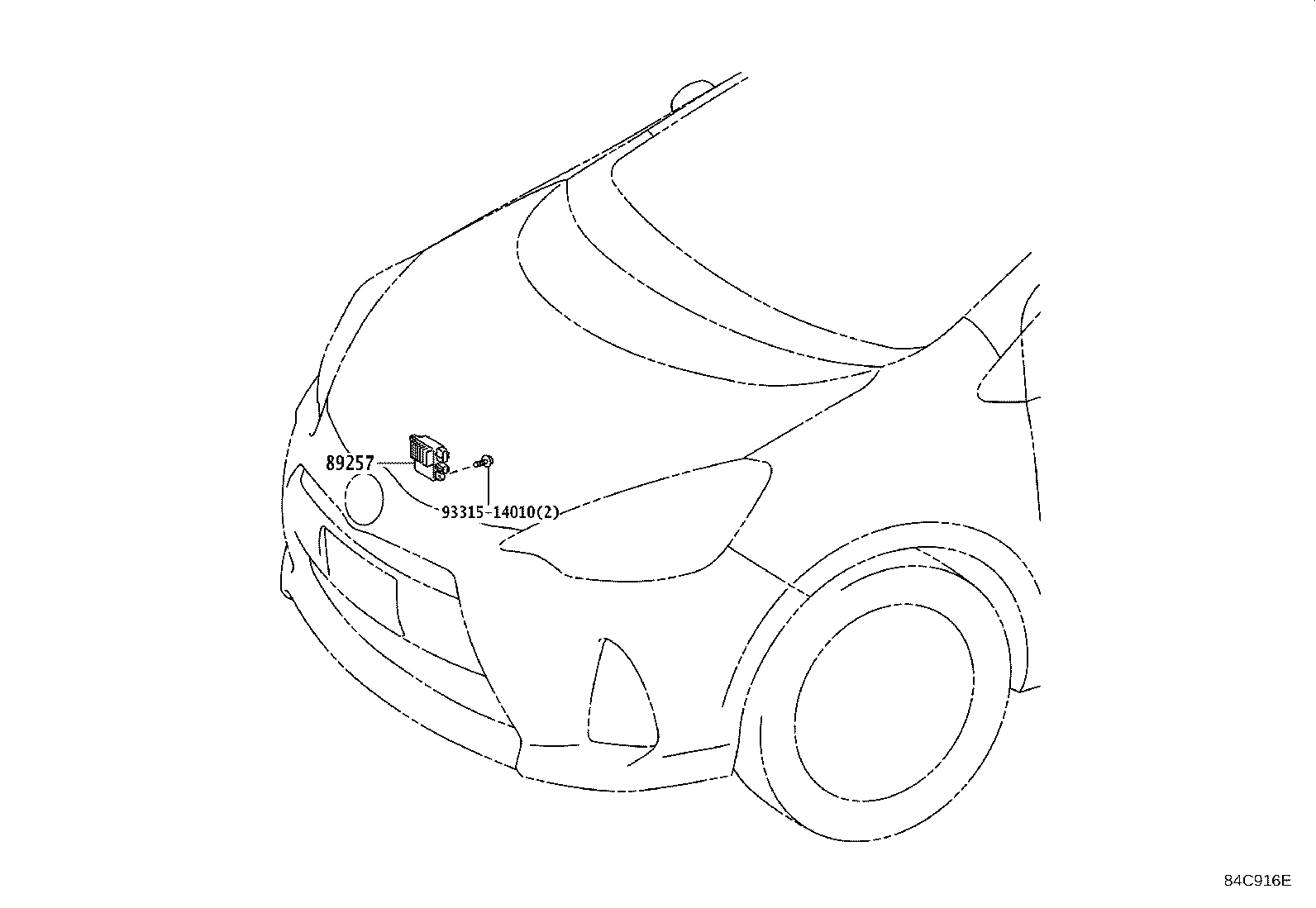

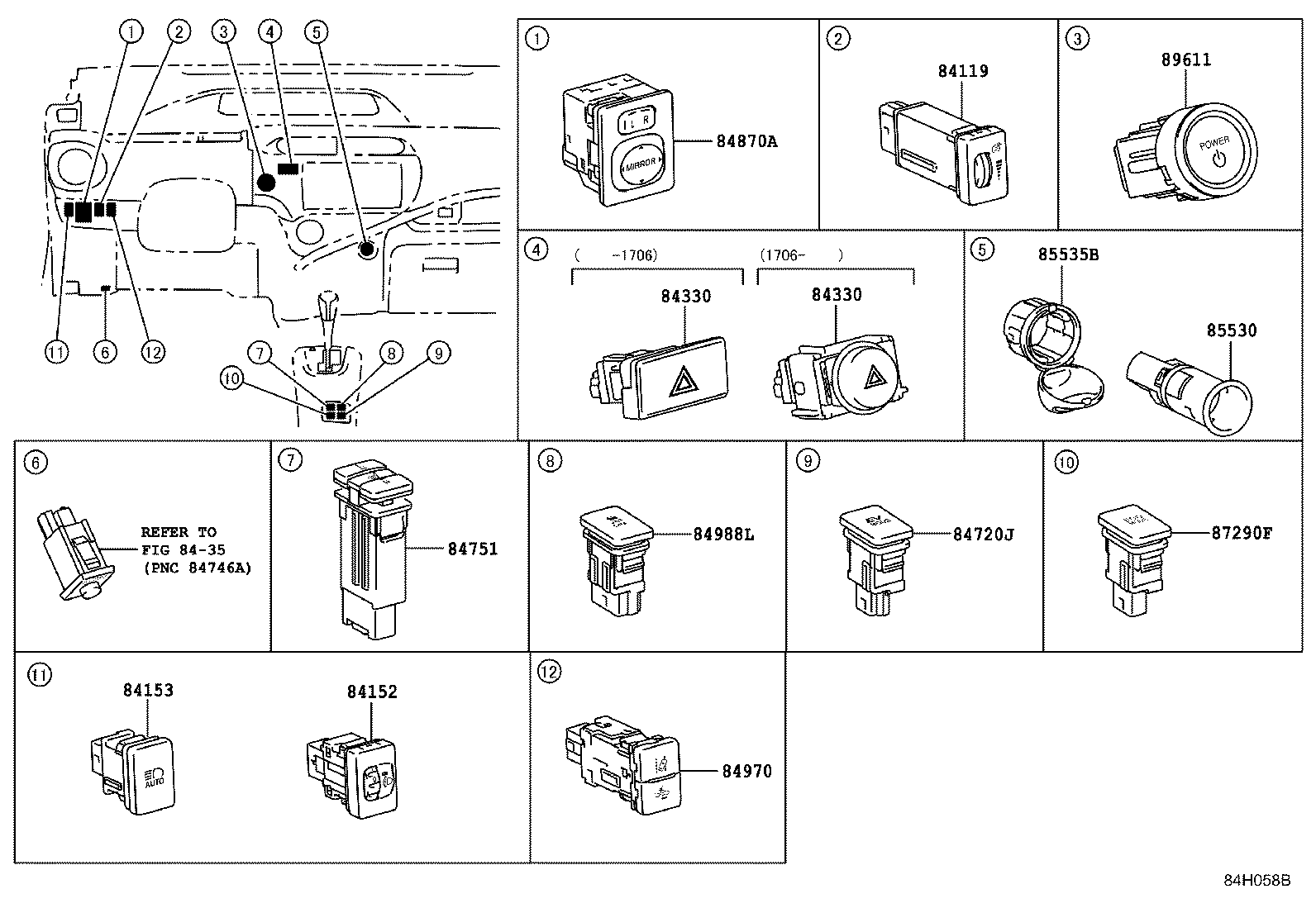

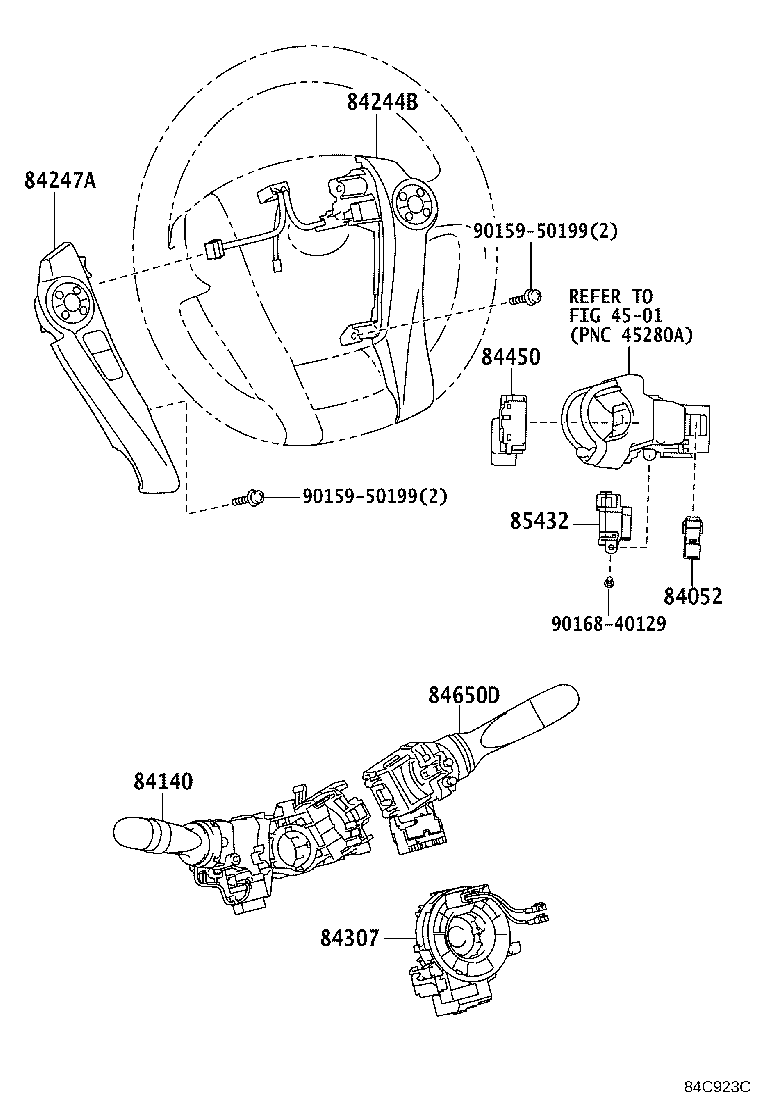

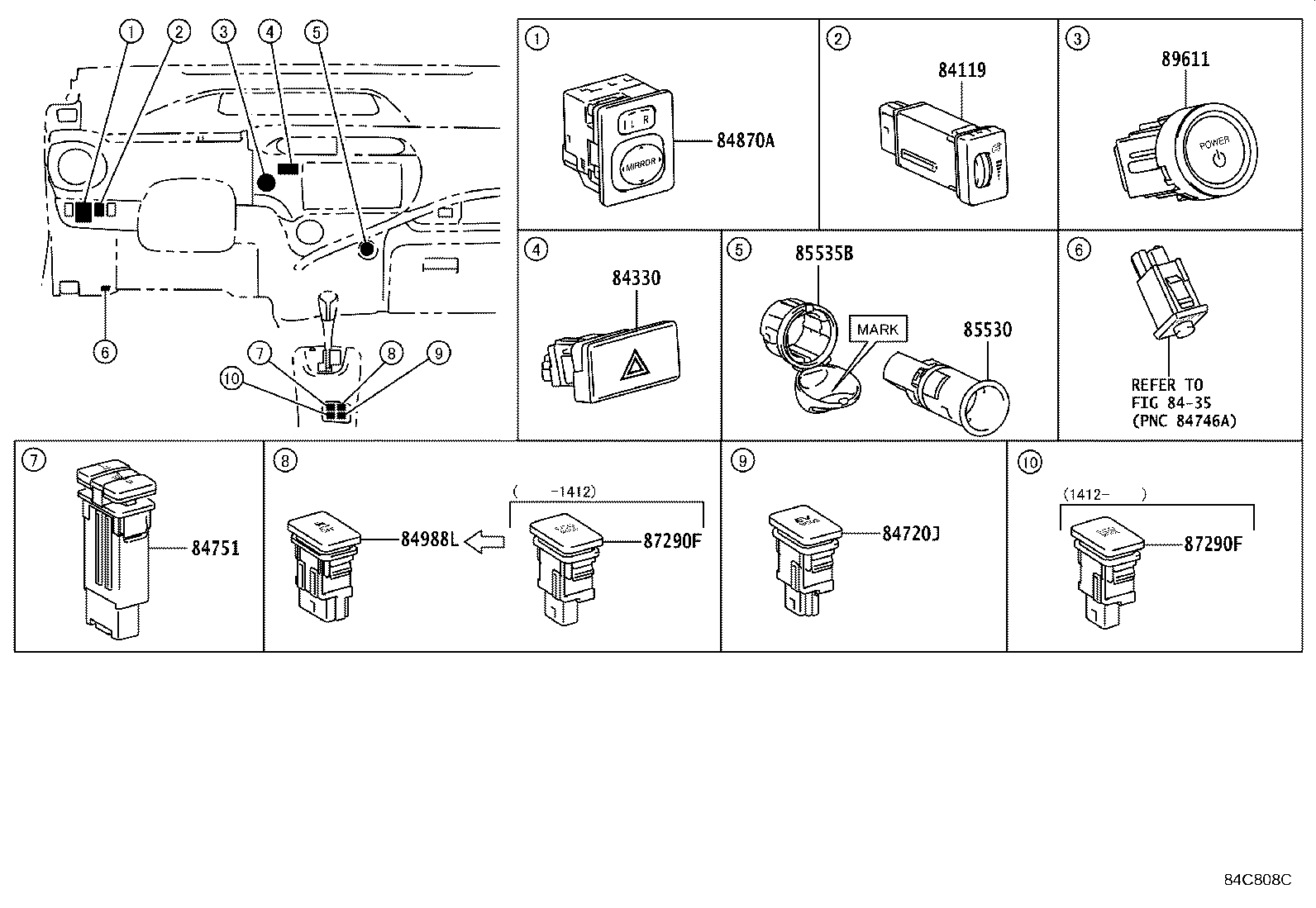

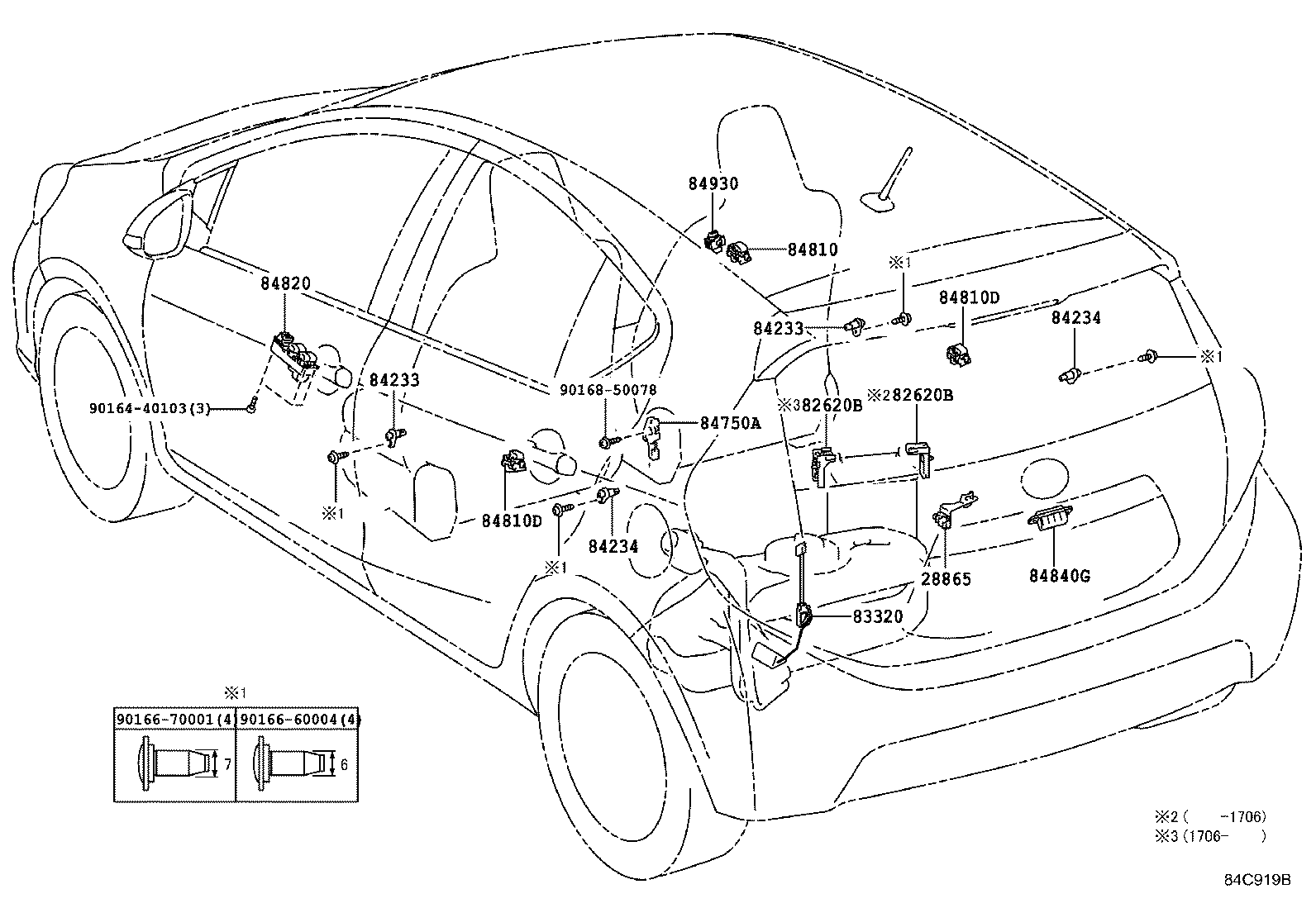

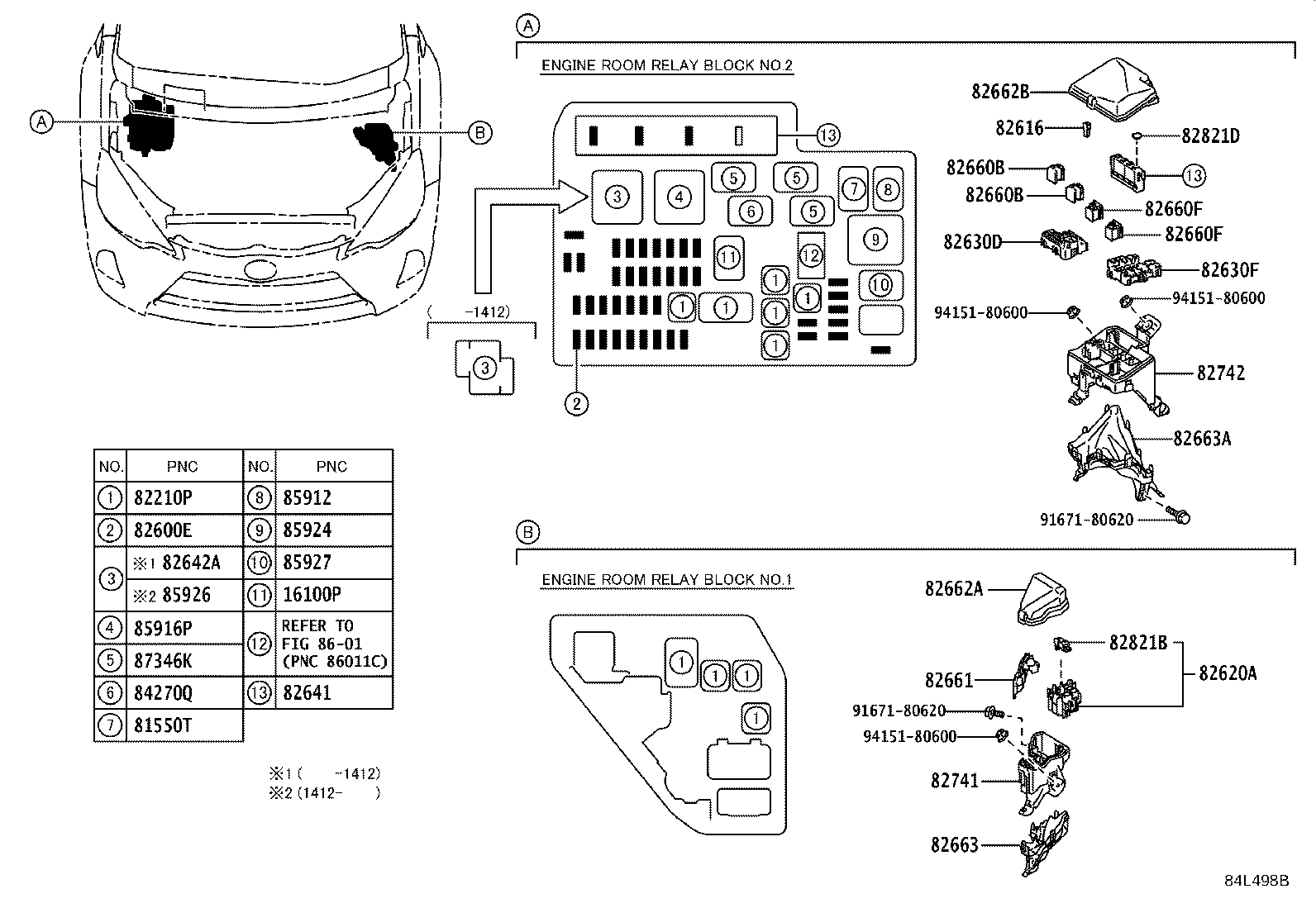

Figure 84C843 84C843 2011-12 → — Figure 84C916E 84C916E 2011-12 → — Figure 84L498B 84L498B 2011-12 → — Figure 84C823E 84C823E 2011-12 → — Figure 84C808C 84C808C 2011-12 → 2015-11 Figure 84H058B 84H058B 2015-11 → — Figure 84C923C 84C923C 2011-12 → — Figure 84C919B 84C919B 2011-12 → —

Part groups

PNCDescription
16100P Relay, Water Pump
28865 Sensor, Battery Thermometer
81550T Relay, Back UP Lamp
82210N Instrument Panel Fusible Link
82210P Engine Room Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82630D Holder, Fuse
82630F Holder, Fuse
82641 Relay, Integration NO.1
82642A Relay, Running Light
82660B Block Assy, Relay
82660F Block Assy, Relay
82661 Cover, Relay Block, NO.1
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82672A Cover, Junction Block
82730 Block Assy, Instrument Panel Junction
82741 Block, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82821B Cover, Connector
82821D Cover, Connector
83320 Gage Assy, Fuel Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
84052 Switch Assy, Un-lock Warning
84119 Rheostat, Light Control
84140 Switch Assy, Headlamp Dimmer
84152 Switch, Headlamp Leveling
84153 Switch, Auto High Beam
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84244B Switch, Steering Pad, RH
84247A Switch, Steering Pad, LH
84270Q Relay, Lamp Cut
84307 Cable Sub-assy, Spiral W/Sensor
84330 Switch Assy, Hazard Warning Signal
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84550 Switch Assy, Parking Brake
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84720J Switch Assy, Pattern Select
84750A Switch Assy, Seat
84751 Switch, Seat Heater
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840G Switch Assy, Back Door Opener
84870A Switch Assy, Outer Mirror
84930 Switch Assy, Door Control
84970 Switch Assy, Combination
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85530 Socket Assy, Power Outlet, NO.1
85535B Cover, Power Outlet Socket, NO.1
85912 Relay, Defogger
85916P Relay, Headlamp
85924 Relay, Ignition Control
85926 Relay, Headlamp Dimmer
85926A Relay, Headlamp Day Dim Light
85927 Relay, Cooling Fan
87290F Switch Assy, Eco
87346K Relay, Ptc Heater
88185A Relay, Pre-collision City Heater
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89257 Computer, Cooling Fan
89451A Sensor, Shift Lever Position
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
89981C Computer, Hybrid Vehicle Control
